NSN 5340-00-817-5328 MS21919WH13, AS21919WH13 , TYPE45
Product Details | LOOP CLAMP
5340-00-817-5328 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21919WH13, AS21919WH13 , TYPE45 , 21000159, 2100-0159 , 21MEGOHMSPORM20PCT, 2-1MEGOHMSPORM20PCT , 4701MEGOHMSPORM20PCT, 470-1MEGOHMSPORM20PCT , 5340-00-817-5328, 00-817-5328, 5340008175328, 008175328
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-817-5328 | 17532 ( CLAMP, LOOP ) |

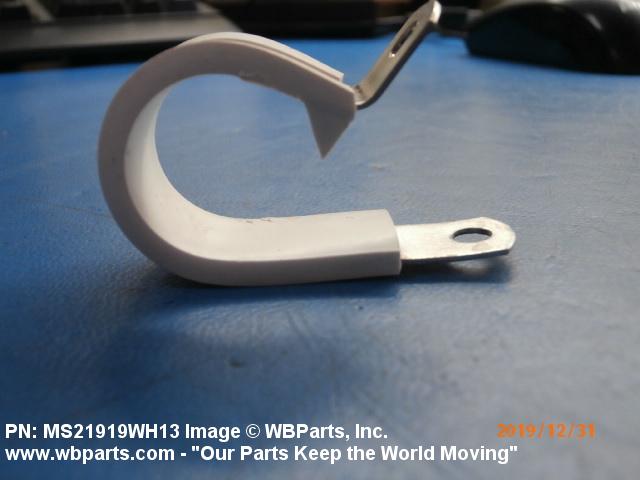

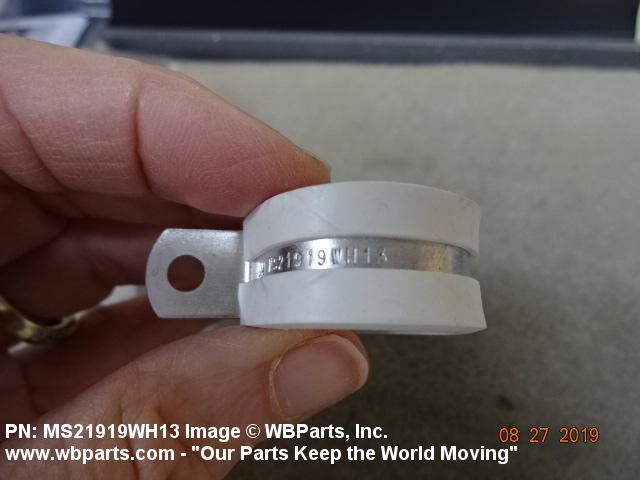

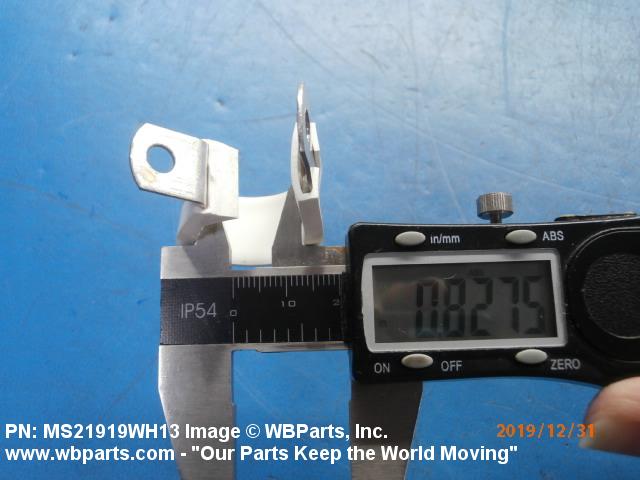

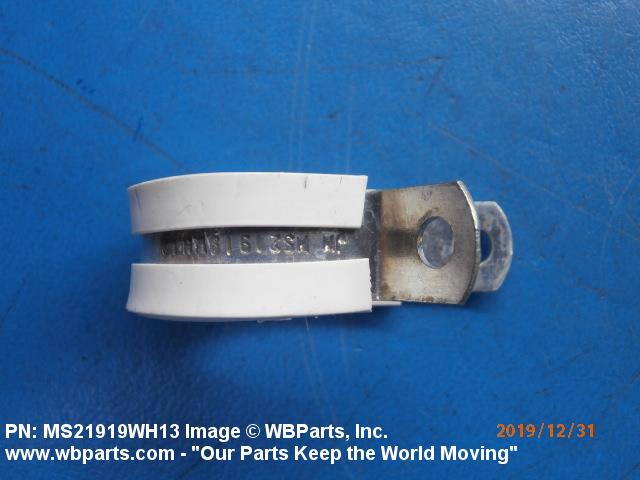

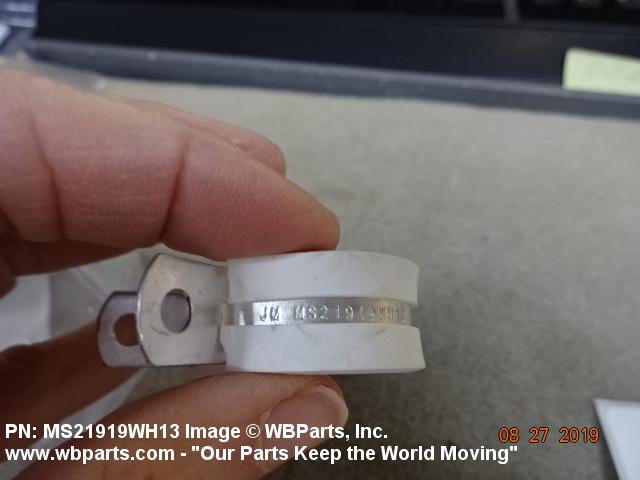

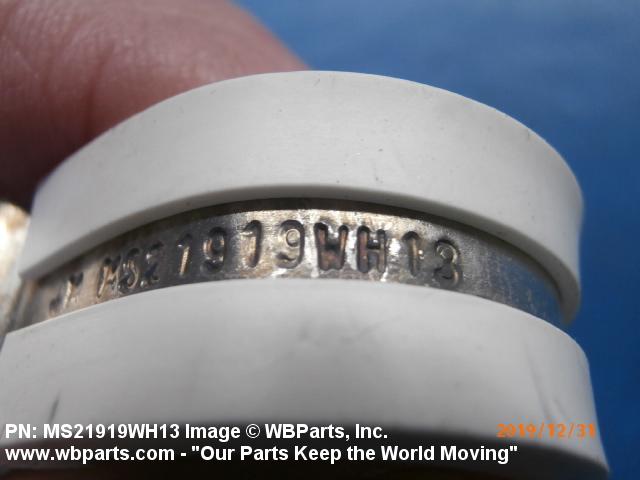

Drawings & Photos | NSN 5340-00-817-5328
Demand History | NSN 5340-00-817-5328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-817-5328 | 2023-07-190 | 1 | DIBBS |
| 5340-00-817-5328 | 2020-12-344 | 150 | DIBBS |
| 5340-00-817-5328 | 2020-10-294 | 3 | DIBBS |
| 5340-00-817-5328 | 2020-05-128 | 1 | DIBBS |
| 5340-00-817-5328 | 2020-05-128 | 8 | DIBBS |
| 5340-00-817-5328 | 2020-03-68 | 10 | DIBBS |
| 5340-00-817-5328 | 2020-03-61 | 8 | DIBBS |
| 5340-00-817-5328 | 2020-02-42 | 13 | DIBBS |
| 5340-00-817-5328 | 2020-01-23 | 1 | DIBBS |
| 5340-00-817-5328 | 2020-01-23 | 19 | DIBBS |
| 5340-00-817-5328 | 2019-12-335 | 10 | DIBBS |
| 5340-00-817-5328 | 2019-11-316 | 55 | DIBBS |
| 5340-00-817-5328 | 2019-10-295 | 36 | DIBBS |
| 5340-00-817-5328 | 2019-10-293 | 66 | DIBBS |
| 5340-00-817-5328 | 2019-10-280 | 1 | DIBBS |
| 5340-00-817-5328 | 2019-09-253 | 14 | DIBBS |
| 5340-00-817-5328 | 2019-09-253 | 78 | DIBBS |
| 5340-00-817-5328 | 2019-07-202 | 17 | DIBBS |
| 5340-00-817-5328 | 2019-07-183 | 1 | DIBBS |
| 5340-00-817-5328 | 2019-07-183 | 62 | DIBBS |
| 5340-00-817-5328 | 2019-05-122 | 1 | DIBBS |
| 5340-00-817-5328 | 2019-04-118 | 1 | DIBBS |
| MS21919WH13 | 2017-12-355 | 50 | us |
| 5340-00-817-5328 | 2014-07-202 | 3 | DIBBS |
| 5340-00-817-5328 | 2014-07-191 | 3 | DIBBS |
| MS21919WH13 | 2012-11-310 | 50 | |
| 5340-00-817-5328 | 2012-03-86 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-817-5328
Technical Data | NSN 5340-00-817-5328
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1017 BAND RUBBER SYNTHETIC CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-636,COND 4 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| SURFACE TREATMENT | CADMIUM BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

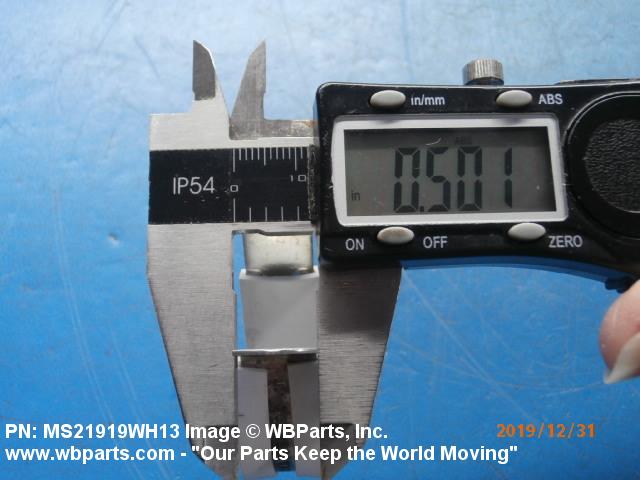

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

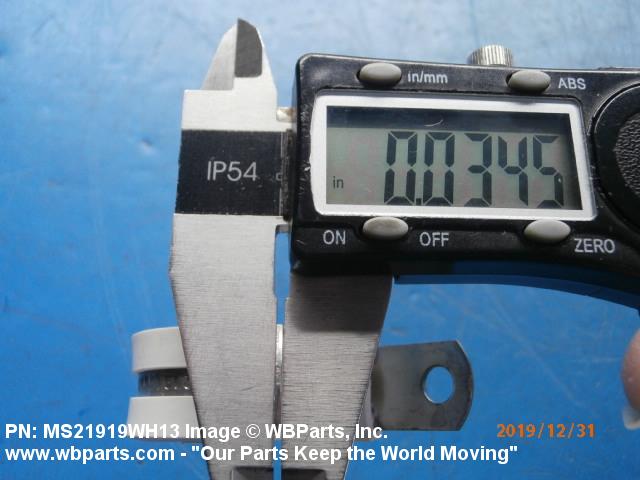

| MATERIAL THICKNESS | 0.030 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |

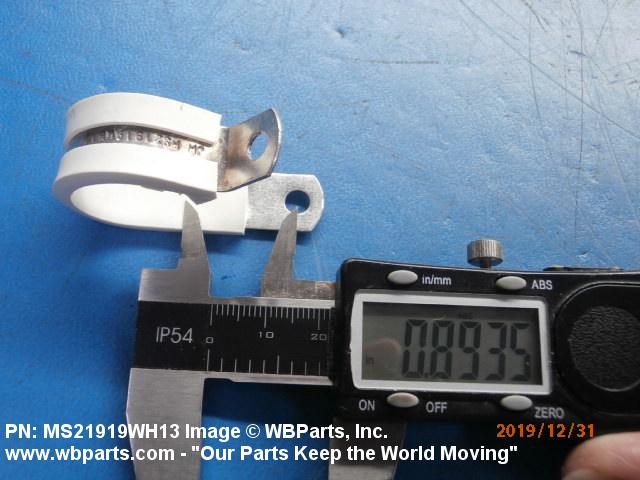

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.858 INCHES NOMINAL |

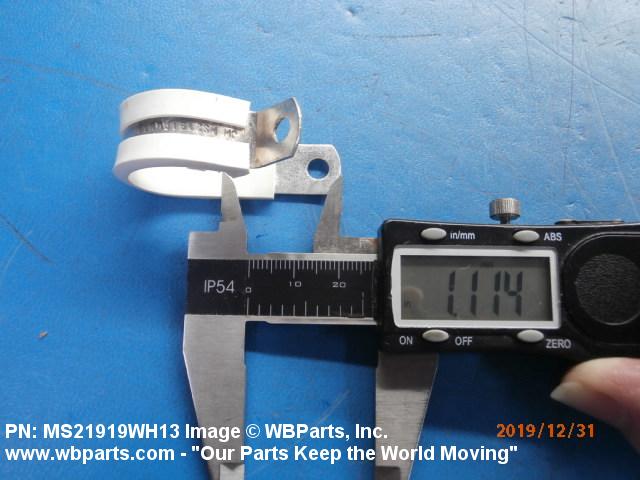

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.076 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.798 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

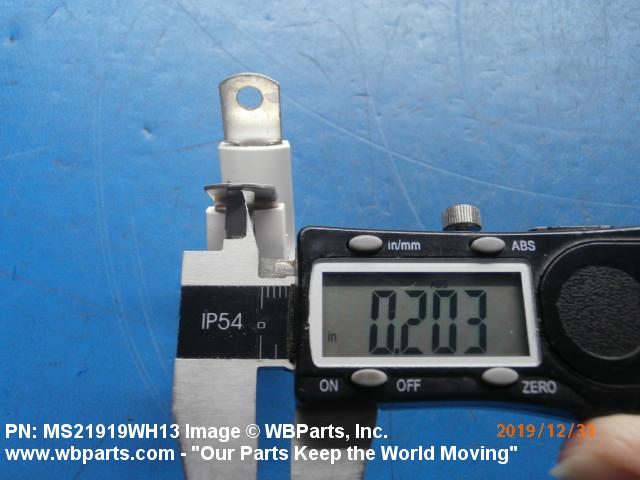

| DIAMETER | 0.204 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT |
| MANUFACTURERS CODE | 96906 |

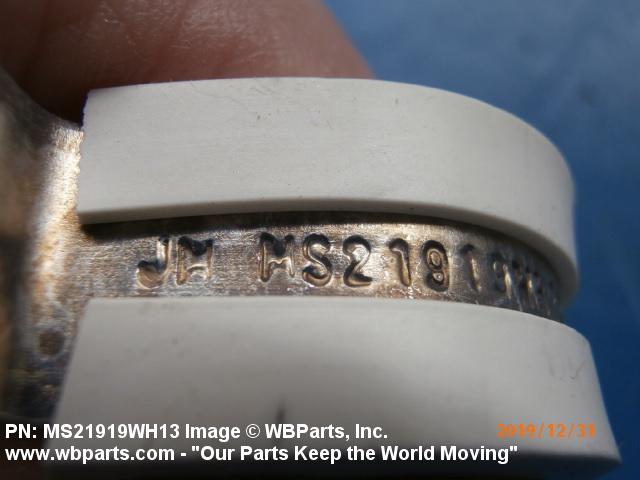

| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21919WH13 |
Restrictions/Controls & Freight Information | NSN 5340-00-817-5328
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-00-817-5328
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | E | Electronics MaterielDefense Electronics Supply Center (DESC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
