NSN 5340-00-810-0098 FFH00111, FF-H-00111, FF-H-00111 TY1305
Product Details | BOW HANDLE
5340-00-810-0098 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: FFH00111, FF-H-00111, FF-H-00111 TY1305, FFH00111TY1305, 5340-00-810-0098, 00-810-0098, 5340008100098, 008100098
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-810-0098 | 20350 ( HANDLE, BOW ) |
Drawings & Photos | NSN 5340-00-810-0098
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-810-0098
Technical Data | NSN 5340-00-810-0098
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | LACQUER OVERALL |
| COLOR | CLEAR HANDLE |

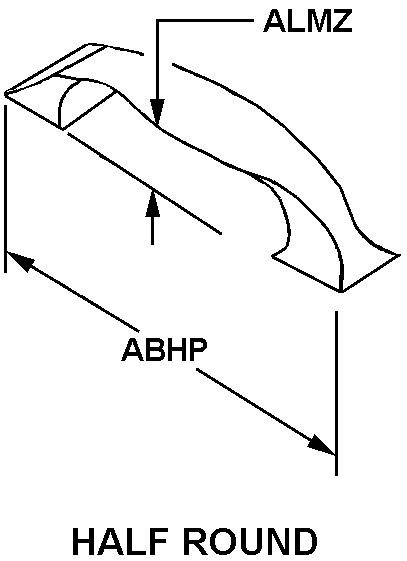

| STYLE DESIGNATOR | B7 HALF ROUND |
| OVERALL LENGTH | 4.062 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.875 INCHES NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| SPECIAL FEATURES | FURNISHED WITH SCREW,WASHER HEAD 2 |
| NONDEFINITIVE SPEC/STD DATA | 1305 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-H-00111 |
Restrictions/Controls & Freight Information | NSN 5340-00-810-0098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
