NSN 5340-00-807-7084 FFH00111, FF-H-00111, FF-H-00111 TYF1275C
Product Details | BOW HANDLE
5340-00-807-7084 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: FFH00111, FF-H-00111, FF-H-00111 TYF1275C, FFH00111TYF1275C, 5340-00-807-7084, 00-807-7084, 5340008077084, 008077084
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-807-7084 | 20350 ( HANDLE, BOW ) |
Drawings & Photos | NSN 5340-00-807-7084
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-807-7084
Technical Data | NSN 5340-00-807-7084
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| COLOR | CLEAR HANDLE |

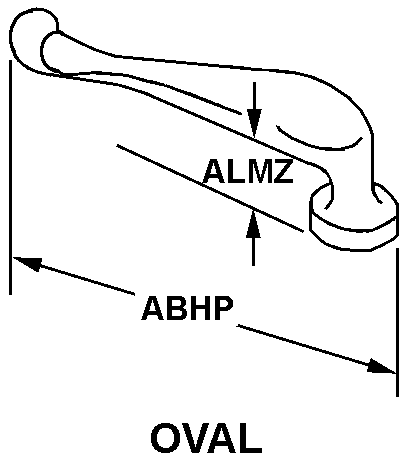

| STYLE DESIGNATOR | B33 OVAL |
| OVERALL LENGTH | 6.500 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.500 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 4 |
| NONDEFINITIVE SPEC/STD DATA | F1275C TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SURFACE TREATMENT AND LOCATION |
| III SUPPLEMENTARY FEATURES | WITH DRILLED HOLES |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-H-00111 |
Restrictions/Controls & Freight Information | NSN 5340-00-807-7084
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
