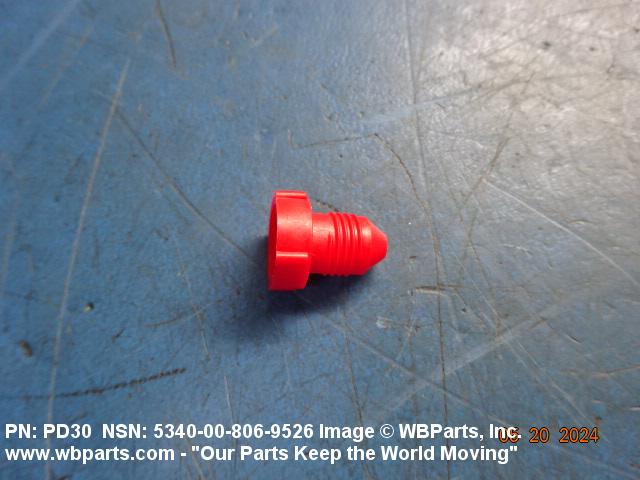

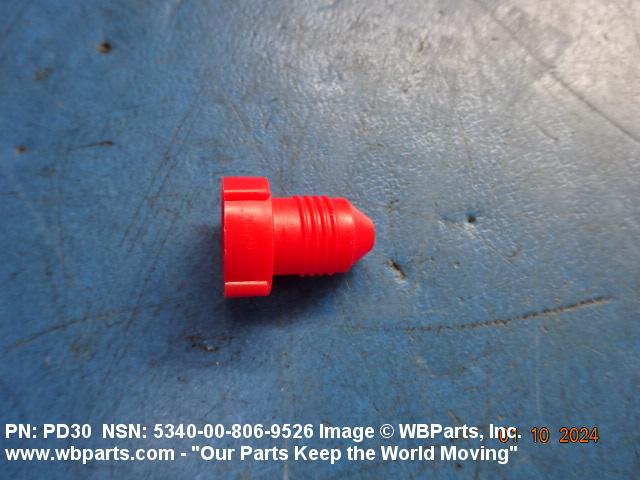

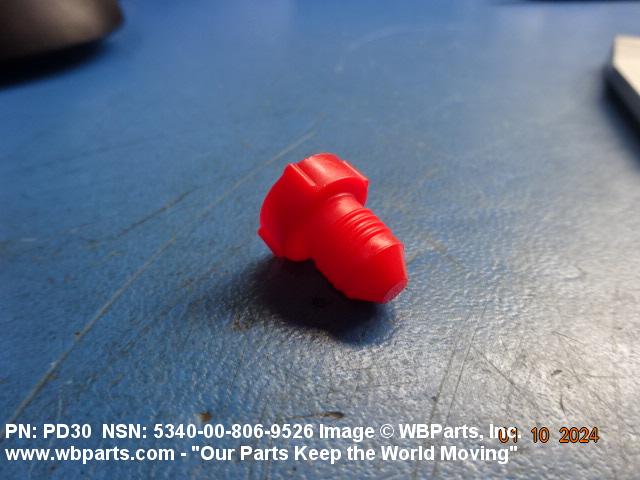

Product Details | DUST AND MOISTURE SEAL PROTECTIVE PLUG

5340-00-806-9526 An item specifically designed to fit into the opening(s) of various items to provide mechanical protection and/or prevent the entrance of foreign matter during painting, shipping storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes PLUG (as modified) and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: M5501/1-R3, M55011R3, N450PD30, PD-30, MIL-C-5501/1, MILC55011, PD30, 870715, 87071500, 870715-00, 952072, 95207-2, 5340-00-806-9526, 00-806-9526, 5340008069526, 008069526

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-806-9526

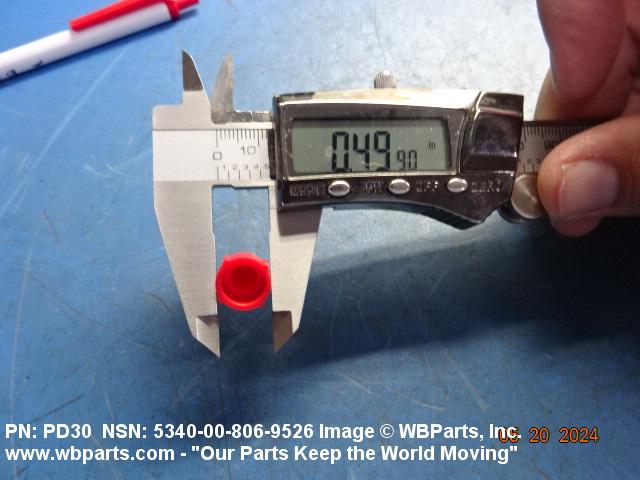

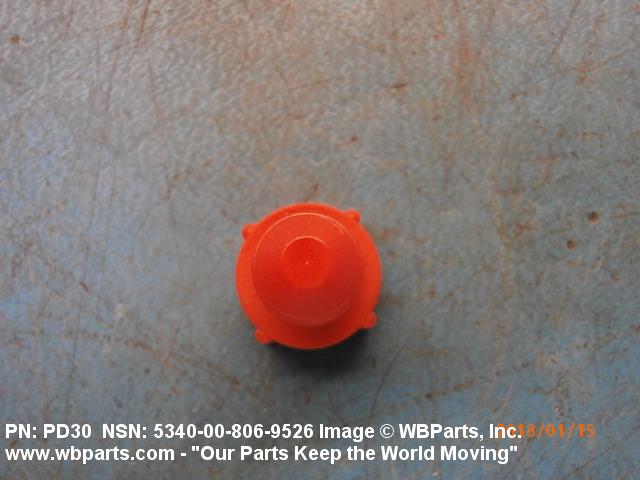

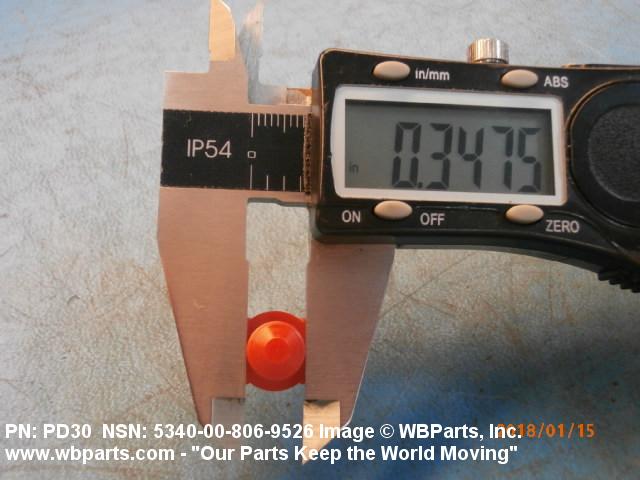

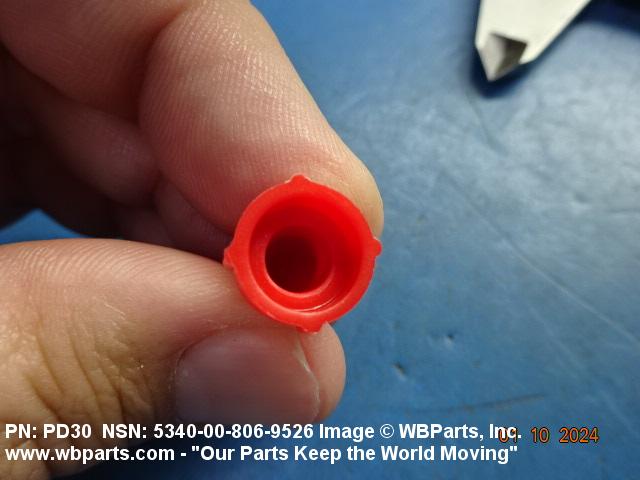

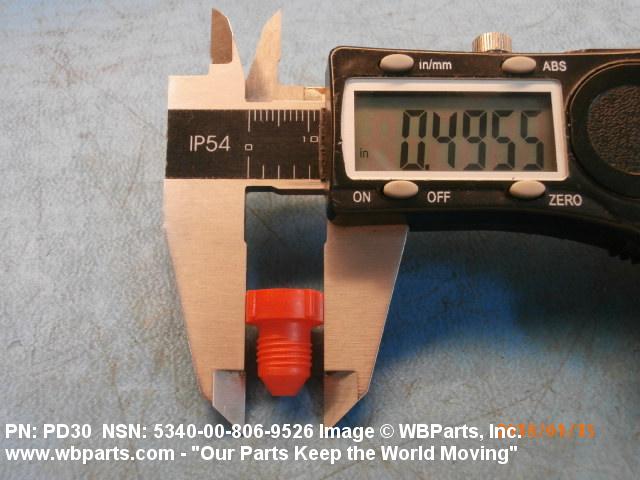

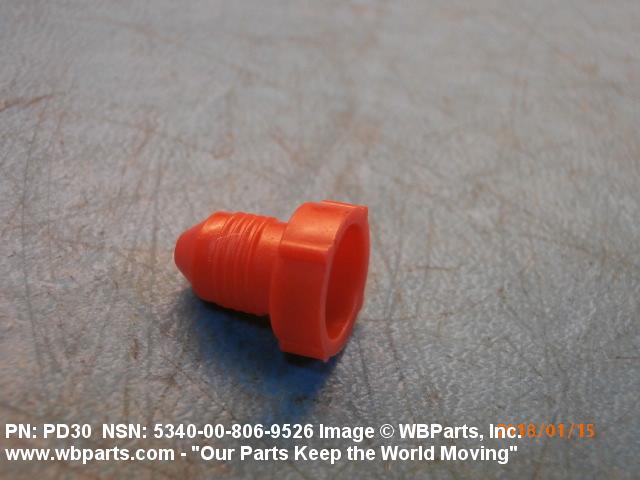

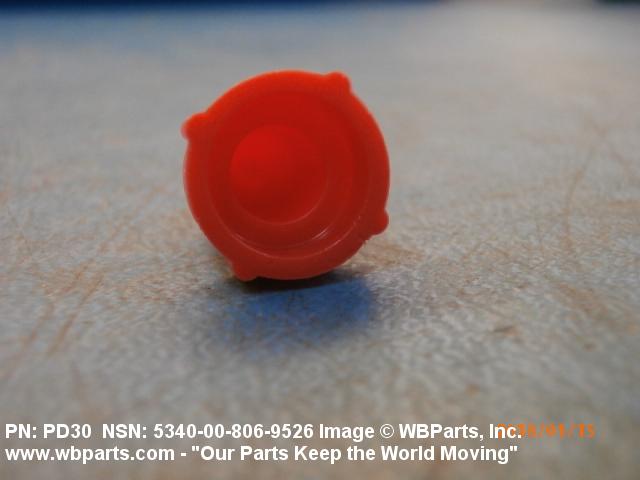

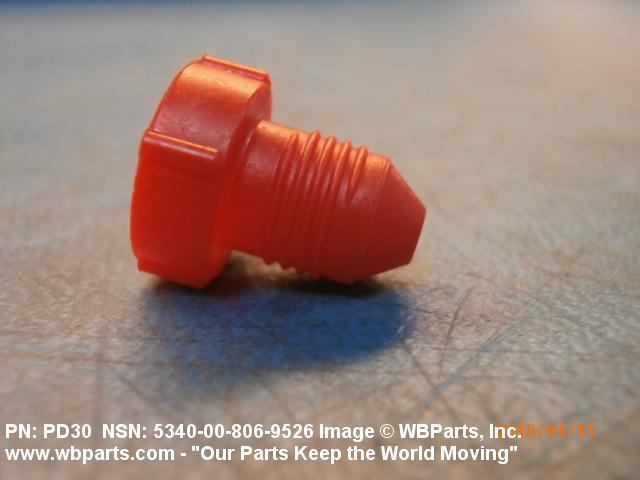

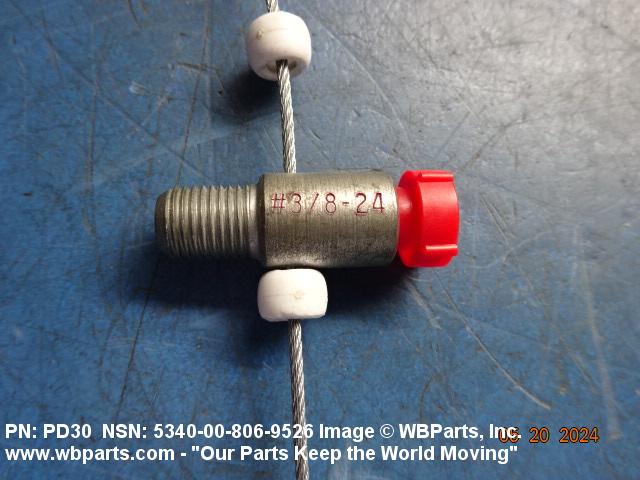

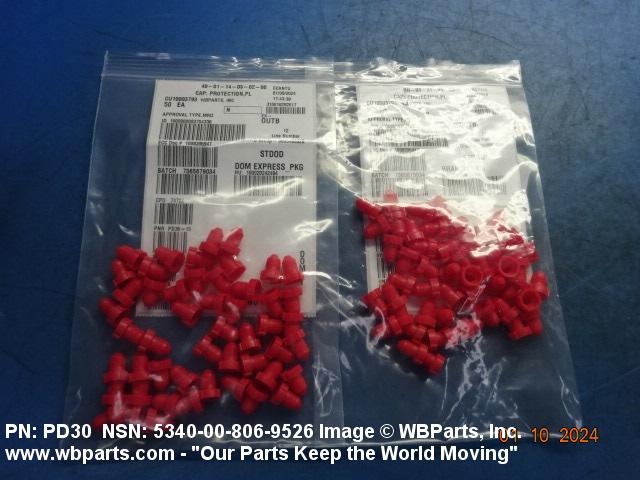

Drawings & Photos | NSN 5340-00-806-9526


Demand History | NSN 5340-00-806-9526

Part Number Request Date QTY Origin
5340-00-806-9526 2024-05-128 2 us
5340-00-806-9526 2024-01-04 100 us
5340-00-806-9526 2020-03-78 200 US
5340-00-806-9526 2019-05-121 1 Korea
5340-00-806-9526 2018-09-264 100 United Kingdom
5340-00-806-9526 2018-08-242 1 DIBBS
5340-00-806-9526 2018-08-219 100 United Kingdom
PD30 2017-10-304 100 Norway
PD30 2015-06-168 144 United States
PD30 2012-06-163 100 TT

Cross Reference | NSN 5340-00-806-9526

Part Number Cage Code Manufacturer
870715 19203 PICATINNY ARSENAL
870715-00 32345 DEFENSE REDUCTION AGENCY
95207-2 11599 TRIUMPH ENGINE CONTROL SYSTEMS, LLC
M5501/1-R3 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-5501/1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
N450PD30 F2521 PLASTIFRANCE
PD-30 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
PD30 03350 GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
PD30 1L397 GKS INC
PD30 99017 CAPLUGS LLC DBA MOKON DIV CAPLUGS
PD30 F2521 PLASTIFRANCE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-806-9526

Technical Data | NSN 5340-00-806-9526

Characteristic Specifications
MATERIAL PLASTIC, POLYETHYLENE
DESIGN TYPE THREADED

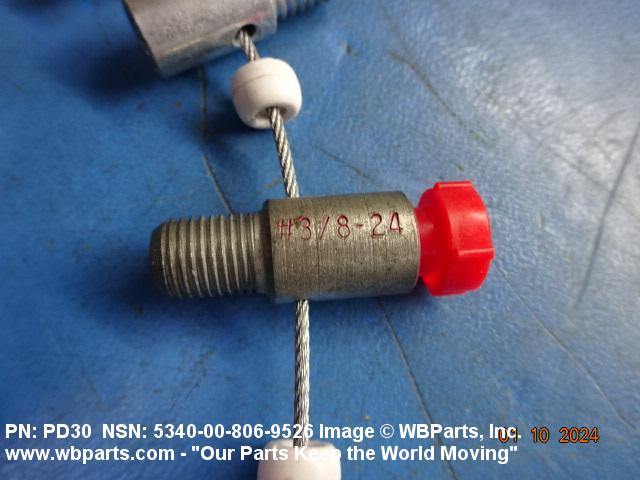

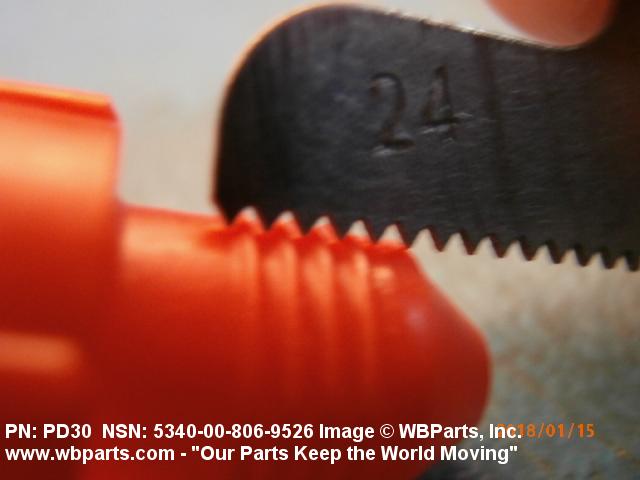

THREAD SIZE AND SERIES/TYPE DESIGNATOR 3/8-24 UNF
THREAD CLASS 2A

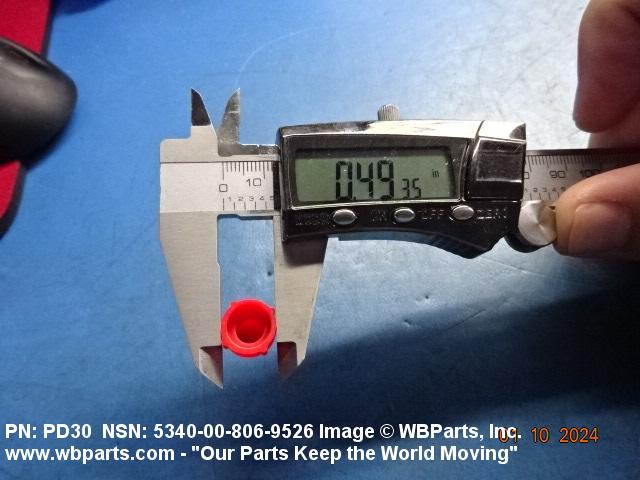

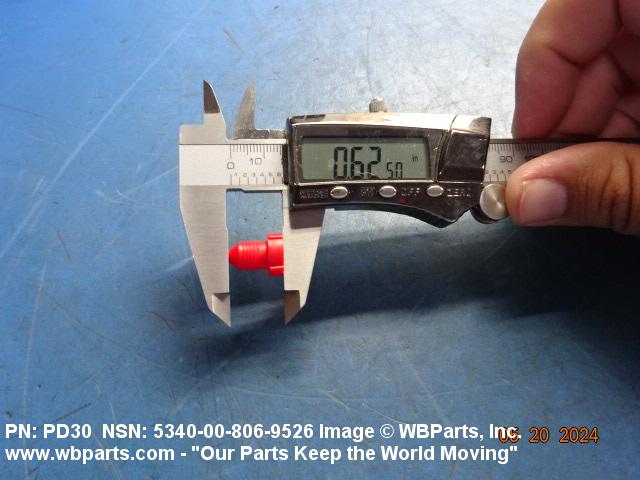

OVERALL DIAMETER 0.500 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
BEVELED SEAT NOT INCLUDED
ATTACHED GASKET NOT INCLUDED
SHOULDER NOT INCLUDED
DRIVE TYPE SERRATED
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-5501/1
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M5501/1-R3

Restrictions/Controls & Freight Information | NSN 5340-00-806-9526

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-00-806-9526

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
