NSN 5340-00-787-6923 MS924301, MS9243-01, 00-787-6923
Product Details | ACCESS COVER
5340-00-787-6923 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: MS924301, MS9243-01, 5340-00-787-6923, 00-787-6923, 5340007876923, 007876923
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-787-6923 | 29785 ( COVER, ACCESS ) |

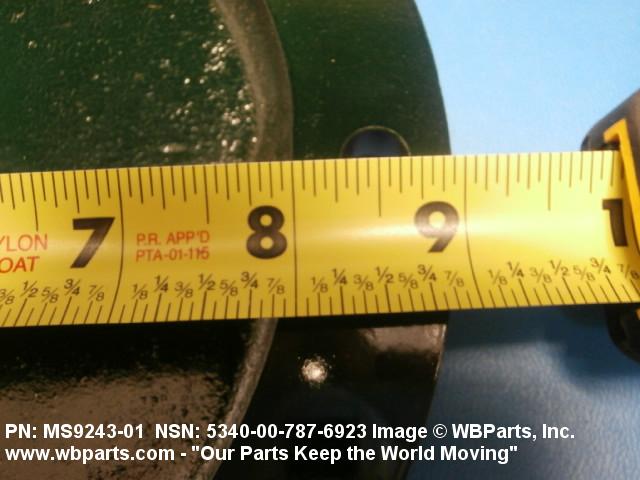

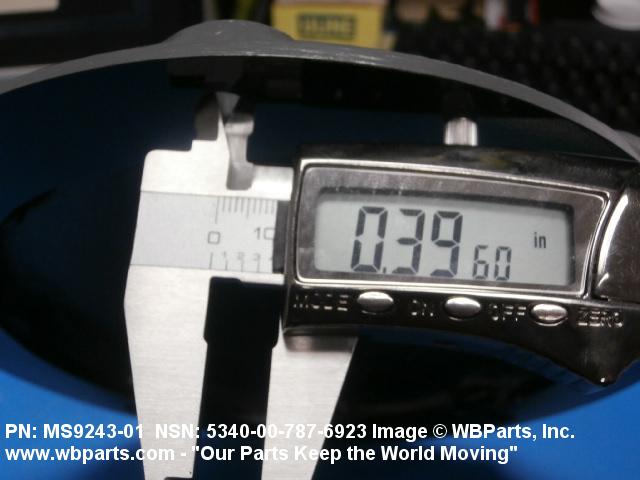

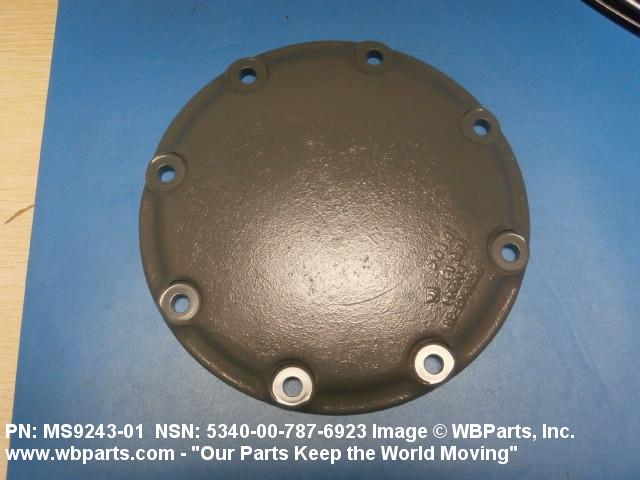

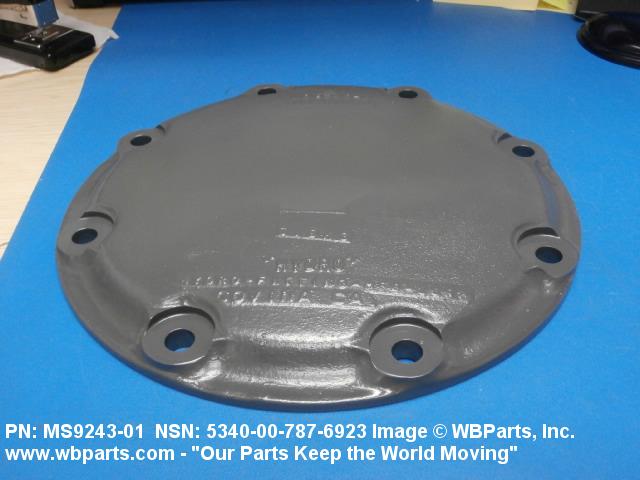

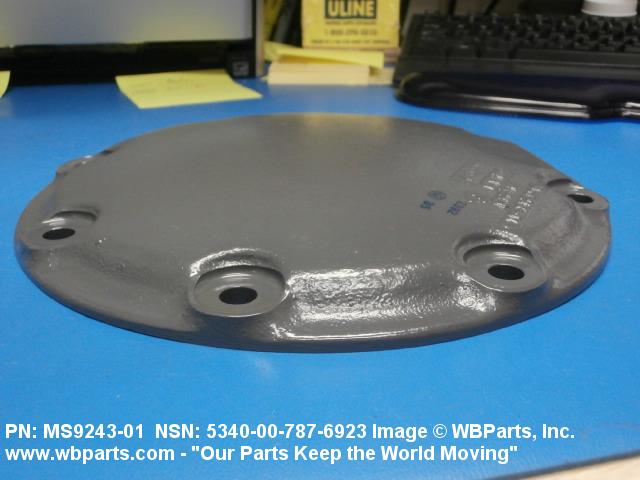

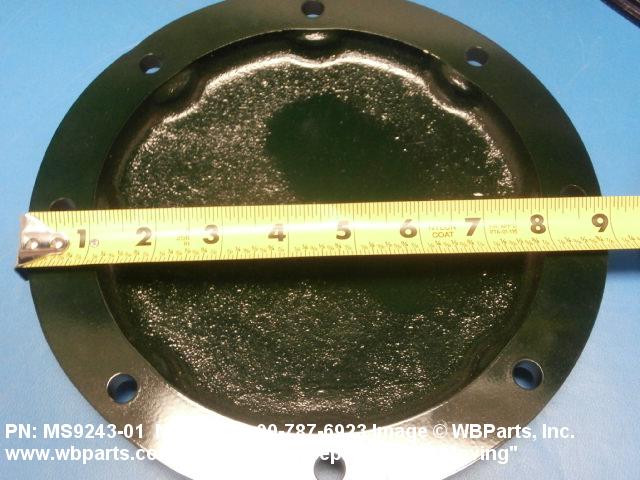

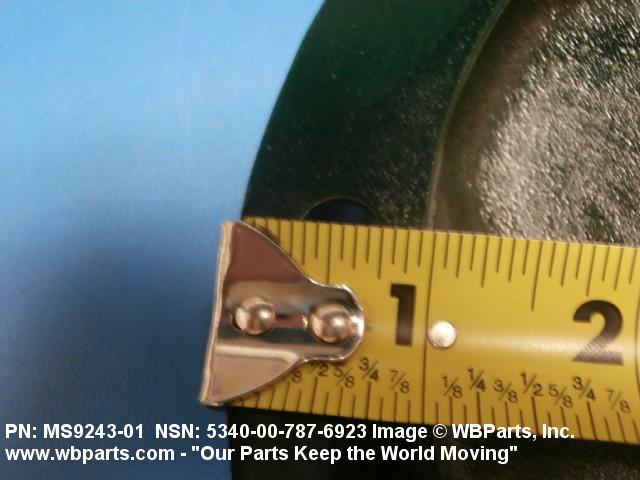

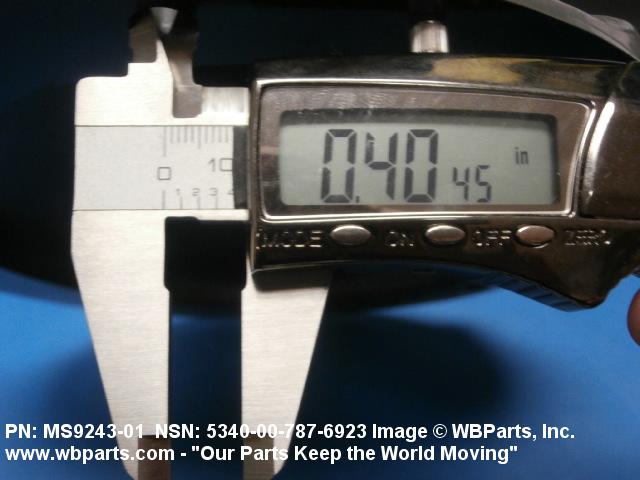

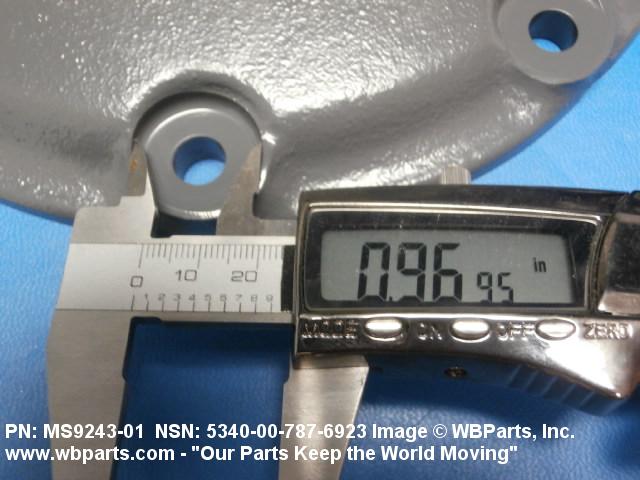

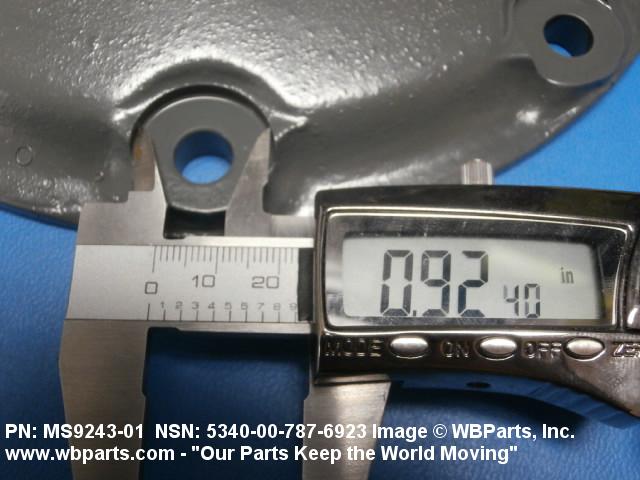

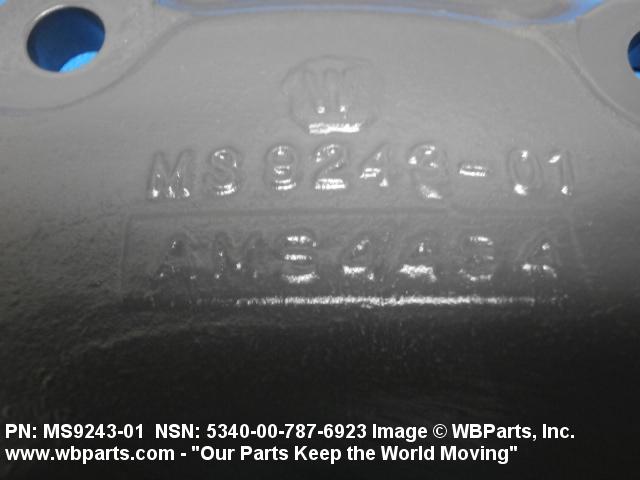

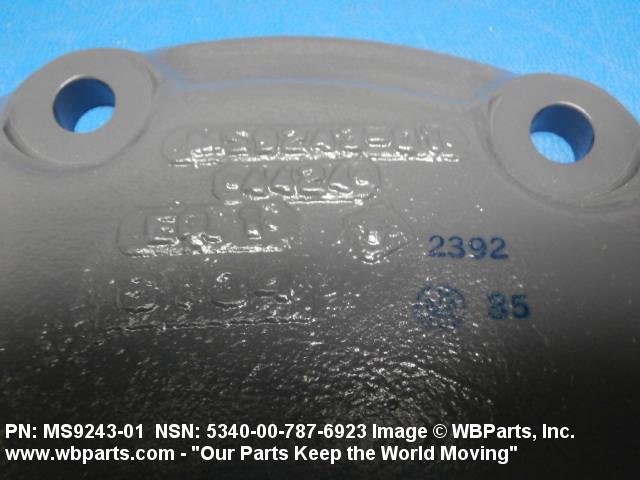

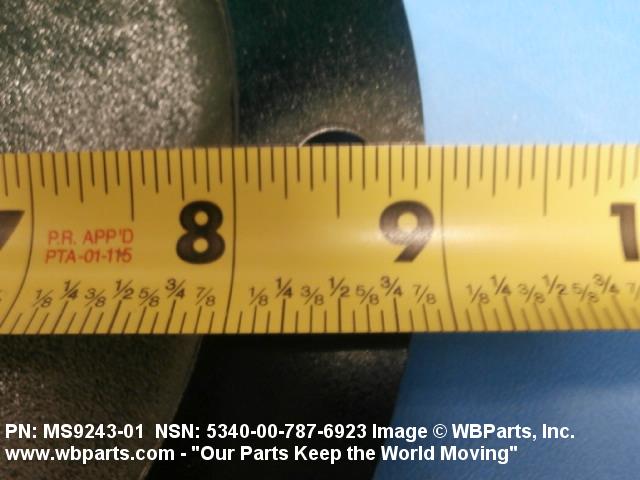

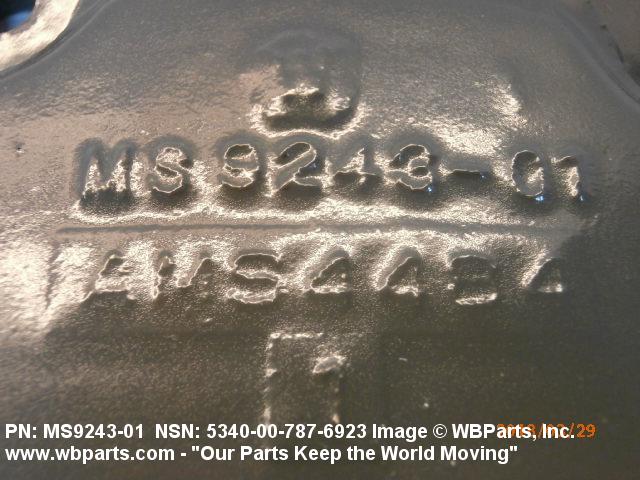

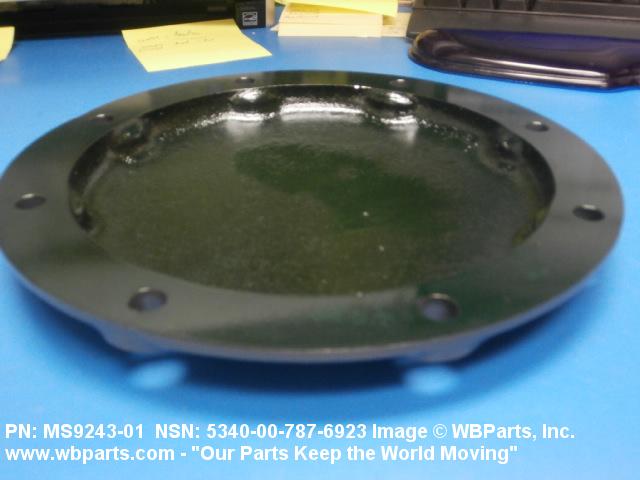

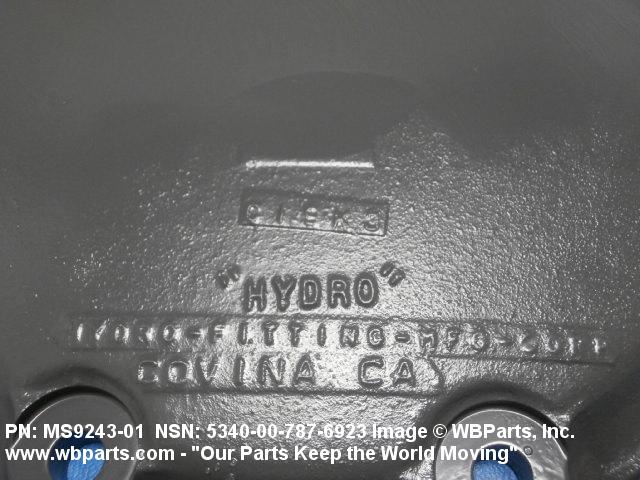

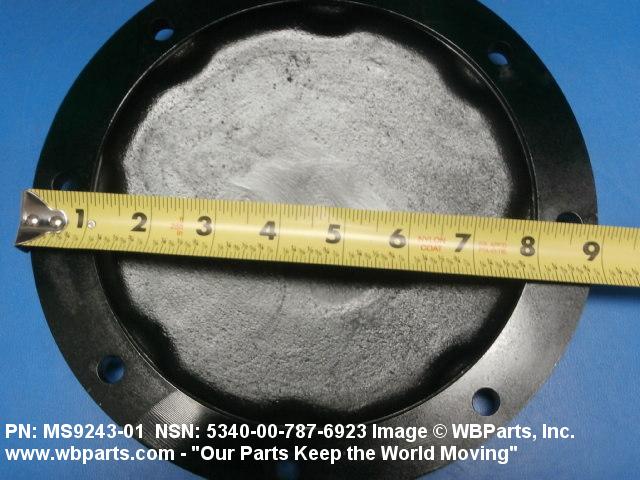

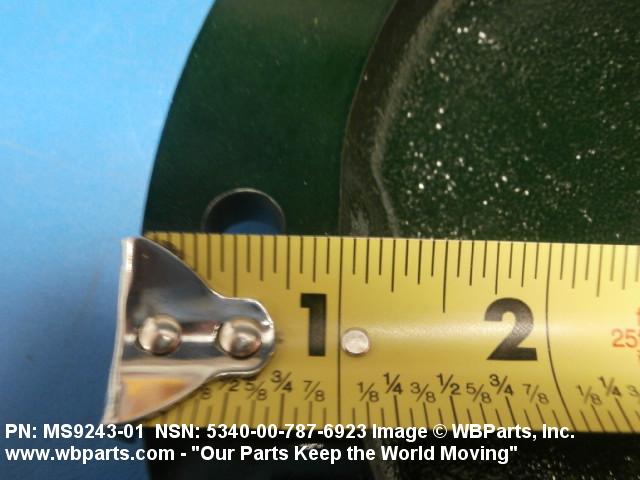

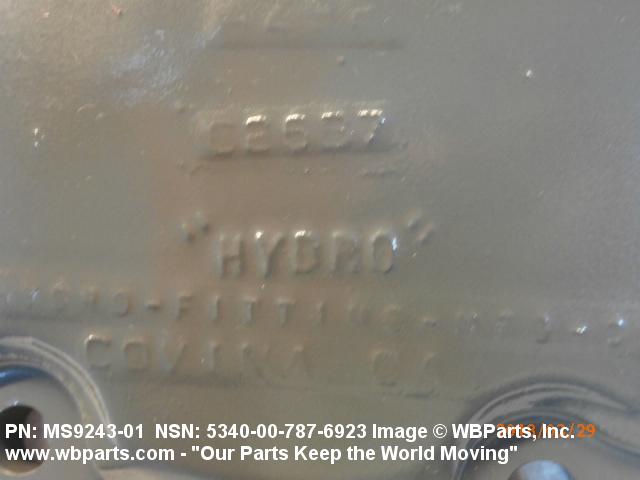

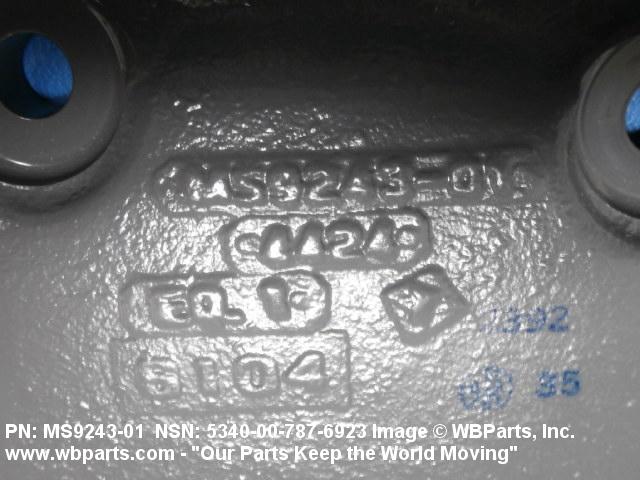

Drawings & Photos | NSN 5340-00-787-6923
Demand History | NSN 5340-00-787-6923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-787-6923 | 2021-07-186 | 2 | us |
| MS924301 | 2021-03-70 | 4 | France |
| MS924301 | 2021-02-56 | 2 | United States |
| 5340-00-787-6923 | 2021-02-55 | 2 | FR |
| MS924301 | 2020-02-52 | 2 | United States |
| MS924301 | 2019-07-192 | 15 | United States |
| MS924301 | 2019-07-186 | 7 | United States |
| MS924301 | 2019-05-133 | 3 | United States |
| MS924301 | 2018-09-247 | 2 | United States |
| MS924301 | 2018-03-86 | 8 | United States |
| MS924301 | 2018-03-79 | 2 | United States |
| 5340-00-787-6923 | 2016-05-131 | 2 | United States |
| MS924301 | 2016-01-11 | 40 | United States |
Cross Reference | NSN 5340-00-787-6923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9243-01 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-787-6923
Related Products | NSN 5340-00-787-6923
Technical Data | NSN 5340-00-787-6923
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 80 ROUND, MULTI HOLES |
| BOLT CIRCLE DIAMETER | 8.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 8.940 INCHES MINIMUM AND 9.000 INCHES MAXIMUM |
| BOLT CIRCLE HOLE QUANTITY | 8 |
| CROSS-SECTIONAL SHAPE STYLE | 2 CIRCULAR RECESS |
| INSIDE DIAMETER | 7.030 INCHES MINIMUM AND 7.090 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.156 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| FIRST RECESS INSIDE HEIGHT | 0.763 INCHES MINIMUM AND 0.825 INCHES MAXIMUM |
| INSIDE CORNER RADIUS | 0.344 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| BODY THICKNESS | 0.113 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| MATERIAL | MAGNESIUM ALLOY AZ63A OR MAGNESIUM ALLOY AZ92A |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4424 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4484 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2510 ASSN STD SINGLE TREATMENT RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.404 INCHES MINIMUM AND 0.411 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9243-01 |
Restrictions/Controls & Freight Information | NSN 5340-00-787-6923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133680 | MAGNSM ARTICLES NOI/FORMS/SHAPES |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-787-6923
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
