NSN 5340-00-781-8559 10865940, 00-781-8559, 007818559
Product Details | ACCESS COVER
5340-00-781-8559 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 10865940, 5340-00-781-8559, 00-781-8559, 5340007818559, 007818559
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JAN 1968 | 00-781-8559 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-781-8559
Demand History | NSN 5340-00-781-8559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-781-8559 | 2023-12-345 | 179 | DIBBS |
| 5340-00-781-8559 | 2023-11-332 | 179 | DIBBS |
| 5340-00-781-8559 | 2023-07-205 | 124 | DIBBS |
| 5340-00-781-8559 | 2023-07-194 | 124 | DIBBS |
| 5340-00-781-8559 | 2023-02-58 | 24 | DIBBS |
| 5340-00-781-8559 | 2019-10-279 | 52 | DIBBS |
| 5340-00-781-8559 | 2019-06-178 | 75 | DIBBS |
| 5340-00-781-8559 | 2018-03-65 | 57 | DIBBS |
| 5340-00-781-8559 | 2017-02-43 | 46 | DIBBS |
| 5340-00-781-8559 | 2016-09-259 | 48 | DIBBS |
| 5340-00-781-8559 | 2014-09-253 | 20 | DIBBS |
| 5340-00-781-8559 | 2012-06-179 | 16 | US |
| 5340-00-781-8559 | 2010-07-204 | 25 | DIBBS |
| 5340-00-781-8559 | 2009-12-364 | 42 | DIBBS |
| 5340-00-781-8559 | 2009-09-266 | 15 | DIBBS |
Cross Reference | NSN 5340-00-781-8559
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10865940 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-781-8559
Related Products | NSN 5340-00-781-8559
Technical Data | NSN 5340-00-781-8559
| Characteristic | Specifications |
|---|---|

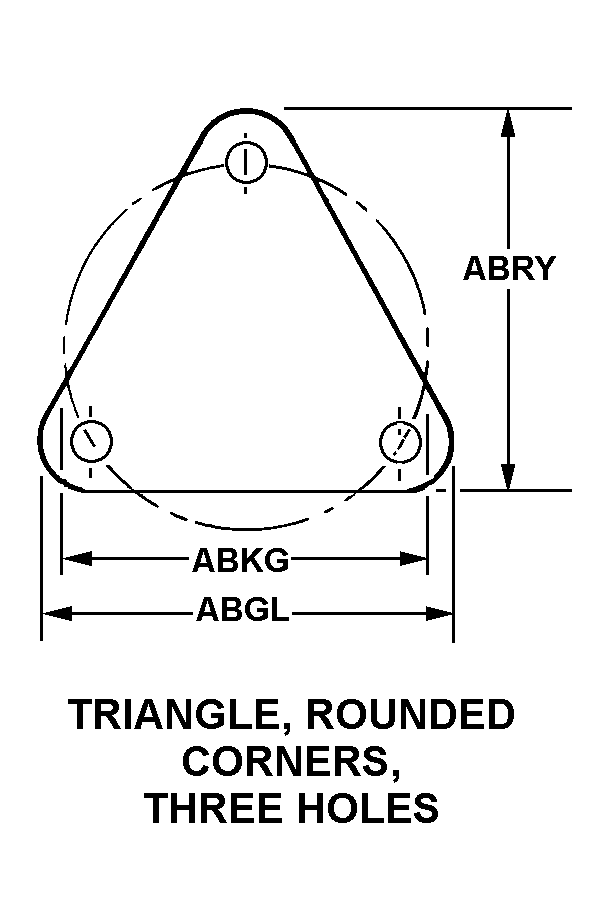

| PERIPHERAL SHAPE STYLE | 97 TRIANGLE, ROUNDED CORNERS, THREE HOLES |
| WIDTH | 4.438 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 4.375 INCHES NOMINAL |
| LENGTH | 4.438 INCHES NOMINAL |
| CORNER RADIUS | 0.469 INCHES MINIMUM AND 0.594 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | 26 FLAT |
| BODY THICKNESS | 1.425 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 5083 OR ALUMINUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-46027,ARMOR MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-A-46083,ARMOR,CLASS I OR II MIL SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10865940 |
Restrictions/Controls & Freight Information | NSN 5340-00-781-8559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-781-8559
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
