NSN 5340-00-776-7366 310738, 515944, 7767366
Product Details | ACCESS COVER
5340-00-776-7366 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 310738, 515944, 7767366, 5340-00-776-7366, 00-776-7366, 5340007767366, 007767366
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-776-7366 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-776-7366
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-776-7366
Technical Data | NSN 5340-00-776-7366
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 80 ROUND, MULTI HOLES |
| BOLT CIRCLE DIAMETER | 7.875 INCHES NOMINAL |
| OUTSIDE DIAMETER | 8.620 INCHES NOMINAL |
| BOLT CIRCLE HOLE QUANTITY | 8 |

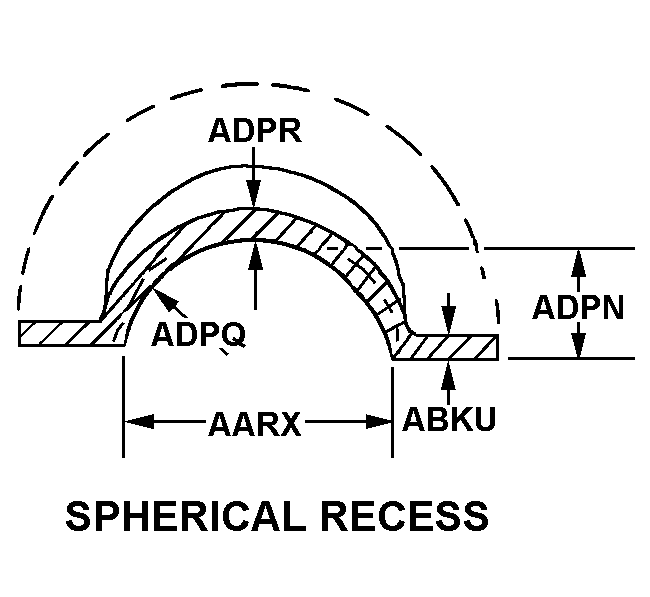

| CROSS-SECTIONAL SHAPE STYLE | 1 SPHERICAL RECESS |
| INSIDE DIAMETER | 7.220 INCHES NOMINAL |
| FLANGE THICKNESS | 0.560 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 1.130 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| INSIDE CORNER RADIUS | 6.310 INCHES NOMINAL |
| BODY THICKNESS | 0.190 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MANUFACTURERS CODE | 02978 |
| DESIGN CONTROL REFERENCE | 515944 |
Restrictions/Controls & Freight Information | NSN 5340-00-776-7366
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
