NSN 5340-00-768-0438 P1604737495, P160-473-7-495, 00-768-0438
Product Details | FRICTION CATCH STUD
5340-00-768-0438 A rigid metallic item with facilities for mounting to a door, sill, panel, or the like. It is the male component of a CATCH, FRICTION, designed to be inserted and retained by a RECEPTACLE, FRICTION CATCH STUD. For items having a spring actuated plunger, ball, bolt, latch, or the like, see CATCH, FRICTION.
Part Alternates: P1604737495, P160-473-7-495, 5340-00-768-0438, 00-768-0438, 5340007680438, 007680438
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-768-0438 | 18366 ( STUD, FRICTION CATCH ) |
Drawings & Photos | NSN 5340-00-768-0438
Cross Reference | NSN 5340-00-768-0438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P160-473-7-495 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-768-0438
Technical Data | NSN 5340-00-768-0438
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

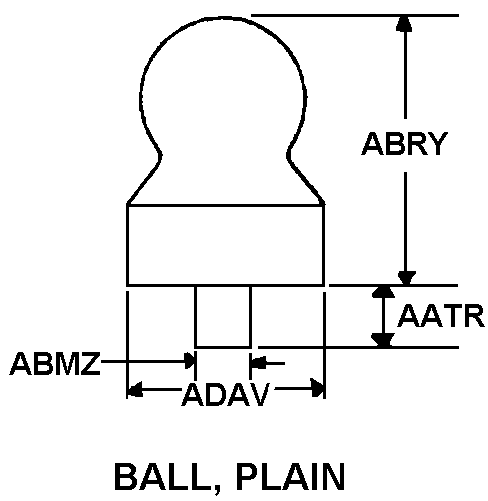

| STYLE DESIGNATOR | K1 BALL, PLAIN |
| SHANK LENGTH | 0.218 INCHES MINIMUM AND 0.228 INCHES MAXIMUM |
| DIAMETER | 0.153 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| LENGTH | 0.470 INCHES MINIMUM AND 0.476 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-768-0438
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-00-768-0438
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
