NSN 5340-00-766-3687 174DN, 1-74DN, 3174D
Product Details | SWIVEL CASTER
5340-00-766-3687 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 174DN, 1-74DN, 3174D, 31-74-D, 7424PDN, 74-24-PDN, 5340-00-766-3687, 00-766-3687, 5340007663687, 007663687
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-766-3687 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-766-3687
Demand History | NSN 5340-00-766-3687
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 31-74-D | 2022-08-216 | 38 | DIBBS |
| 74-24-PDN | 2022-08-216 | 38 | DIBBS |
| 5340-00-766-3687 | 2014-07-190 | 34 | DIBBS |
| 5340-00-766-3687 | 2012-06-163 | 54 | DIBBS |
| 5340-00-766-3687 | 2011-09-249 | 133 | DIBBS |
| 5340-00-766-3687 | 2011-06-152 | 170 | DIBBS |
| 5340-00-766-3687 | 2011-04-119 | 20 | DIBBS |
| 5340-00-766-3687 | 2011-04-119 | 70 | DIBBS |
| 5340-00-766-3687 | 2011-02-56 | 2 | DIBBS |
| 5340-00-766-3687 | 2009-10-278 | 35 | DIBBS |
| 5340-00-766-3687 | 2009-01-18 | 4 | DIBBS |
| 5340-00-766-3687 | 2008-12-347 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-766-3687
Related Products | NSN 5340-00-766-3687
Technical Data | NSN 5340-00-766-3687
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | RUBBER WHEEL RIM STEEL BODY |
| SURFACE TREATMENT AND LOCATION | LACQUER, BLUE WHEEL RIM |
| SAFE OPERATING LOAD RATING | 300.0 POUNDS NOMINAL |

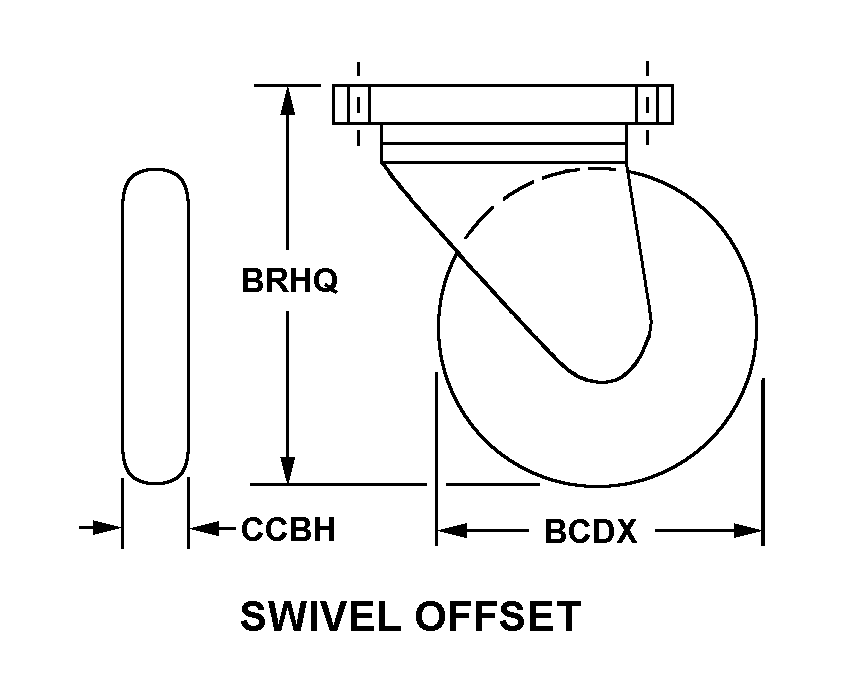

| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 4.000 INCHES NOMINAL |
| TREAD WIDTH | 1.375 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 5.438 INCHES NOMINAL |

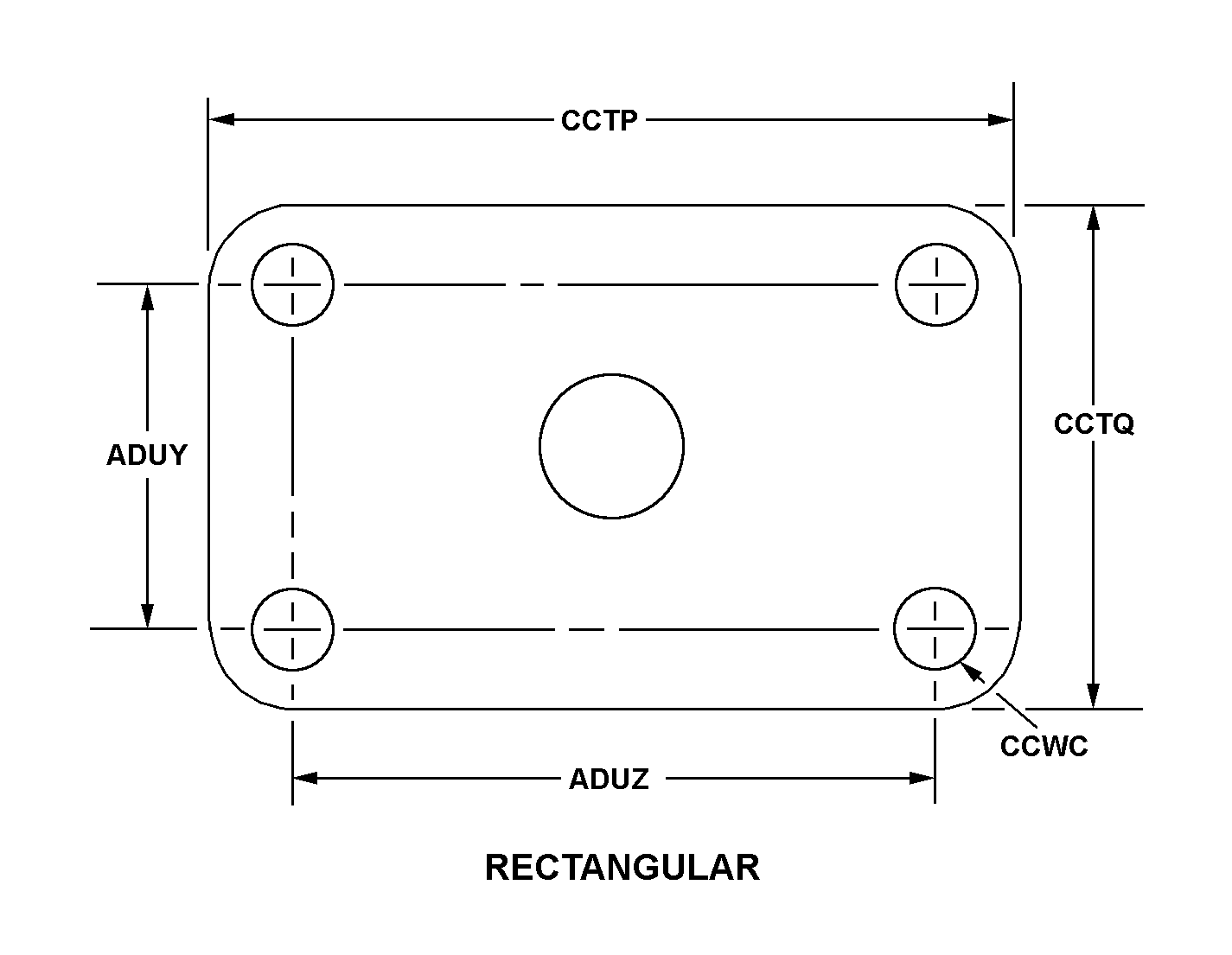

| PLATE STYLE | 2 RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 3.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.625 INCHES NOMINAL |
| CASTER PLATE LENGTH | 4.500 INCHES NOMINAL |
| CASTER PLATE WIDTH | 3.500 INCHES NOMINAL |
| CASTER PLATE MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| WHEEL BEARING TYPE | PLAIN, SELF-LUBRICATED |
| SWIVEL BEARING TYPE | BALL |
| SWIVEL BEARING ARRANGEMENT | TWO ROW |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
| FEATURES PROVIDED | AXLE LUBRICATION FITTING AND SWIVEL LUBRICATION FITTING |
| III DISASSEMBLY CAPABILITY | PROVIDED |
Restrictions/Controls & Freight Information | NSN 5340-00-766-3687
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-766-3687
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
