NSN 5340-00-755-7520 493621, 00-755-7520, 007557520

Product Details | DOUBLE ANGLE BRACKET

5340-00-755-7520 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000

Part Alternates: 493621, 5340-00-755-7520, 00-755-7520, 5340007557520, 007557520

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-755-7520	20354 ( BRACKET, DOUBLE ANGLE )

Drawings & Photos | NSN 5340-00-755-7520

Part Number	Request Date	QTY	Origin
5340-00-755-7520	2018-10-276	210	DIBBS
5340-00-755-7520	2018-08-231	114	DIBBS
5340-00-755-7520	2018-08-230	114	DIBBS
5340-00-755-7520	2018-07-190	18	DIBBS
5340-00-755-7520	2018-07-182	18	DIBBS
5340-00-755-7520	2015-04-120	19	DIBBS
5340-00-755-7520	2014-10-279	42	DIBBS
5340-00-755-7520	2014-03-71	25	DIBBS

Cross Reference | NSN 5340-00-755-7520

Part Number	Cage Code	Manufacturer
493621	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-755-7520

Compare

Related Products | NSN 5340-00-755-7520

5340-00-756-0081, 5340-00-756-0113, 5340-00-756-0631, 5340-00-756-1139, 5340-00-756-2360

Technical Data | NSN 5340-00-755-7520

Characteristic	Specifications
MATERIAL	STEEL
STYLE DESIGNATOR	11 DOUBLE ANGLE
III FIRST LEG LENGTH	1.513 INCHES NOMINAL
III SECOND LEG LENGTH	2.562 INCHES NOMINAL
III FIRST LEG THICKNESS	0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
III SECOND LEG THICKNESS	0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
III CENTER SECTION HEIGHT	0.960 INCHES MINIMUM AND 0.970 INCHES MAXIMUM
III CENTER SECTION WIDTH	2.455 INCHES NOMINAL
III CENTER SECTION THICKNESS	0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
III FIRST LEG ANGLE	0.25 RADIANS NOMINAL
III SECOND LEG ANGLE	0.25 RADIANS NOMINAL
FIRST LEG STYLE	102 END RADIUS
FIRST LEG WIDTH	0.876 INCHES NOMINAL
FIRST LEG END RADIUS	0.438 INCHES NOMINAL

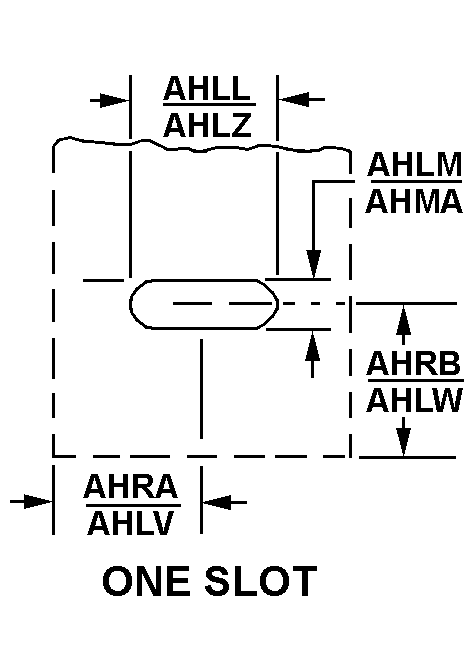

FIRST LEG HOLE ARRANGEMENT STYLE	145 ONE SLOT
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH	0.438 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH	0.438 INCHES NOMINAL
FIRST LEG SLOT LENGTH	0.533 INCHES MINIMUM AND 0.543 INCHES MAXIMUM
FIRST LEG SLOT WIDTH	0.374 INCHES MINIMUM AND 0.376 INCHES MAXIMUM
SECOND LEG RELATIONSHIP TO FIRST LEG	NOT IDENTICAL
SECOND LEG STYLE	104 SQUARE
SECOND LEG WIDTH	2.455 INCHES NOMINAL

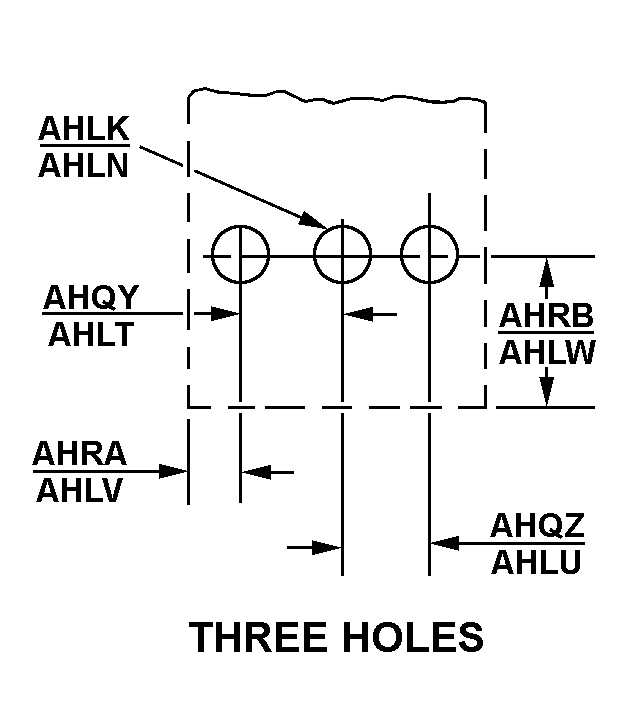

SECOND LEG HOLE ARRANGEMENT STYLE	137 THREE HOLES
SECOND LEG HOLE DIAMETER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH	0.887 INCHES NOMINAL
SECOND LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH	0.861 INCHES NOMINAL
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH	0.312 INCHES NOMINAL
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH	0.312 INCHES NOMINAL
MANUFACTURERS CODE	77445
DESIGN CONTROL REFERENCE	493621

Restrictions/Controls & Freight Information | NSN 5340-00-755-7520

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093600	BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-755-7520

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	RV	SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
