NSN 5340-00-737-6959 526227, 7376959, 00-737-6959
Product Details | ACCESS COVER
5340-00-737-6959 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 526227, 7376959, 5340-00-737-6959, 00-737-6959, 5340007376959, 007376959
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-737-6959 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-737-6959
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-737-6959
Technical Data | NSN 5340-00-737-6959
| Characteristic | Specifications |
|---|---|

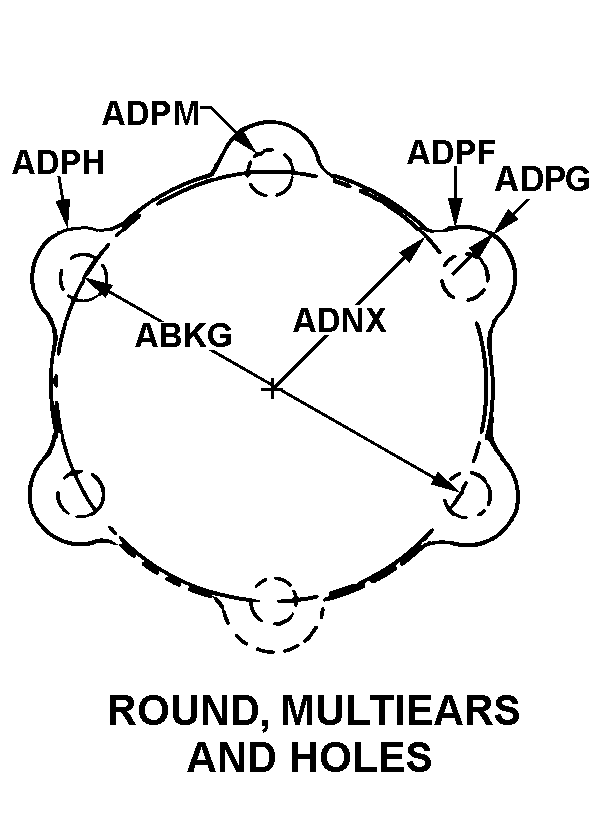

| PERIPHERAL SHAPE STYLE | 61 ROUND, MULTIEARS AND HOLES |
| BOLT CIRCLE DIAMETER | 5.687 INCHES NOMINAL |
| BODY RADIUS | 2.843 INCHES NOMINAL |
| INVERTED RADIUS | 0.500 INCHES NOMINAL |
| EAR RADIUS | 0.340 INCHES NOMINAL |
| EAR QUANTITY | 6 |
| BOLT CIRCLE HOLE QUANTITY | 6 |

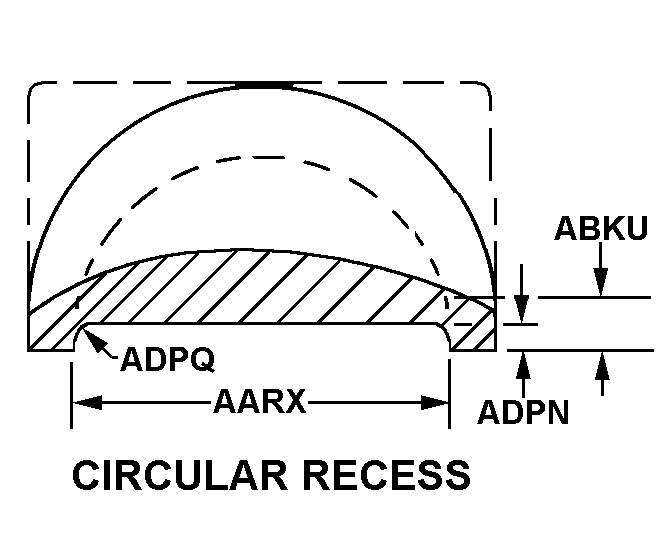

| CROSS-SECTIONAL SHAPE STYLE | 11 CIRCULAR RECESS |
| INSIDE DIAMETER | 4.940 INCHES NOMINAL |
| FLANGE THICKNESS | 0.540 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.340 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.120 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601,ALLOY 10 T 71 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.342 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING CAPABILITY |
| SPECIAL FEATURES | RING TYPE HANDLE ATTTACHED |
| MANUFACTURERS CODE | 02978 |
| DESIGN CONTROL REFERENCE | 526227 |
Restrictions/Controls & Freight Information | NSN 5340-00-737-6959
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
