NSN 5340-00-721-8182 AN74313, AN743-13, W1-5L
Product Details | ANGLE BRACKET
5340-00-721-8182 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: AN74313, AN743-13, W1-5L , W15LB, W1-5LB , Z00.N7249060213, Z00N7249060213, W15L, 8521063, 0152930020, 015-2930-020, 5340-00-721-8182, 00-721-8182, 5340007218182, 007218182
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-721-8182 | 16900 ( BRACKET, ANGLE ) |

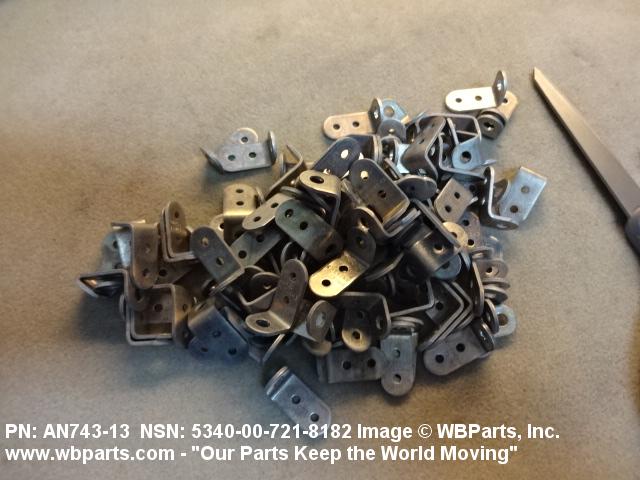

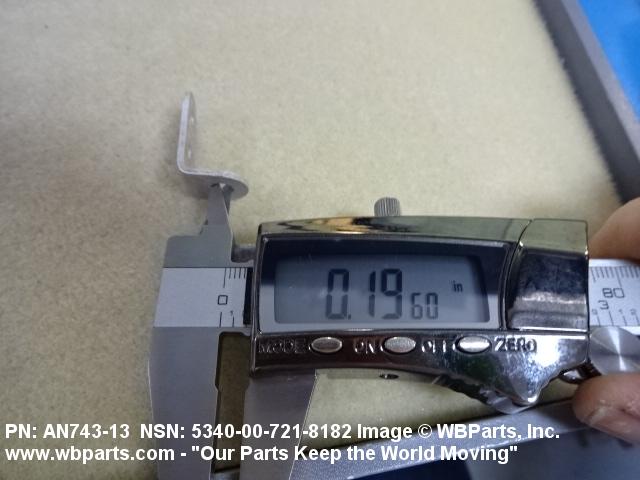

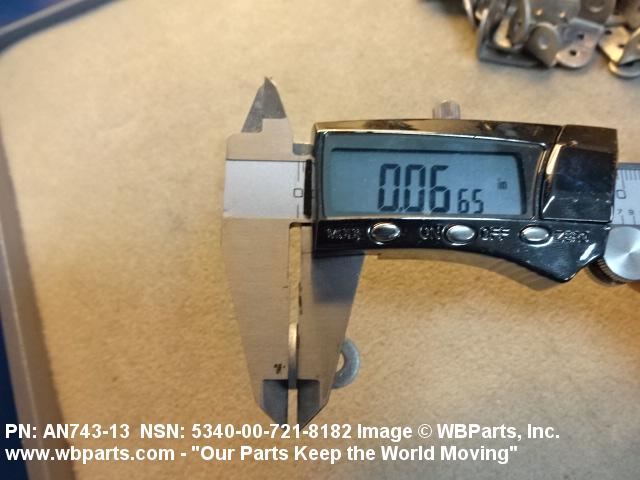

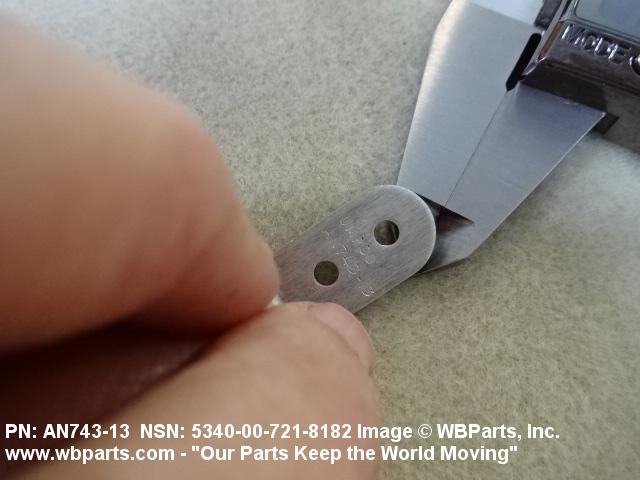

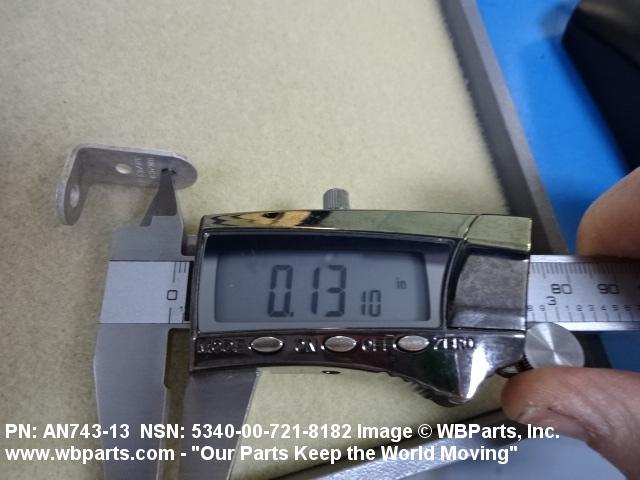

Drawings & Photos | NSN 5340-00-721-8182
Demand History | NSN 5340-00-721-8182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN74313 | 2024-02-22 | 100 | US |
| AN74313 | 2023-09-29 | 3 | United States |
| AN74313 | 2023-02-17 | 5 | US |
| AN74313 | 2023-02-07 | 33 | United States |
| AN74313 | 2022-10-13 | 1 | US |
| AN74313 | 2020-05-13 | 350 | United States |
| AN74313 | 2019-09-26 | 125 | United States |
| AN74313 | 2019-09-19 | 125 | United States |
| 5340-00-721-8182 | 2019-03-11 | 120 | United States |
| 5340-00-721-8182 | 2019-02-19 | 4439 | DIBBS |
| 5340-00-721-8182 | 2019-02-10 | 4439 | DIBBS |
| 5340-00-721-8182 | 2019-02-04 | 100 | United States |
| 5340-00-721-8182 | 2019-01-18 | 3125 | DIBBS |
| 5340-00-721-8182 | 2019-01-10 | 3125 | DIBBS |
| 5340-00-721-8182 | 2018-12-18 | 10233 | DIBBS |
| 5340-00-721-8182 | 2018-12-10 | 10233 | DIBBS |
| 5340-00-721-8182 | 2018-05-24 | 8 | United States |
| AN74313 | 2016-11-04 | 2 | United States |
| AN74313 | 2015-06-16 | 87 | United States |
| AN743-13 | 2012-04-24 | 11 | IN |
| 5340-00-721-8182 | 2011-10-26 | 19442 | DIBBS |
| 5340-00-721-8182 | 2010-01-26 | 2 | US |
| 5340-00-721-8182 | 2009-08-14 | 20 | us |
| 5340-00-721-8182 | 2009-08-05 | 19 | US |
| AN74313 | 2008-12-02 | 25 | United States |
| AN74313 | 2008-10-15 | 25 | United States |
| 5340-00-721-8182 | 2008-03-24 | 2 | us |
| 5340-00-721-8182 | 2008-01-31 | 19012 | DIBBS |
| AN74313 | 2006-05-09 | 150 | us |
Cross Reference | NSN 5340-00-721-8182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 015-2930-020 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 8521063 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN743-13 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AN743-13 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN743-13 | 97499 | BELL HELICOPTER TEXTRON INC. |
| Z00.N7249060213 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-721-8182
Related Products | NSN 5340-00-721-8182
Technical Data | NSN 5340-00-721-8182
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,ALCLAD T3 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 6 ANGLE |

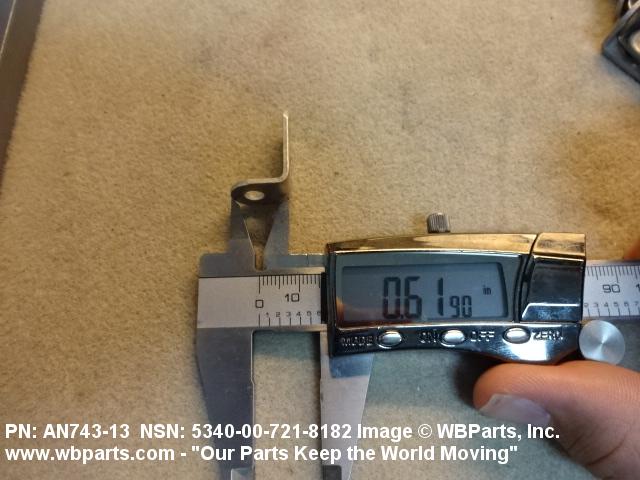

| III FIRST LEG LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |

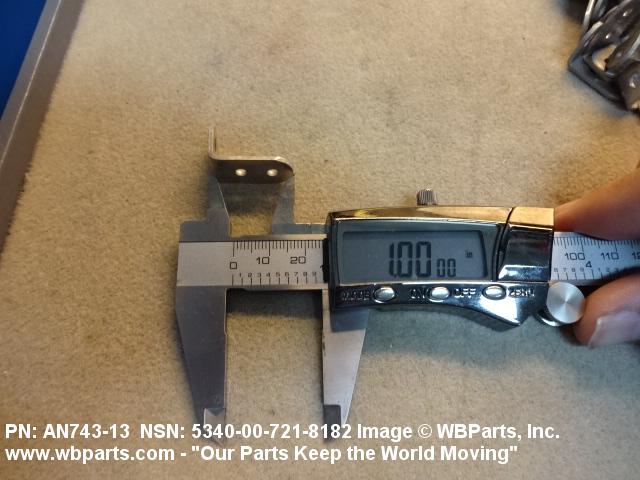

| III SECOND LEG LENGTH | 0.990 INCHES MINIMUM AND 1.110 INCHES MAXIMUM |

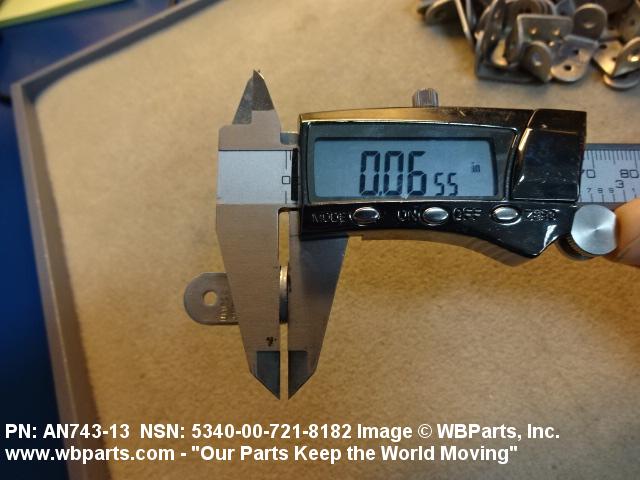

| III FIRST LEG THICKNESS | 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| III SECOND LEG THICKNESS | 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 END RADIUS |

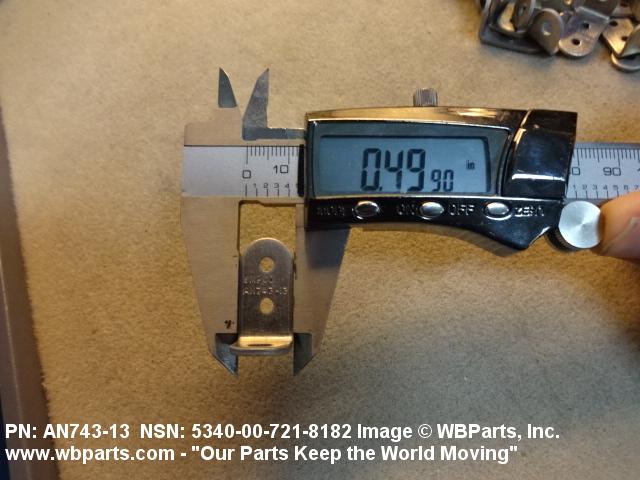

| FIRST LEG WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| FIRST LEG END RADIUS | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |

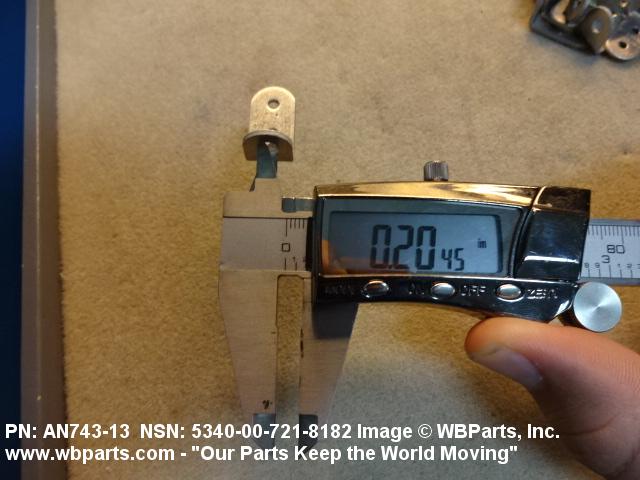

| FIRST LEG HOLE DIAMETER | 0.194 INCHES MINIMUM AND 0.214 INCHES MAXIMUM |

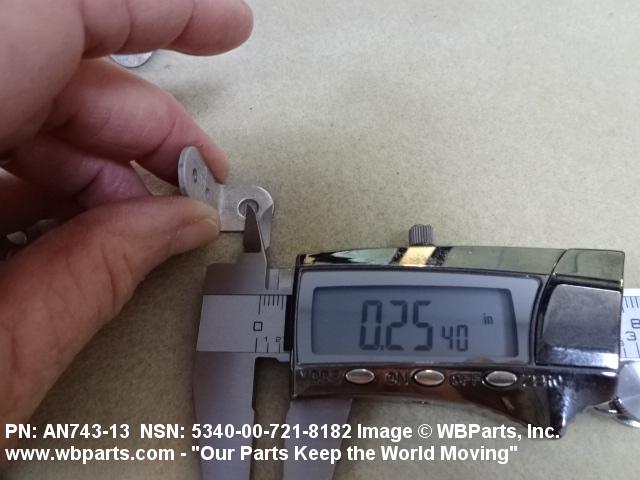

| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| SECOND LEG WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SECOND LEG END RADIUS | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY FIRST LEG HOLE DIAMETER |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN743-13 |
Restrictions/Controls & Freight Information | NSN 5340-00-721-8182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 175900 | SIGNALS/SIGNS RD TRAF O/T LGHT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
