Product Details | BOW HANDLE

5340-00-687-5417 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.

Part Alternates: 1257SIZEN01, 5340-00-687-5417, 00-687-5417, 5340006875417, 006875417

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-687-5417

Drawings & Photos | NSN 5340-00-687-5417


Cross Reference | NSN 5340-00-687-5417

Part Number Cage Code Manufacturer
1257SIZEN01 87541 STANLEY HARDWARE CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-687-5417

Technical Data | NSN 5340-00-687-5417

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT ENAMEL BAKED OVERALL

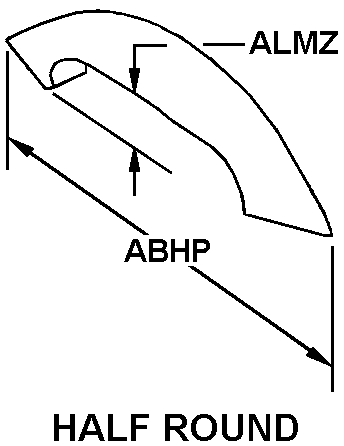

STYLE DESIGNATOR B1 HALF ROUND
OVERALL LENGTH 5.125 INCHES NOMINAL
MOUNTING FACILITY QUANTITY 2
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 3.250 INCHES NOMINAL
SPECIAL FEATURES FURNISHED W/2 SCREWS
III SUPPLEMENTARY FEATURES WITH DRILLED HOLES

Restrictions/Controls & Freight Information | NSN 5340-00-687-5417

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
