NSN 5340-00-687-5192 11AF15, 00-687-5192, 006875192
Product Details | HAND CRANK
5340-00-687-5192 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: 11AF15, 5340-00-687-5192, 00-687-5192, 5340006875192, 006875192
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-687-5192 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-00-687-5192
Cross Reference | NSN 5340-00-687-5192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11AF15 | 92858 | HANNAY REELS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-687-5192
Technical Data | NSN 5340-00-687-5192
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| ARM STYLE | 5 STRAIGHT |
| CRANK THROW LENGTH | 7.875 INCHES NOMINAL |

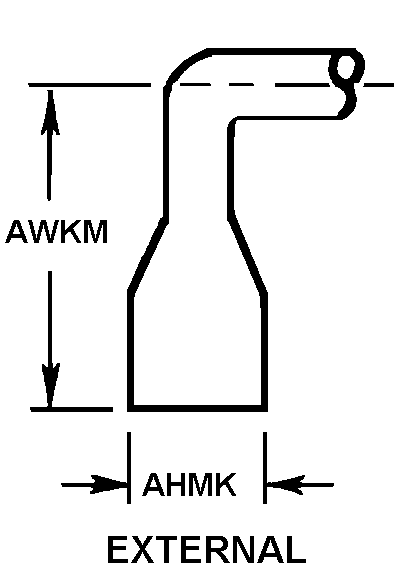

| DRIVE END STYLE | 102 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 1.315 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 14.000 INCHES NOMINAL |

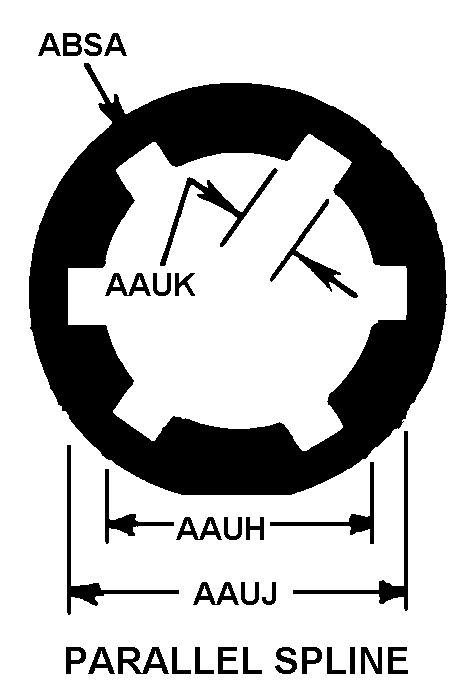

| DRIVE FACILITY STYLE | 127 PARALLEL SPLINE |
| SPLINE MINOR DIAMETER | 1.000 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 1.500 INCHES NOMINAL |
| SPLINE WIDTH | 0.125 INCHES NOMINAL |
| OVERALL DEPTH | 0.500 INCHES NOMINAL |
| SPLINE QUANTITY | 2 |
| CRANK OVERALL LENGTH | 19.250 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |

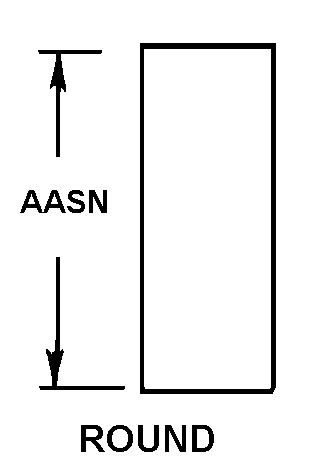

| HANDLE STYLE | 64 ROUND |
| HANDLE LENGTH | 5.250 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| MANUFACTURERS CODE | 92858 |
| DESIGN CONTROL REFERENCE | 11AF15 |
