NSN 5340-00-682-1953 592649, 00-682-1953, 006821953
Product Details | WEBBING STRAP
5340-00-682-1953 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 592649, 5340-00-682-1953, 00-682-1953, 5340006821953, 006821953
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-682-1953 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-00-682-1953
Cross Reference | NSN 5340-00-682-1953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 592649 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-682-1953
Technical Data | NSN 5340-00-682-1953
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-530, TYPE 3 |
| ENVIRONMENTAL PROTECTION | MILDEW RESISTANT |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 1.250 INCHES NOMINAL |
| COLOR | OLIVE DRAB |
| END TYPE | BOTH W/ATTACHMENTS |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE END CLIP |

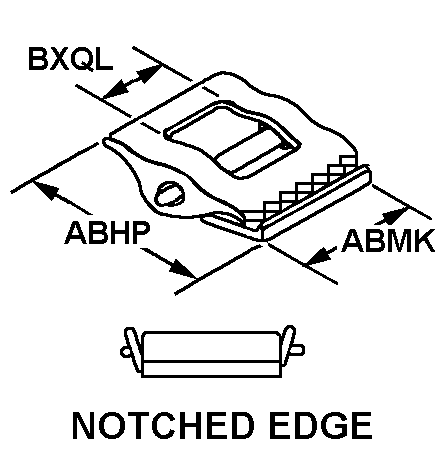

| BUCKLE STYLE DESIGNATOR | B13 NOTCHED EDGE |
| BUCKLE MATERIAL | STEEL AND IRON, MALLEABLE |
| BUCKLE SURFACE TREATMENT | DULL BLACK |
| BUCKLE LOCATION | ON END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |

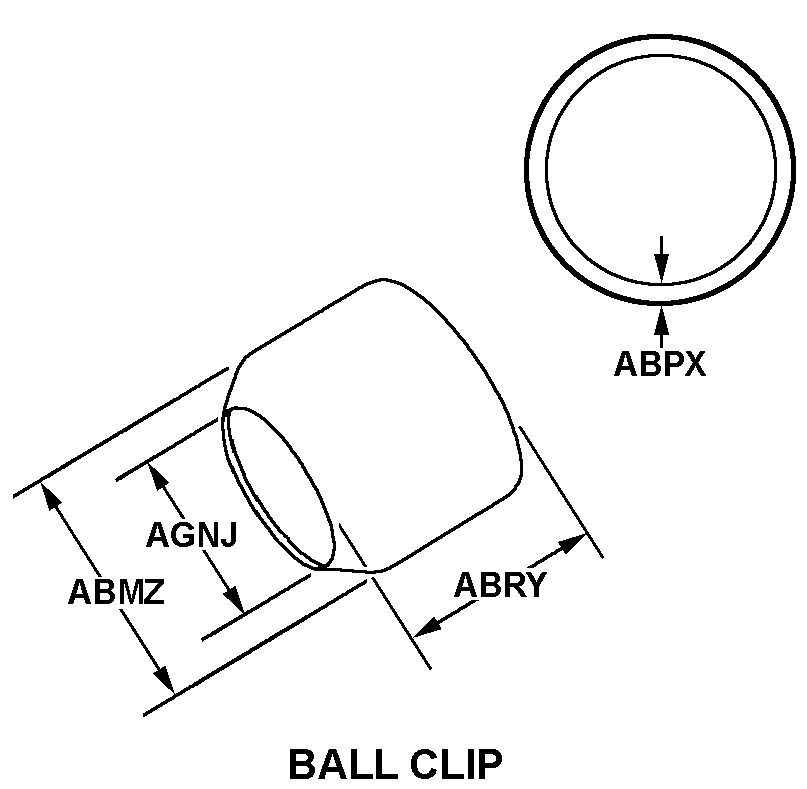

| END CLIP STYLE DESIGNATOR | E3 BALL CLIP |
| END CLIP MATERIAL | BRASS |
| END CLIP QUANTITY | 1 |
| NONDEFINITIVE SPEC/STD DATA | PART NO. 592649 |
Restrictions/Controls & Freight Information | NSN 5340-00-682-1953
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
