Product Details | RETAINING STRAP

5340-00-680-9006 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.

Part Alternates: F1019S, 5340-00-680-9006, 00-680-9006, 5340006809006, 006809006

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-680-9006

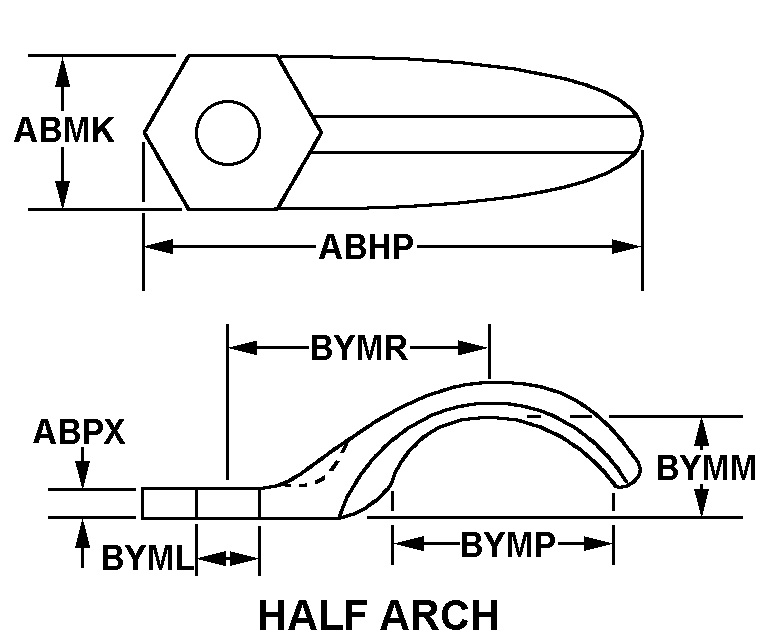

Drawings & Photos | NSN 5340-00-680-9006


Cross Reference | NSN 5340-00-680-9006

Part Number Cage Code Manufacturer
F1019S 11699 KENNECOTT CORP CHASE EXTRUSIONS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-680-9006

Technical Data | NSN 5340-00-680-9006

Characteristic Specifications
MATERIAL BRASS
STYLE DESIGNATOR A10 HALF ARCH
OVERALL LENGTH 2.125 INCHES NOMINAL
OVERALL WIDTH ANY ACCEPTABLE
MATERIAL THICKNESS ANY ACCEPTABLE
MOUNTING HOLE SIZE 0.313 INCHES NOMINAL
DISTANCE BETWEEN BASE AND INSIDE OF ARCH 0.750 INCHES NOMINAL
INSIDE DIAMETER/ARCH LENGTH 0.875 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN ARCH AND MOUNTING HOLE ANY ACCEPTABLE
CUSHION NOT INCLUDED
MOUNTING PAD NOT INCLUDED

Restrictions/Controls & Freight Information | NSN 5340-00-680-9006

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
