NSN 5340-00-670-0543 105B1127P1, 00-670-0543, 006700543
Product Details | SYNCHRO CLAMP
5340-00-670-0543 A clamp designed to hold an item in position, alignment or in close proximity by rigidly gripping the projecting rim, ridge, collar or edge of the item. A lockwasher, bolt, screw or the like may be a part of the item of supply.
Part Alternates: 105B1127P1, 5340-00-670-0543, 00-670-0543, 5340006700543, 006700543
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-670-0543 | 40268 ( CLAMP, SYNCHRO ) |
Drawings & Photos | NSN 5340-00-670-0543
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-670-0543
Technical Data | NSN 5340-00-670-0543
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5510 ASSN STD SINGLE MATERIAL RESPONSE |

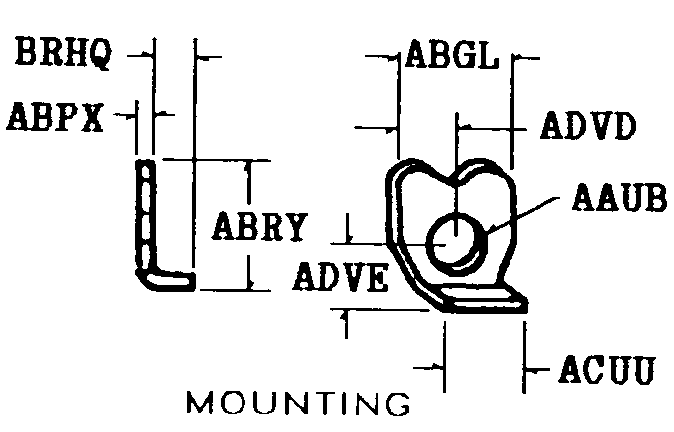

| STYLE DESIGNATOR | C6 MOUNTING |
| WIDTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.350 INCHES NOMINAL |
| SPECIAL FEATURES | ORIGINAL DRAWING NAME-CLIP TANDEM SPRAYBAR; ITEM HAS 2 HOLES, 1 HAS DIA OF 0.204 IN. LOC W/IN 0.02R OF TRUE POS, 2NMD HOLE HAS DIA 0.297 IN. LOC W/IN 0.02R OF TRUE POS |
Restrictions/Controls & Freight Information | NSN 5340-00-670-0543
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-670-0543
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
