NSN 5340-00-651-5076 P1568, 00-651-5076, 006515076
Product Details | PIPE HANGER
5340-00-651-5076 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: P1568, 5340-00-651-5076, 00-651-5076, 5340006515076, 006515076
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-651-5076 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-00-651-5076
Cross Reference | NSN 5340-00-651-5076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P1568 | 96195 | UNISTRUT INTERNATIONAL CORPORATION DBA UNISTRUT DIVERSIFIED PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-651-5076
Technical Data | NSN 5340-00-651-5076
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |

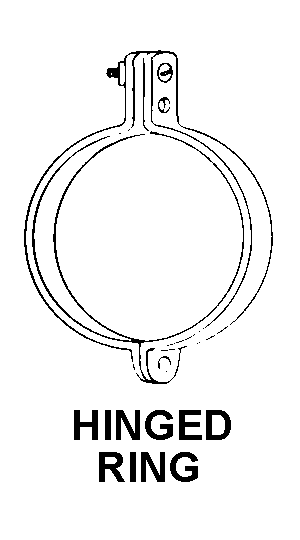

| STYLE DESIGNATOR | 5A HINGED RING |
| SUPPORTED ITEM AND QUANTITY | 2 CONDUIT |
| PIPE ACCOMMODATION DIAMETER | 1.500 INCHES NOMINAL |
| TUBE ACCOMMODATION OUTSIDE DIAMETER | 1.900 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-651-5076
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105500 | HANGERS PIPE NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
