5340-00-616-7282 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial

Part Alternates: XX0022271, XX002-2271, 6167282, 5340-00-616-7282, 00-616-7282, 5340006167282, 006167282

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-616-7282

Drawings & Photos | NSN 5340-00-616-7282


Demand History | NSN 5340-00-616-7282

Part Number Request Date QTY Origin
5340-00-616-7282 2019-11-318 1 DIBBS
5340-00-616-7282 2018-12-345 1 DIBBS

Cross Reference | NSN 5340-00-616-7282

Part Number Cage Code Manufacturer
6167282 19204 ARMY UNITED STATES DEPARTMENT OF THE
XX002-2271 H2229 RDM TECHNOLOGY B.V.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-616-7282

Technical Data | NSN 5340-00-616-7282

Characteristic Specifications

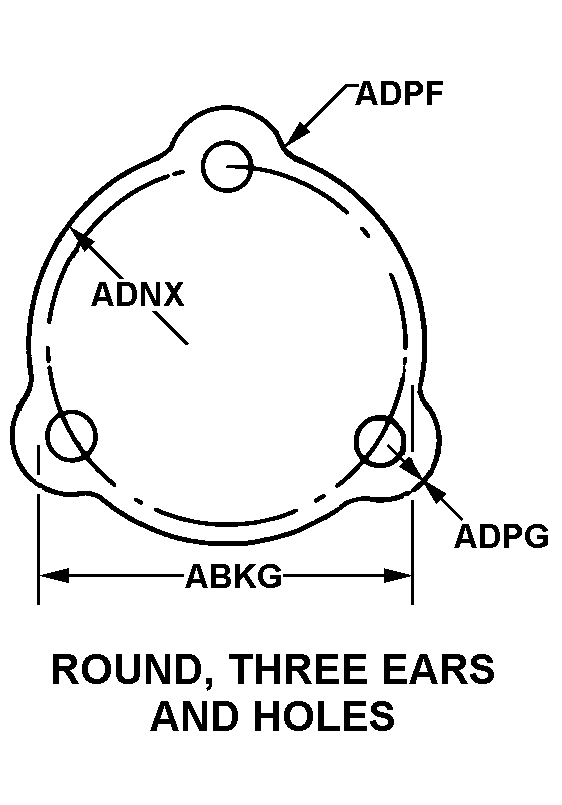

PERIPHERAL SHAPE STYLE 101 ROUND, THREE EARS AND HOLES
BOLT CIRCLE DIAMETER 4.250 INCHES NOMINAL
BODY RADIUS 2.125 INCHES NOMINAL
INVERTED RADIUS 0.375 INCHES NOMINAL
EAR RADIUS 0.375 INCHES NOMINAL

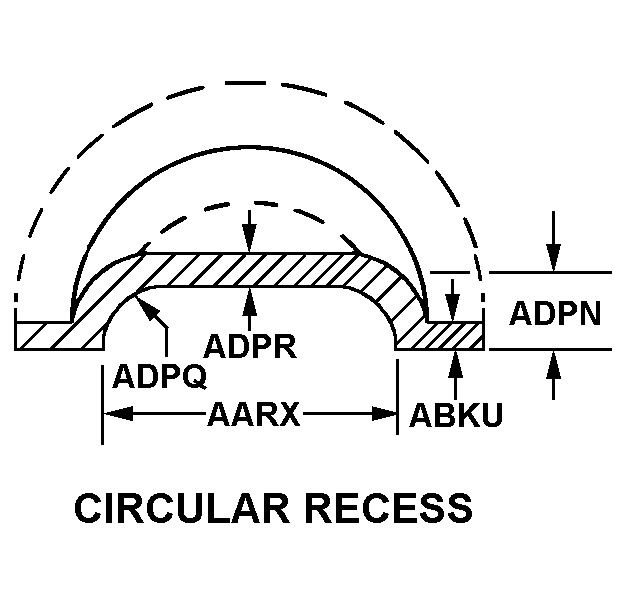

CROSS-SECTIONAL SHAPE STYLE 2 CIRCULAR RECESS
INSIDE DIAMETER 3.188 INCHES NOMINAL
FLANGE THICKNESS 0.844 INCHES NOMINAL
FIRST RECESS INSIDE HEIGHT 0.719 INCHES NOMINAL
INSIDE CORNER RADIUS 0.188 INCHES NOMINAL
BODY THICKNESS 0.125 INCHES NOMINAL
MATERIAL IRON CAST
SURFACE TREATMENT PHOSPHATE
SECURING DEVICE TYPE THREADED FASTENER
MOUNTING OPENING SHAPE STYLE 1 UNTHREADED HOLE
HOLE DIAMETER 0.406 INCHES NOMINAL
MANUFACTURERS CODE 19204
DESIGN CONTROL REFERENCE 6167282
