NSN 5340-00-598-3698 64, 00-598-3698, 005983698
Product Details | PIPE HANGER
5340-00-598-3698 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: 64, 5340-00-598-3698, 00-598-3698, 5340005983698, 005983698
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-598-3698 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-00-598-3698
Cross Reference | NSN 5340-00-598-3698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64 | 73854 | UNIVERSAL-GRABLER CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-598-3698
Technical Data | NSN 5340-00-598-3698
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON |

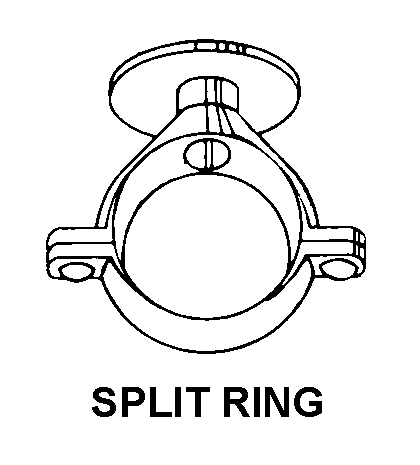

| STYLE DESIGNATOR | 1F SPLIT RING |
| SUPPORTED ITEM AND QUANTITY | 1 PIPE |
| PIPE ACCOMMODATION DIAMETER | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-598-3698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105500 | HANGERS PIPE NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-598-3698
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
