NSN 5340-00-597-3140 AR70, 00-597-3140, 005973140
Product Details | DOOR HANDLE
5340-00-597-3140 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: AR70, 5340-00-597-3140, 00-597-3140, 5340005973140, 005973140
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-597-3140 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 5340-00-597-3140
Cross Reference | NSN 5340-00-597-3140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR70 | 80477 | ADAMS RITE AEROSPACE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-597-3140
Technical Data | NSN 5340-00-597-3140
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |

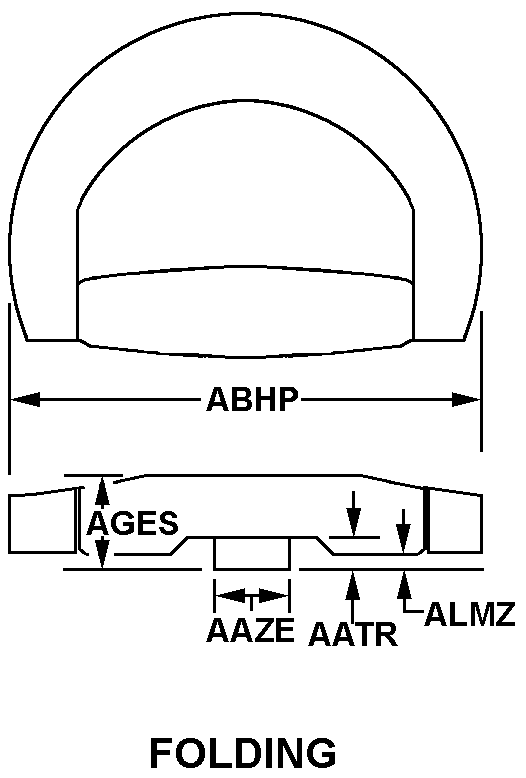

| STYLE DESIGNATOR | C46 FOLDING |
| SHANK LENGTH | 0.160 INCHES NOMINAL |
| SHANK DIAMETER | 0.467 INCHES MINIMUM AND 0.471 INCHES MAXIMUM |
| OVERALL LENGTH | 3.470 INCHES NOMINAL |
| HANDLE HEIGHT | 0.500 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.060 INCHES NOMINAL |
| HOLE DIAMETER | 0.166 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.375 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.375 INCHES NOMINAL |
| PLATE LENGTH | 4.880 INCHES NOMINAL |
| HEIGHT | 0.380 INCHES NOMINAL |

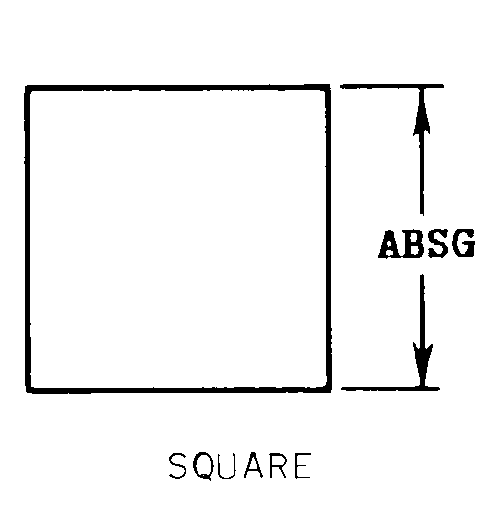

| SHAFT ACCOMMODATION STYLE | V2 SQUARE |
| FEATURES PROVIDED | ESCUTCHEON PLATE MOVABLE |
| SPECIAL FEATURES | W/0.140 IN. DIA THRU PINHOLE |
| MANUFACTURERS CODE | 80477 |
| DESIGN CONTROL REFERENCE | AR70 |
Restrictions/Controls & Freight Information | NSN 5340-00-597-3140
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-597-3140
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
