NSN 5340-00-588-2277 935704, 9-3570-4, 00-588-2277
Product Details | HANDWHEEL
5340-00-588-2277 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: 935704, 9-3570-4, 5340-00-588-2277, 00-588-2277, 5340005882277, 005882277
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-588-2277 | 13379 ( HANDWHEEL ) |
Drawings & Photos | NSN 5340-00-588-2277
Demand History | NSN 5340-00-588-2277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9-3570-4 | 2024-08-224 | 16 | DIBBS |
| 9-3570-4 | 2021-02-39 | 41 | DIBBS |
| 5340-00-588-2277 | 2018-10-302 | 43 | DIBBS |
| 5340-00-588-2277 | 2018-10-294 | 43 | DIBBS |
| 5340-00-588-2277 | 2017-05-131 | 40 | DIBBS |
| 5340-00-588-2277 | 2017-04-93 | 15 | DIBBS |
| 5340-00-588-2277 | 2017-02-37 | 40 | US |
| 5340-00-588-2277 | 2017-01-02 | 12 | DIBBS |
| 5340-00-588-2277 | 2016-12-339 | 7 | DIBBS |
| 5340-00-588-2277 | 2016-08-241 | 9 | DIBBS |
| 5340-00-588-2277 | 2016-07-213 | 3 | DIBBS |
| 5340-00-588-2277 | 2016-06-171 | 14 | DIBBS |
| 5340-00-588-2277 | 2016-02-39 | 33 | DIBBS |
| 5340-00-588-2277 | 2015-11-308 | 29 | DIBBS |
| 5340-00-588-2277 | 2015-10-291 | 28 | DIBBS |
| 5340-00-588-2277 | 2015-09-245 | 10 | DIBBS |
| 5340-00-588-2277 | 2015-06-159 | 8 | DIBBS |
| 5340-00-588-2277 | 2015-05-126 | 3 | DIBBS |
| 5340-00-588-2277 | 2014-08-226 | 7 | DIBBS |
| 5340-00-588-2277 | 2014-08-215 | 7 | DIBBS |
| 5340-00-588-2277 | 2013-04-108 | 13 | DIBBS |
| 5340-00-588-2277 | 2012-10-277 | 20 | DIBBS |
| 5340-00-588-2277 | 2012-07-209 | 6 | DIBBS |
| 5340-00-588-2277 | 2012-07-185 | 6 | DIBBS |
| 5340-00-588-2277 | 2012-03-79 | 4 | DIBBS |
| 5340-00-588-2277 | 2011-11-322 | 9 | DIBBS |
| 5340-00-588-2277 | 2011-05-133 | 8 | DIBBS |
| 5340-00-588-2277 | 2011-04-91 | 12 | DIBBS |
| 5340-00-588-2277 | 2009-11-323 | 25 | DIBBS |
| 5340-00-588-2277 | 2009-07-194 | 15 | DIBBS |
| 5340-00-588-2277 | 2009-07-191 | 9 | DIBBS |
| 5340-00-588-2277 | 2008-06-170 | 7 | DIBBS |
| 5340-00-588-2277 | 2008-03-67 | 5 | DIBBS |
Cross Reference | NSN 5340-00-588-2277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-3570-4 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-588-2277
Related Products | NSN 5340-00-588-2277
Technical Data | NSN 5340-00-588-2277
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC OVERALL |
| OUTSIDE DIAMETER | 10.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.970 INCHES NOMINAL |
| HUB LENGTH | 0.750 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 1.220 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 30.0 |
| SPOKE QUANTITY | 12 |

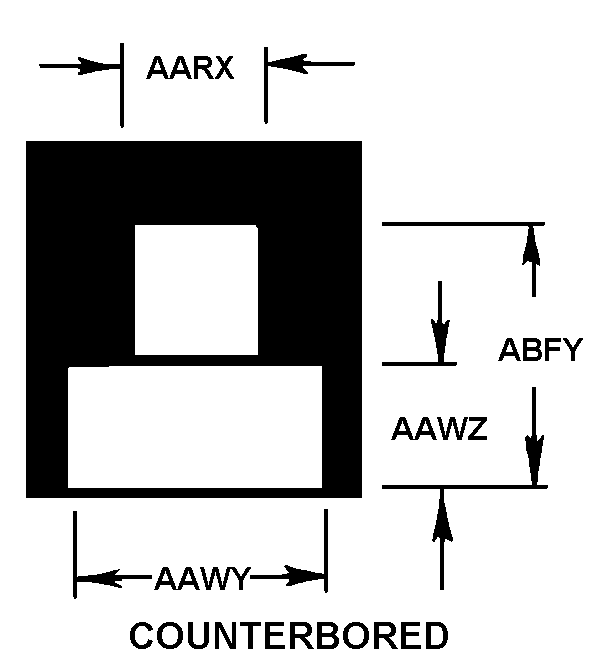

| DRIVE FACILITY STYLE | 132 COUNTERBORED |
| INSIDE DIAMETER | 0.406 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 1.000 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.630 INCHES NOMINAL |
| OVERALL DEPTH | 0.750 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 9-3570-4 |
Restrictions/Controls & Freight Information | NSN 5340-00-588-2277
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-588-2277
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FG | SX:B-52 STRATO FORTRESS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
