NSN 5340-00-582-1528 ASTM A228/A228M, ASTMA228A228M, 12Z50516
Product Details | RETAINING CLIP
5340-00-582-1528 A clip formed from resilient wire stock into a shape resembling the letter U, with each of the prongs having one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action when fitted into the groove(s) or notch(es) of the item upon which a part, shaft, pin, or a like item is to be held in place. See also PIN, LOCK; RING, RETAINING and CLIP, SPRING TENSION. For items specifically designed for aviaton, see CLIP(1), RETAINING, AVIATION.
Part Alternates: ASTM A228/A228M, ASTMA228A228M, 12Z50516, 12Z5051-6, 5340-00-582-1528, 00-582-1528, 5340005821528, 005821528
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-582-1528 | 02385 ( CLIP, RETAINING ) |

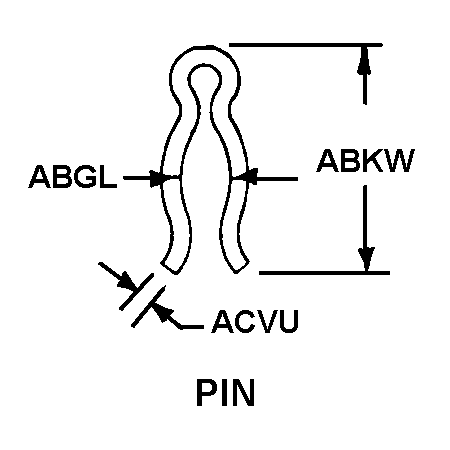

Drawings & Photos | NSN 5340-00-582-1528
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-582-1528
Technical Data | NSN 5340-00-582-1528
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-W-470 |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | A5 PIN |
| WIDTH | 0.469 INCHES NOMINAL |
| OVERALL HEIGHT | 1.359 INCHES NOMINAL |
| STOCK DIAMETER | 0.105 INCHES NOMINAL |
| MANUFACTURERS CODE | 94135 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 12Z5051-6 |
Restrictions/Controls & Freight Information | NSN 5340-00-582-1528
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094220 | CLIPS SHEET STEEL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-582-1528
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
