NSN 5340-00-579-9678 MS21919DG32, MS21919-DG32, MS21919WDG32

Product Details | LOOP CLAMP

5340-00-579-9678 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919DG32, MS21919-DG32, MS21919WDG32, AS21919WDG32, C8603ANDTYPE1VANDCLASSA, TA1718WD32X, 10117406 , 2822957, 5340-00-579-9678, 00-579-9678, 5340005799678 , 005799678

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-579-9678	17532 ( CLAMP, LOOP )

Drawings & Photos | NSN 5340-00-579-9678

Part Number	Request Date	QTY	Origin
MS21919WDG32	2023-10-296	80	United States
5340-00-579-9678	2023-06-156	2	Saudi Arabia
5340-00-579-9678	2020-07-212	1459	DIBBS
5340-00-579-9678	2020-03-77	1	DIBBS-RFPs
AS21919WDG32	2019-08-240	20	us
AS21919WDG32	2019-08-217	10	us
5340-00-579-9678	2018-04-105	3567	DIBBS
5340-00-579-9678	2018-03-87	3594	DIBBS
5340-00-579-9678	2017-10-277	3567	DIBBS
5340-00-579-9678	2016-04-120	5009	DIBBS
MS21919WDG32	2016-04-116	10	United States
5340-00-579-9678	2016-04-112	5009	DIBBS
MS21919WDG32	2015-04-107	100	US
MS21919WDG32	2013-04-101	5	US
MS21919WDG32	2012-06-178	50	PK
MS21919DG32	2010-11-333	83
5340-00-579-9678	2010-07-211	143	DIBBS
5340-00-579-9678	2010-04-117	3	United States
5340-00-579-9678	2008-09-262	12	US
MS21919DG32	2006-05-121	105	US

Cross Reference | NSN 5340-00-579-9678

Part Number	Cage Code	Manufacturer
2822957	001JK	EMBRAER S/A
2822957	FB459	EMBRAER AVIATION INTERNATIONAL
2822957	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
5340005799678	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
AS21919WDG32	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
C8603ANDTYPE1VANDCLASSA	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21919-DG32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919WDG32	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21919WDG32	A9271	GORIZIANE GROUP SPA
TA1718WD32X	84971	KIRKHILL-TA CO. DBA TA DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-579-9678

Compare

Related Products | NSN 5340-00-579-9678

5340-00-579-9808, 5340-00-579-9838, 5340-00-579-9899, 5340-00-579-9900, 5340-00-580-1140

Technical Data | NSN 5340-00-579-9678

Characteristic	Specifications
MATERIAL	RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CHROMATE BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT
OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
MATERIAL THICKNESS	0.063 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	1.484 INCHES MINIMUM AND 1.515 INCHES MAXIMUM
DISTANCE FROM LOOP CENTER TO TONGUE END	1.717 INCHES NOMINAL
LOOP INSIDE DIAMETER	1.985 INCHES MINIMUM AND 2.015 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED

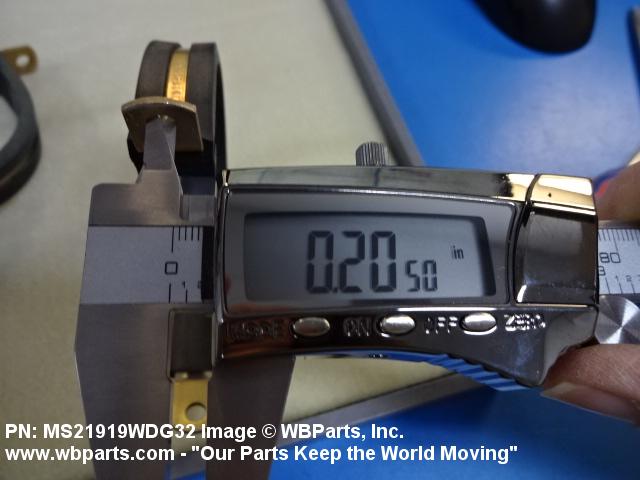

DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND A CLASS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	C8603ANDTYPE1VANDCLASSA

Restrictions/Controls & Freight Information | NSN 5340-00-579-9678

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-579-9678

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
