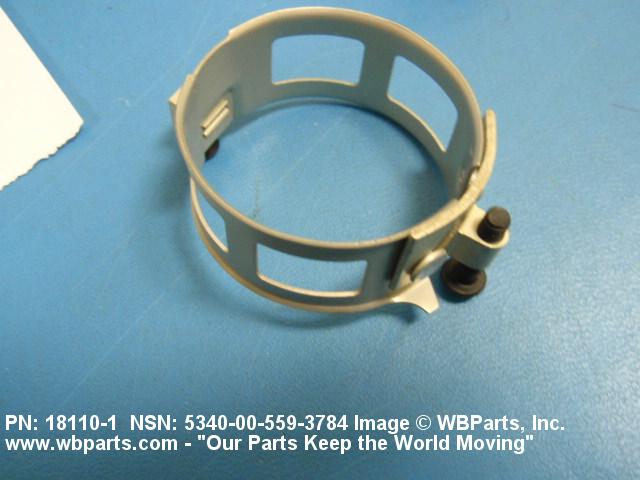

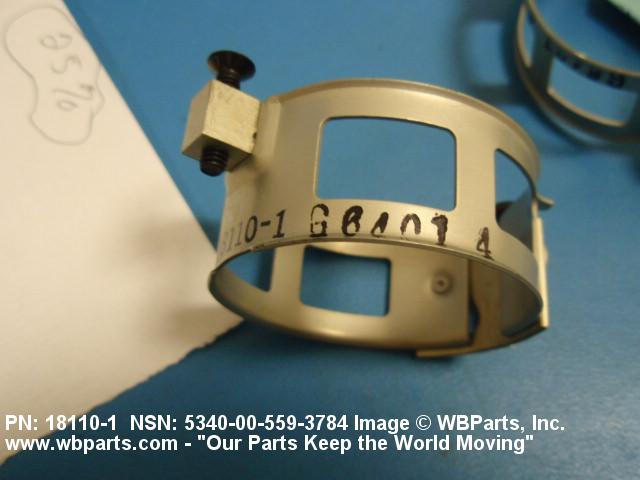

Product Details | LOOP CLAMP
5340-00-559-3784 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 181101, 18110-1, 5340-00-559-3784, 00-559-3784, 5340005593784, 005593784
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-559-3784 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-559-3784
Demand History | NSN 5340-00-559-3784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-559-3784 | 2017-12-352 | 180 | DIBBS |
| 5340-00-559-3784 | 2017-02-32 | 169 | DIBBS |
| 5340-00-559-3784 | 2016-01-19 | 132 | DIBBS |
| 5340-00-559-3784 | 2015-11-321 | 132 | DIBBS |
| 5340-00-559-3784 | 2014-04-98 | 90 | DIBBS |
| 5340-00-559-3784 | 2014-03-82 | 45 | DIBBS |
| 5340-00-559-3784 | 2014-02-54 | 55 | DIBBS |
| 5340-00-559-3784 | 2011-12-348 | 100 | United States |
| 5340-00-559-3784 | 2011-11-311 | 100 | DIBBS |
| 5340-00-559-3784 | 2011-08-220 | 75 | DIBBS |
| 5340-00-559-3784 | 2010-12-350 | 75 | DIBBS |
| 5340-00-559-3784 | 2010-09-263 | 81 | DIBBS |
| 181101 | 2009-06-163 | 13 | United States |
| 5340-00-559-3784 | 2009-01-29 | 290 | DIBBS |
| 5340-00-559-3784 | 2008-11-319 | 52 | DIBBS |
