NSN 5340-00-543-3477 10082529 , 8690468, 00-543-3477
Product Details | WEBBING STRAP
5340-00-543-3477 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 10082529 , 8690468, 5340-00-543-3477, 00-543-3477, 5340005433477, 005433477
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-543-3477 | 20659 ( STRAP, WEBBING ) |

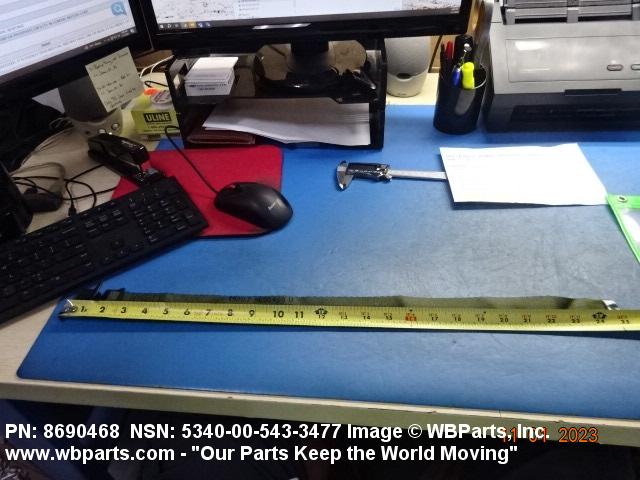

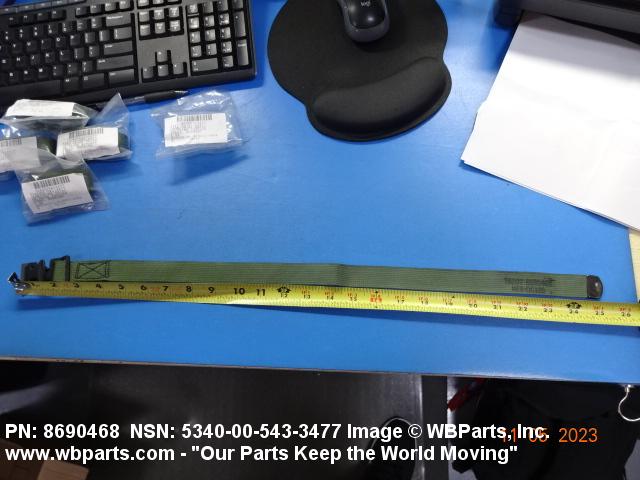

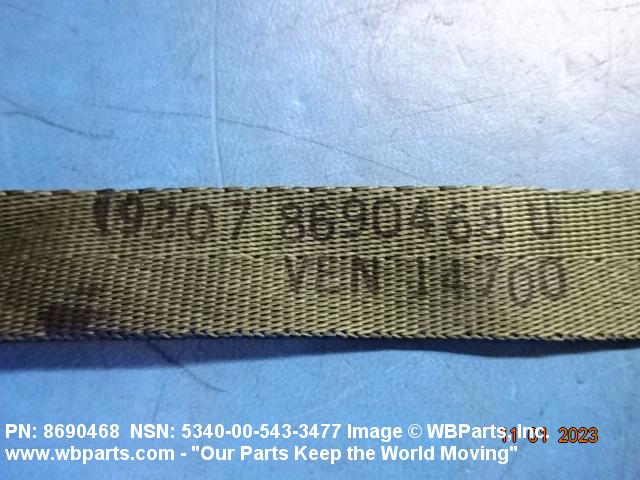

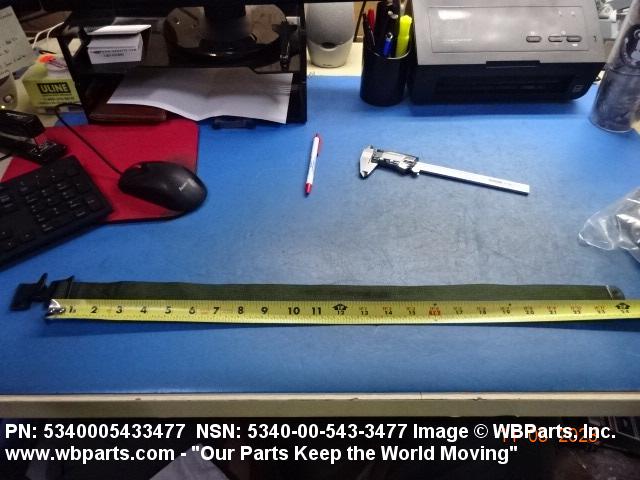

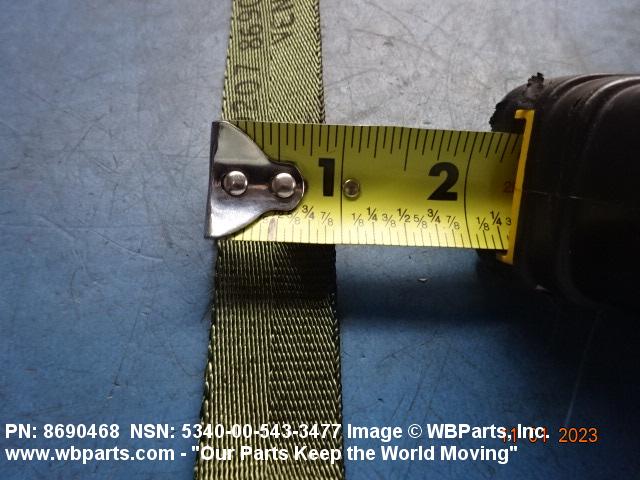

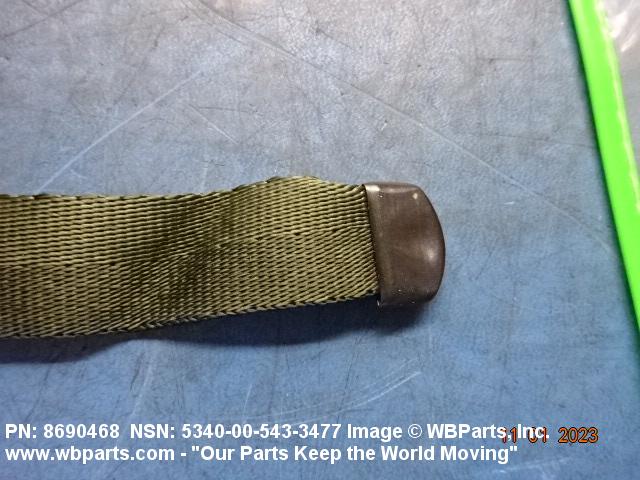

Drawings & Photos | NSN 5340-00-543-3477
Demand History | NSN 5340-00-543-3477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-543-3477 | 2024-07-213 | 12 | United States |
| 5340-00-543-3477 | 2024-07-203 | 6173 | DIBBS |
| 5340-00-543-3477 | 2023-10-297 | 341 | us |
| 5340-00-543-3477 | 2023-10-277 | 313 | us |
| 5340-00-543-3477 | 2023-10-277 | 11400 | us |
| 5340-00-543-3477 | 2023-08-234 | 9264 | US |
| 5340-00-543-3477 | 2023-06-166 | 3000 | us |
| 5340-00-543-3477 | 2023-06-160 | 163 | us |
| 5340-00-543-3477 | 2023-06-159 | 1200 | us |
| 8690468 | 2021-02-56 | 39 | US |
| 8690468 | 2021-01-15 | 10 | IT |
| 8690468 | 2021-01-11 | 50 | United States |
| 8690468 | 2021-01-11 | 100 | United States |
| 8690468 | 2021-01-11 | 10 | IT |
| 5340-00-543-3477 | 2020-04-111 | 10000 | us |
| 5340-00-543-3477 | 2020-03-90 | 2622 | US |
| 5340-00-543-3477 | 2020-03-76 | 10000 | US |
| 5340-00-543-3477 | 2020-03-71 | 1 | DIBBS-RFPs |
| 5340-00-543-3477 | 2020-02-54 | 3287 | DIBBS |
| 5340-00-543-3477 | 2019-10-280 | 2220 | DIBBS |
| 5340-00-543-3477 | 2019-04-100 | 2 | US |
| 5340-00-543-3477 | 2018-09-249 | 2601 | DIBBS |
| 5340-00-543-3477 | 2018-08-241 | 2601 | DIBBS |
| 5340-00-543-3477 | 2018-06-165 | 659 | United States |
| 5340-00-543-3477 | 2017-12-342 | 659 | DIBBS |
| 5340-00-543-3477 | 2017-11-334 | 659 | DIBBS |
| 5340-00-543-3477 | 2017-08-228 | 30 | United States |
| 5340-00-543-3477 | 2014-09-272 | 240 | PK |
| 5340-00-543-3477 | 2012-04-104 | 35 | MANUAL |
| 5340-00-543-3477 | 2011-07-201 | 84 | MANUAL |
| 5340-00-543-3477 | 2011-06-155 | 35 | MANUAL |
| 5340-00-543-3477 | 2011-06-155 | 35 | MANUAL |
| 8690468 | 2011-06-155 | 35 | PK |
| 8690468 | 2011-06-155 | 35 | PK |
| 5340-00-543-3477 | 2011-05-132 | 30 | DIBBS |
| 5340-00-543-3477 | 2011-03-68 | 193 | MANUAL |
| 5340-00-543-3477 | 2008-02-53 | 10024 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-543-3477
Related Products | NSN 5340-00-543-3477
Technical Data | NSN 5340-00-543-3477
| Characteristic | Specifications |
|---|---|
| MATERIAL | NYLON, MIL-W-27265, CLASS R |
| ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND WATER RESISTANT |

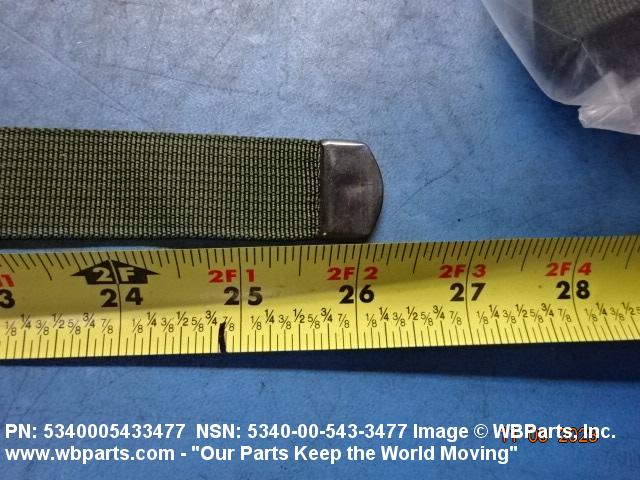

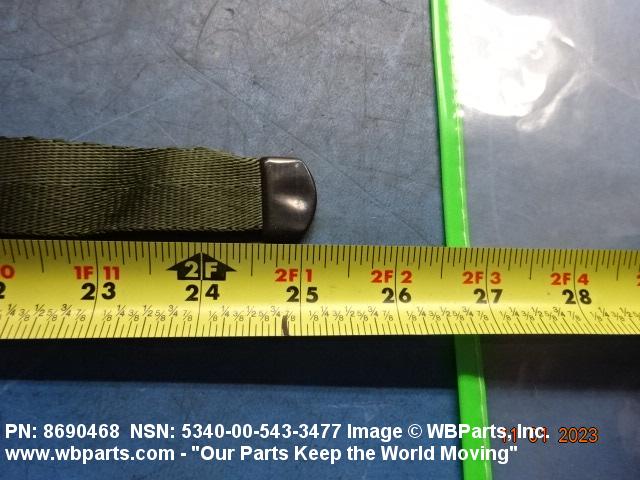

| LENGTH | 24.000 INCHES NOMINAL |

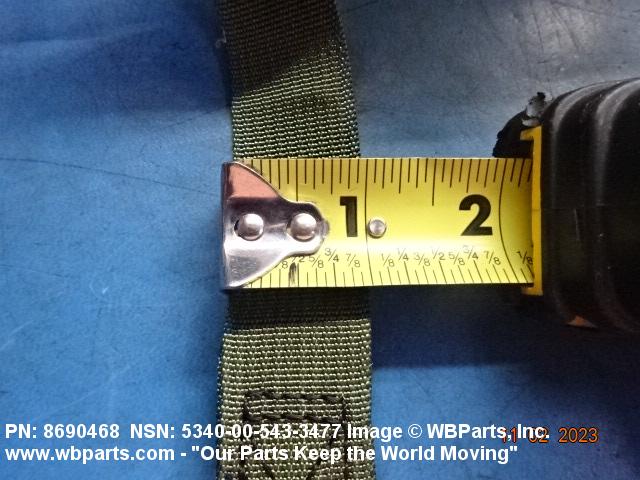

| WIDTH | 1.000 INCHES NOMINAL |
| COLOR | OLIVE DRAB |
| END TYPE | BOTH W/ATTACHMENTS |

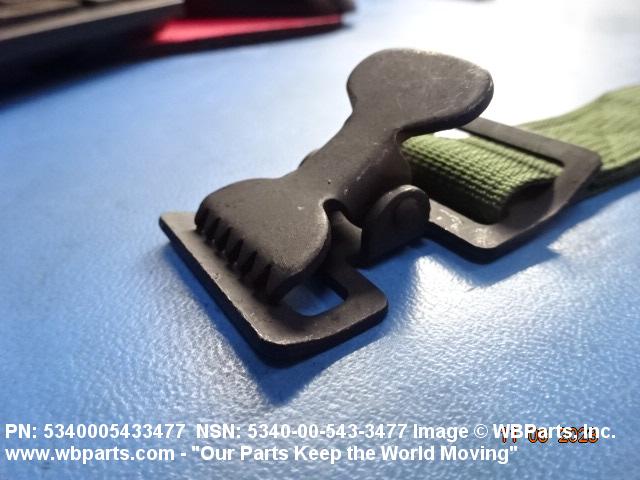

| END ATTACHMENT/FASTENING FACILITY | BUCKLE END CLIP |

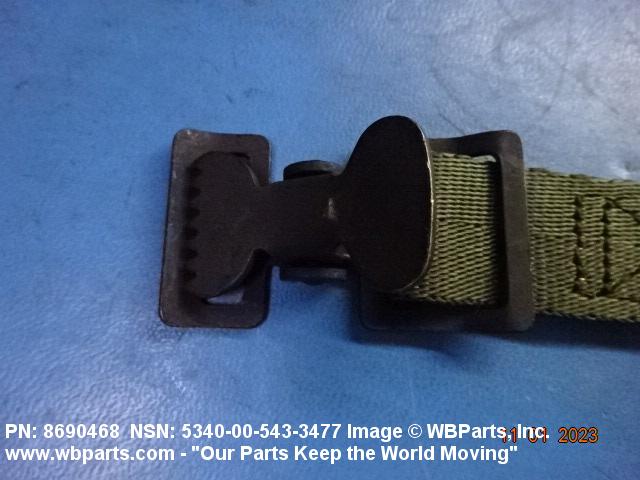

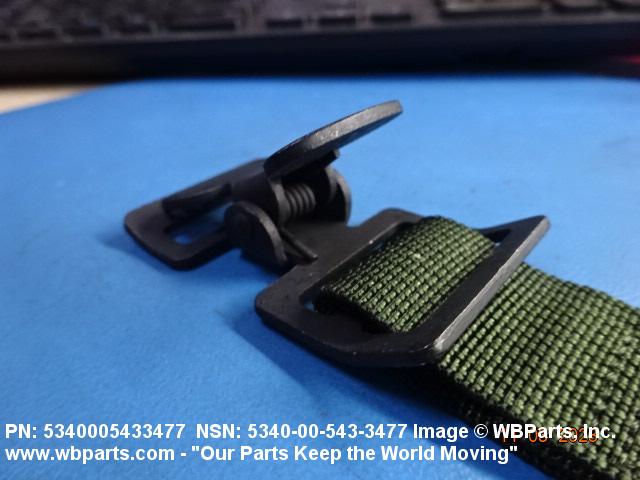

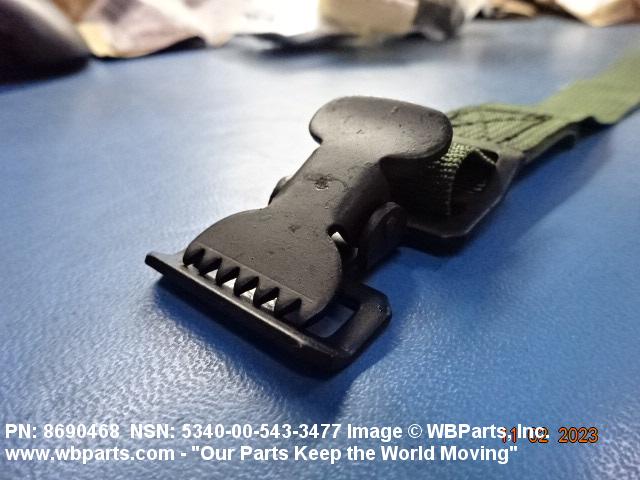

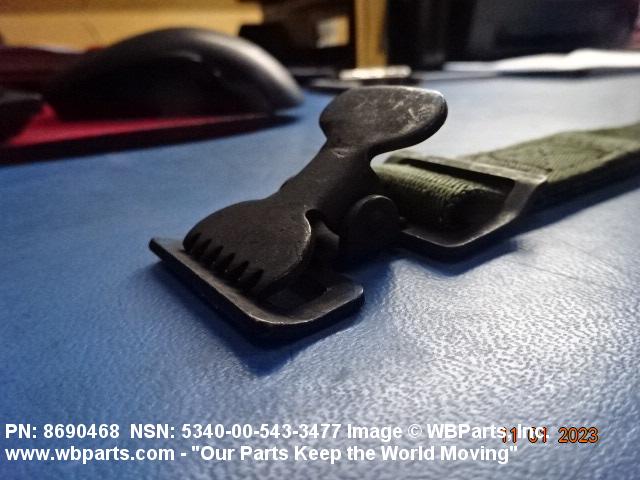

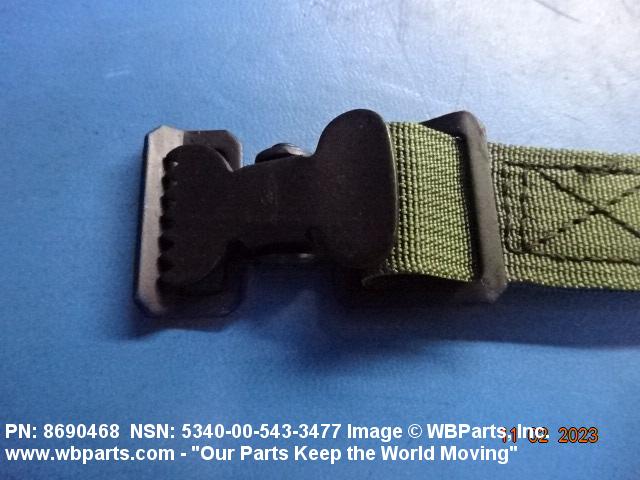

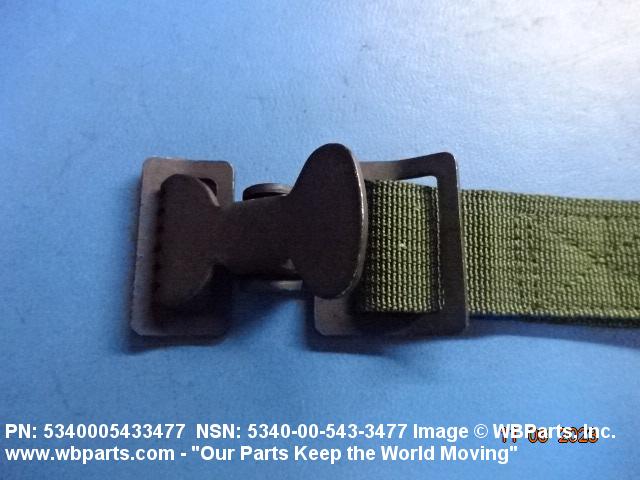

| BUCKLE STYLE DESIGNATOR | B36 SPRING ACTIVATED |
| BUCKLE MATERIAL | STEEL, QQ-S-698, COMP 1008 THRU 1020 |
| BUCKLE SURFACE TREATMENT | PAINT, BLACK |
| BUCKLE LOCATION | ON END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |

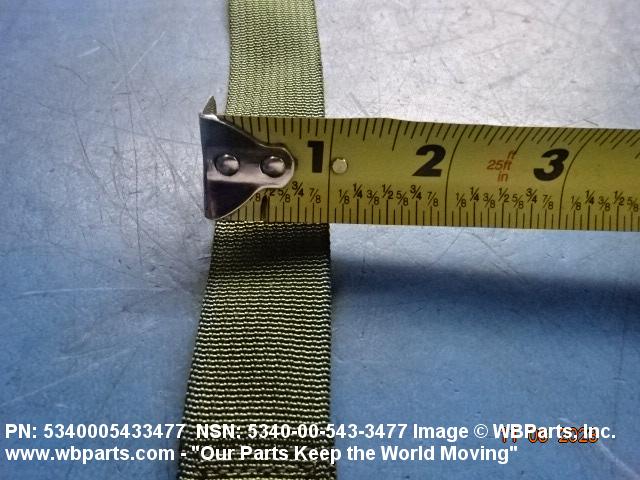

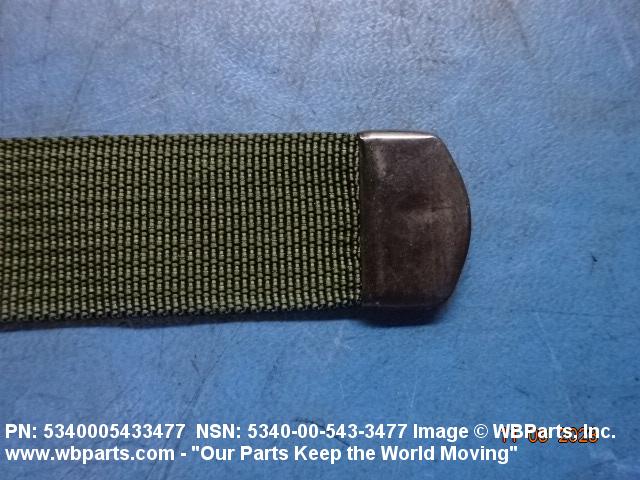

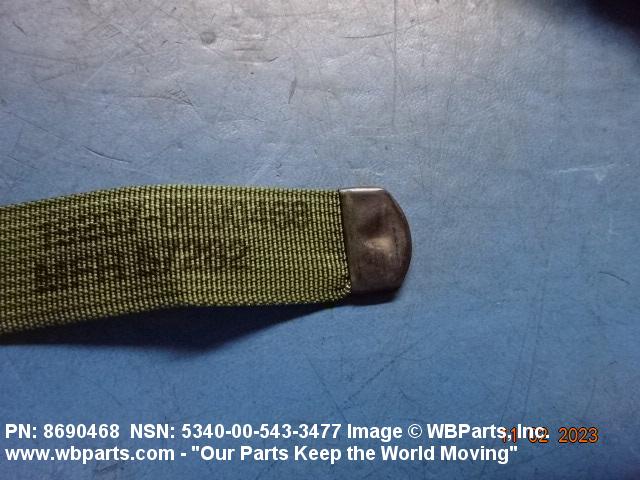

| END CLIP STYLE DESIGNATOR | E3 BALL CLIP |
| END CLIP MATERIAL | BRASS, QQ-B-613, ALLOY 260, 1/4H OR BRASS, QQ-B-613, COMP 268 |
| END CLIP QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 5340-00-543-3477
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-543-3477
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
