NSN 5340-00-523-1278 76032210, 760-32-2-10, 00-523-1278
Product Details | RETAINING STRAP
5340-00-523-1278 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: 76032210, 760-32-2-10, 5340-00-523-1278, 00-523-1278, 5340005231278, 005231278
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-523-1278 | 05072 ( STRAP, RETAINING ) |

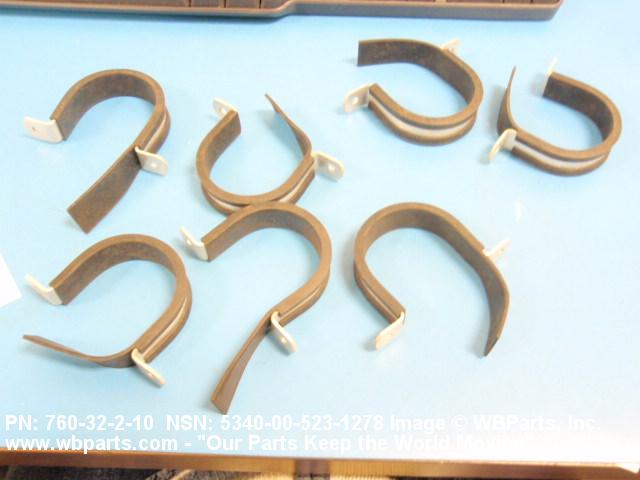

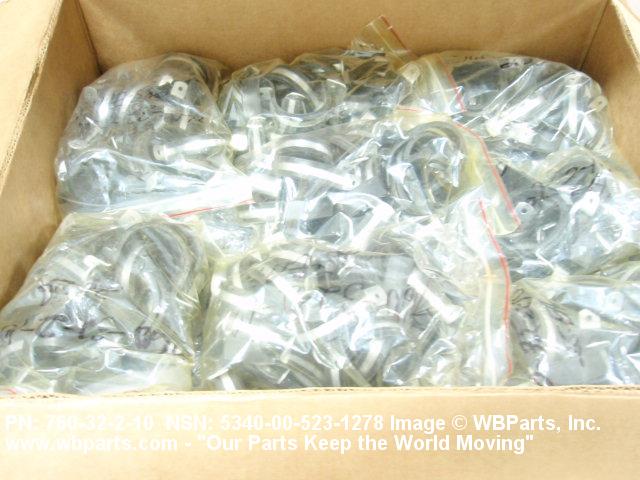

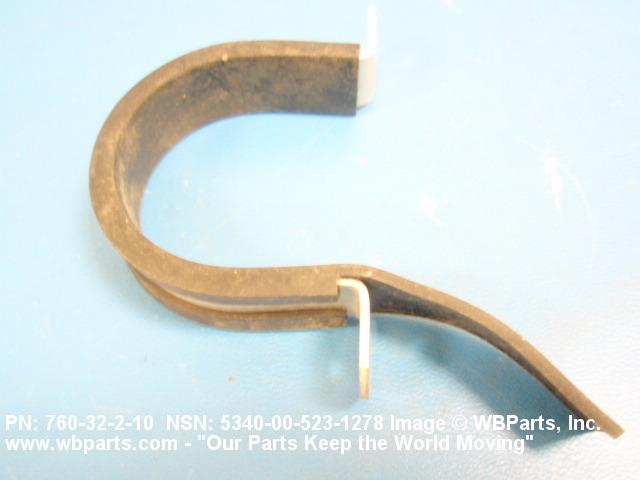

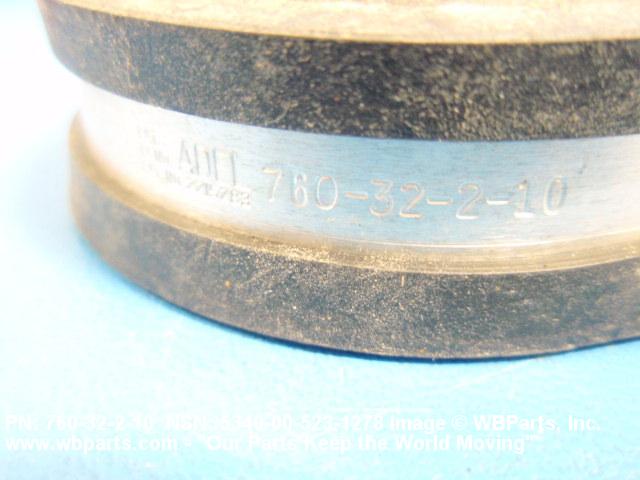

Drawings & Photos | NSN 5340-00-523-1278
Demand History | NSN 5340-00-523-1278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 760-32-2-10 | 2024-10-284 | 143 | DIBBS |
| 5340-00-523-1278 | 2023-06-158 | 30 | United States |
| 760-32-2-10 | 2023-03-68 | 411 | DIBBS |
| 760-32-2-10 | 2023-02-54 | 162 | DIBBS |
| 760-32-2-10 | 2022-07-209 | 216 | DIBBS |
| 760-32-2-10 | 2022-02-34 | 159 | DIBBS |
| 5340-00-523-1278 | 2021-10-293 | 5 | US |
| 760-32-2-10 | 2021-03-78 | 310 | DIBBS |
| 760-32-2-10 | 2021-03-70 | 310 | DIBBS |
| 760-32-2-10 | 2020-05-124 | 257 | DIBBS |
| 5340-00-523-1278 | 2018-11-305 | 366 | DIBBS |
| 5340-00-523-1278 | 2018-10-297 | 366 | DIBBS |
| 5340-00-523-1278 | 2010-03-77 | 400 | United States |
| 5340-00-523-1278 | 2010-01-25 | 400 | DIBBS |
| 5340-00-523-1278 | 2009-07-187 | 1178 | DIBBS |
| 5340-00-523-1278 | 2009-05-131 | 385 | DIBBS |
| 5340-00-523-1278 | 2009-02-54 | 1294 | DIBBS |
| 5340-00-523-1278 | 2008-12-336 | 679 | DIBBS |
| 5340-00-523-1278 | 2008-09-248 | 1481 | DIBBS |
| 5340-00-523-1278 | 2008-02-58 | 835 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-523-1278
Related Products | NSN 5340-00-523-1278
Technical Data | NSN 5340-00-523-1278
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-362, T4-CANCELED |

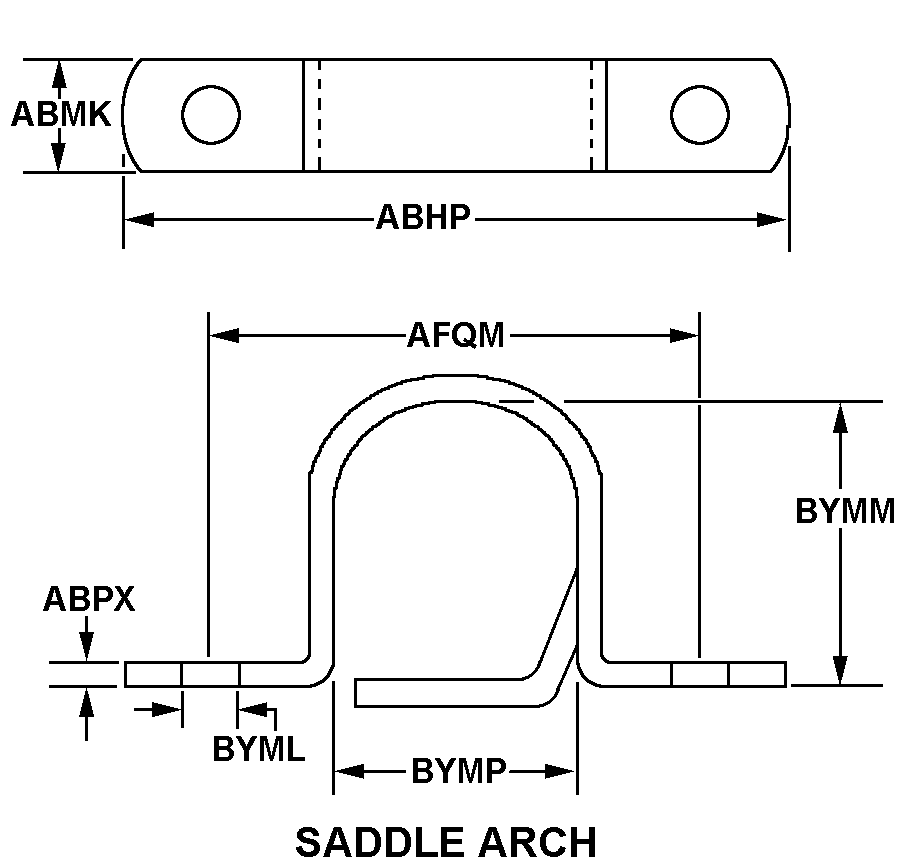

| STYLE DESIGNATOR | A20 SADDLE ARCH |
| OVERALL LENGTH | 3.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.064 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 3.063 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.199 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 2.031 INCHES NOMINAL |
| INSIDE DIAMETER/ARCH LENGTH | 2.000 INCHES NOMINAL |
| CUSHION | INCLUDED |
| CUSHIONING MATERIAL | RUBBER, SYNTHETIC |
| MOUNTING PAD | NOT INCLUDED |
| MANUFACTURERS CODE | 83930 |
| DESIGN CONTROL REFERENCE | 760-32-2-10 |
Restrictions/Controls & Freight Information | NSN 5340-00-523-1278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-523-1278
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
