Product Details | FLARE LOCK FASTENER
5340-00-514-2873 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: 6802, 5340-00-514-2873, 00-514-2873, 5340005142873, 005142873
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-514-2873 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-00-514-2873
Cross Reference | NSN 5340-00-514-2873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6802 | 17875 | EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-514-2873
Technical Data | NSN 5340-00-514-2873
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E1 COUNTERBORED SLEEVE |
| MOUNTING METHOD | SCREW |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| HEAD STYLE | U1 DISHED COUNTERSUNK |
| HEAD DIAMETER | 0.461 INCHES NOMINAL |
| HEAD HEIGHT | 0.082 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |

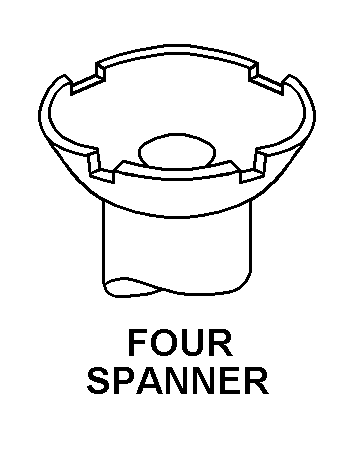

| INTERNAL DRIVE STYLE | W4 FOUR SPANNER |
