Product Details | LOOP CLAMP

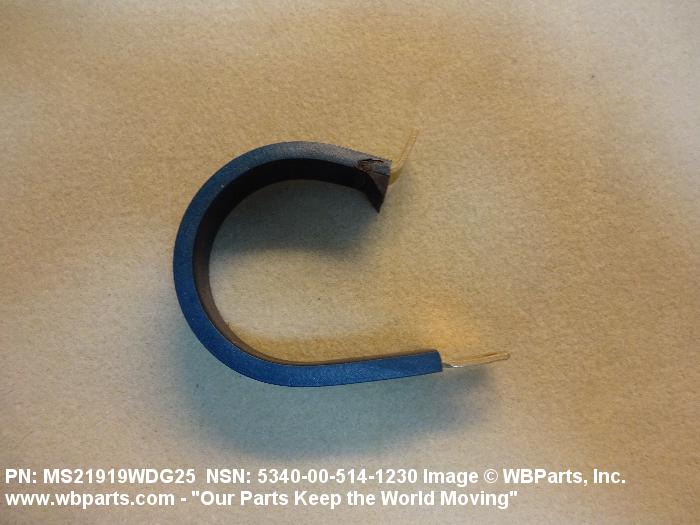

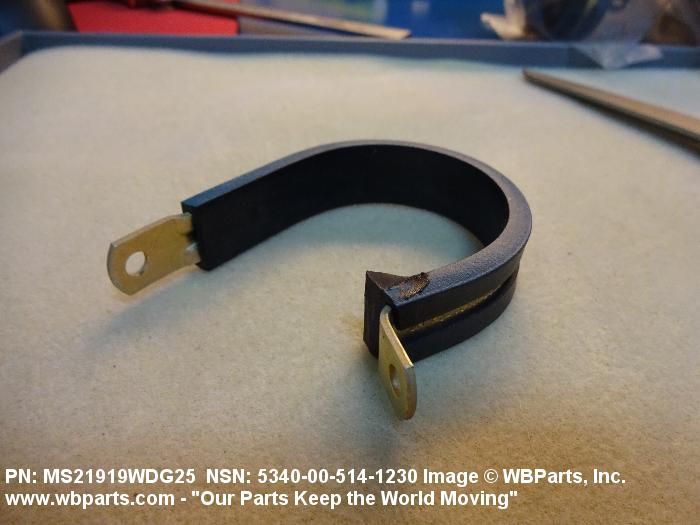

5340-00-514-1230 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21919WDG25, C8603TYPEIVCLASSA, RR293 , 6260019213, 626-001-9213 , 9198026024, 91-98026-024, 5340-00-514-1230, 00-514-1230, 5340005141230, 005141230
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-514-1230 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-514-1230
Demand History | NSN 5340-00-514-1230
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919WDG25 | 2023-01-11 | 60 | IN |
| 5340-00-514-1230 | 2020-03-77 | 1 | DIBBS-RFPs |
| 5340-00-514-1230 | 2018-12-338 | 1 | DIBBS-KIT |
| MS21919WDG25 | 2018-12-338 | 1 | |
| 5340-00-514-1230 | 2016-03-90 | 3130 | DIBBS |
| 5340-00-514-1230 | 2015-06-176 | 1 | DIBBS-RFPs |
| MS21919WDG25 | 2012-11-310 | 50 |
Cross Reference | NSN 5340-00-514-1230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 91-98026-024 | 0WLU1 | GENERAL DYNAMICS CORP CONVAIR DIV |
| 91-98026-024 | 14170 | HUGHES MISSILE SYSTEMS CO SAN DIEGO |
| 91-98026-024 | 63910 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 91-98026-024 | 7B709 | TRACOR FLIGHT SYSTEMS INC SUB OF TRACOR INC |
| C8603TYPEIVCLASSA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21919WDG25 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-514-1230
Technical Data | NSN 5340-00-514-1230
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | CHROMATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | M1L-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

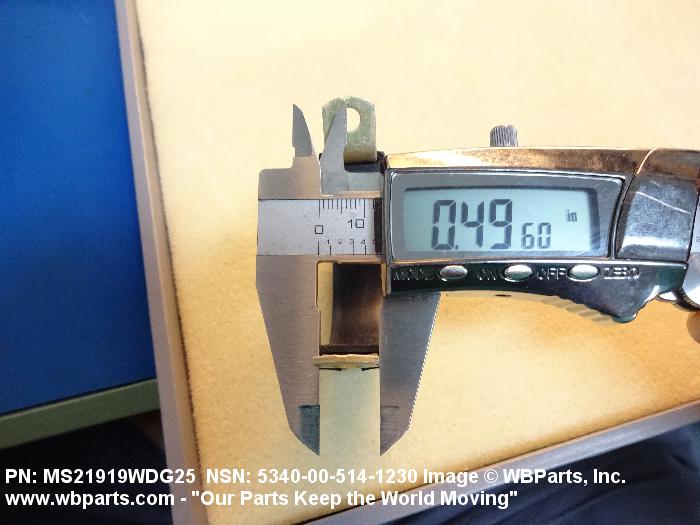

| OVERALL WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

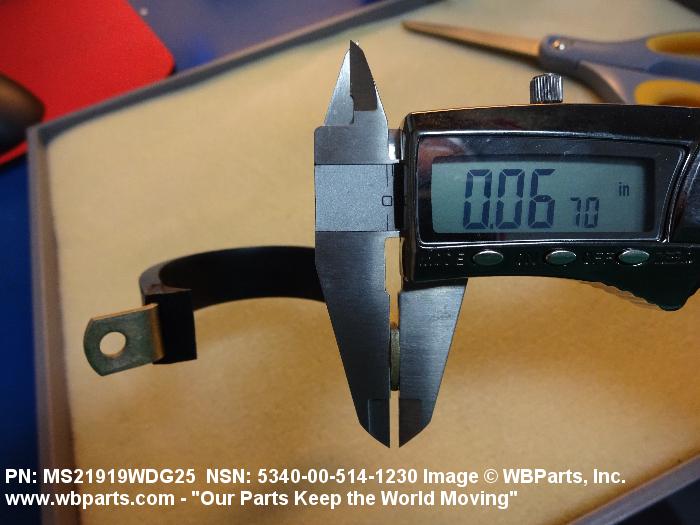

| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |

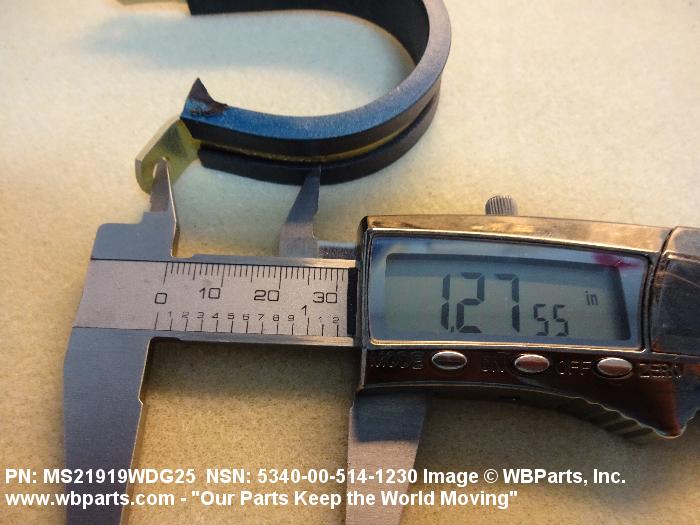

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.266 INCHES MINIMUM AND 1.296 INCHES MAXIMUM |

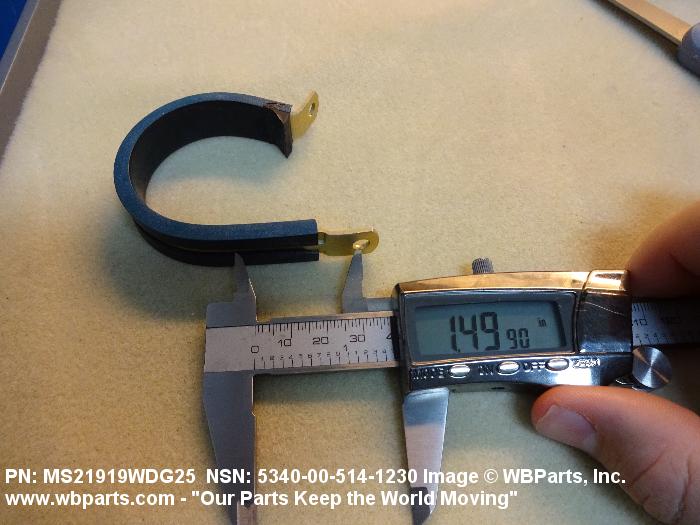

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.499 INCHES NOMINAL |

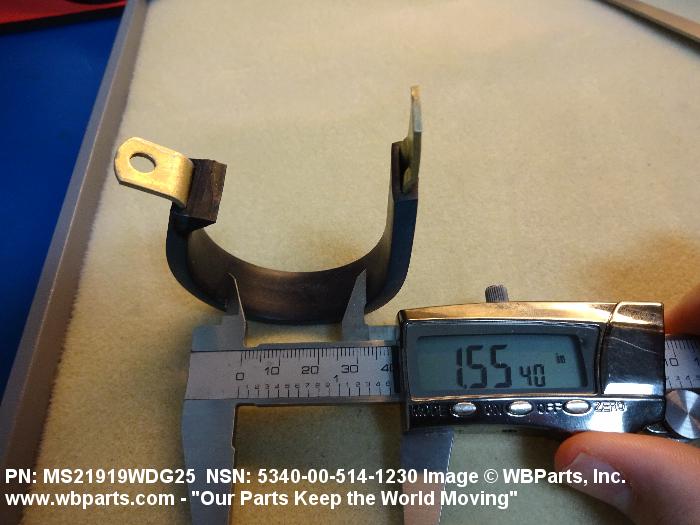

| LOOP INSIDE DIAMETER | 1.548 INCHES MINIMUM AND 1.578 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

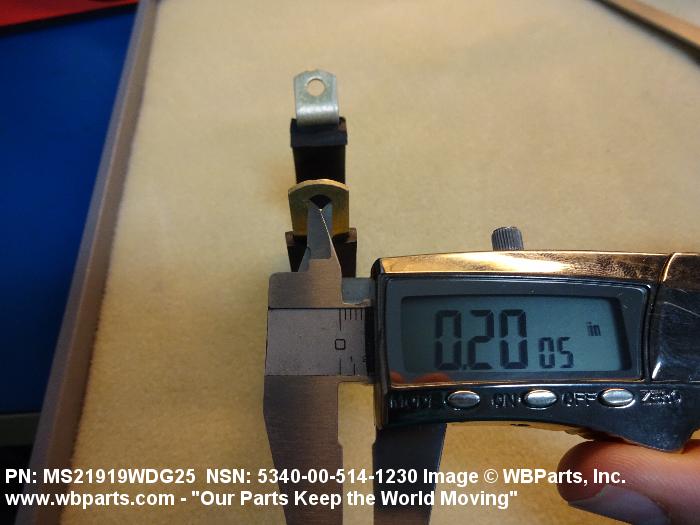

| DIAMETER | 0.204 INCHES NOMINAL |
