NSN 5340-00-500-1468 NAS1715C16K, 00-500-1468, 005001468
Product Details | LOOP CLAMP
5340-00-500-1468 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: NAS1715C16K, 5340-00-500-1468, 00-500-1468, 5340005001468, 005001468
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-500-1468 | 17532 ( CLAMP, LOOP ) |

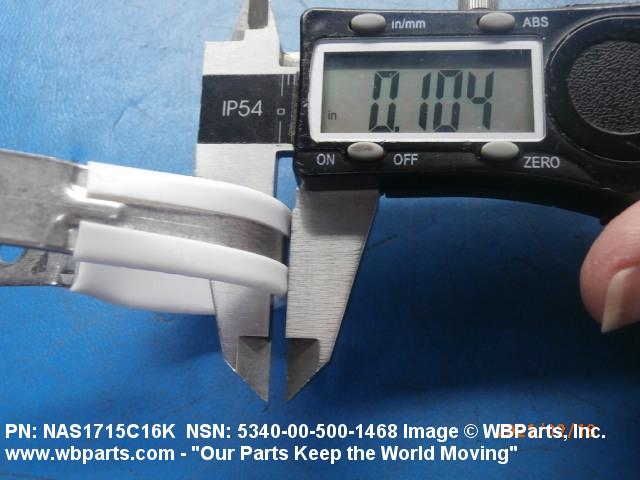

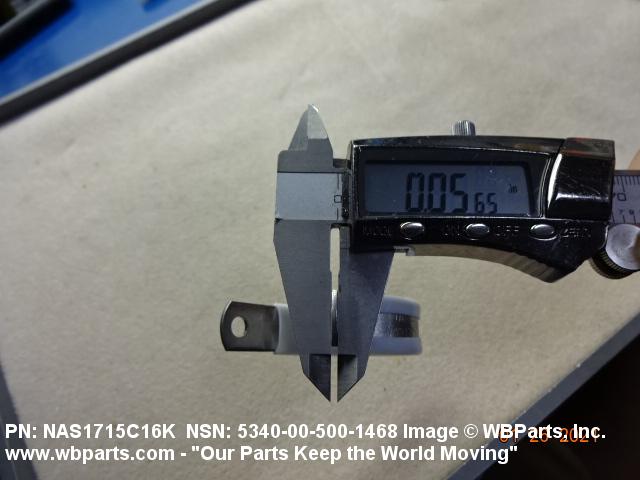

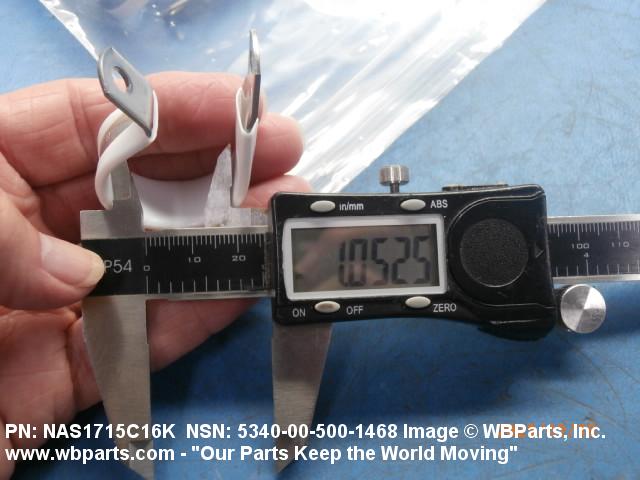

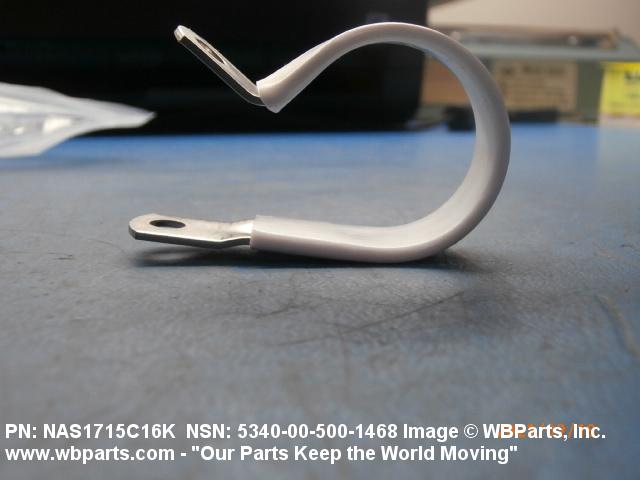

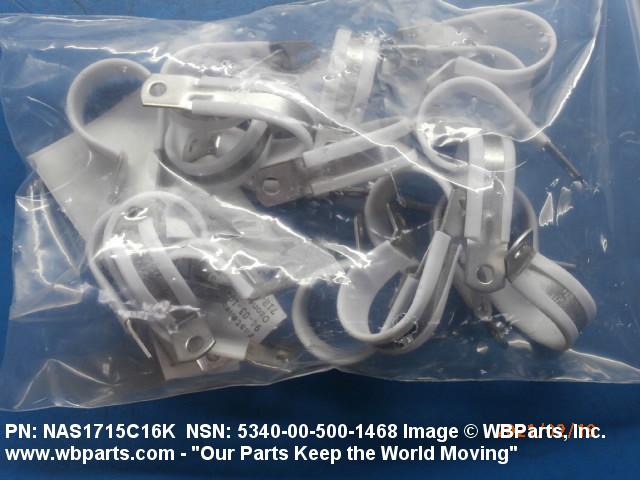

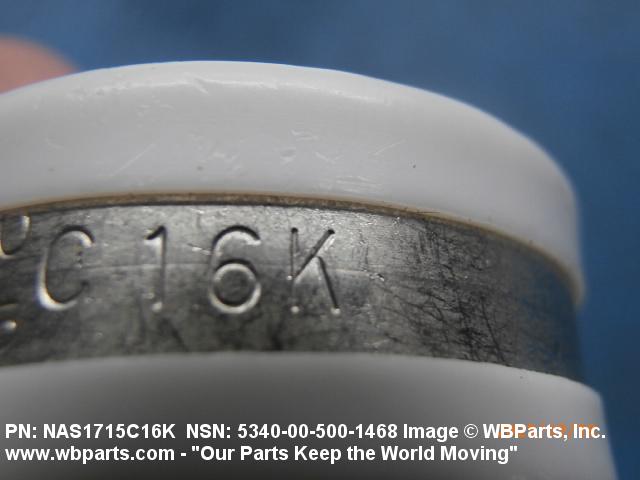

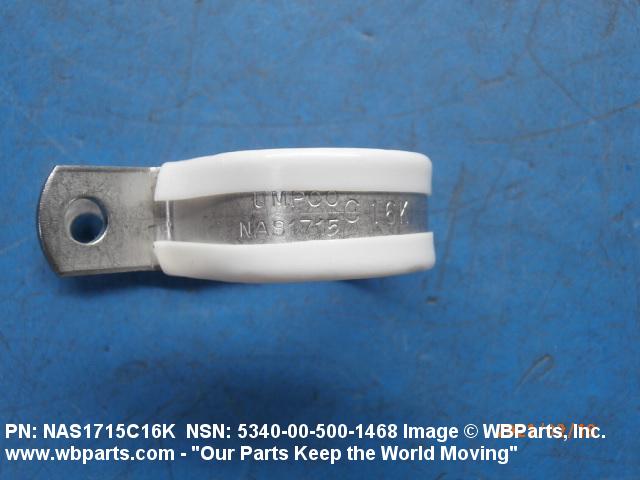

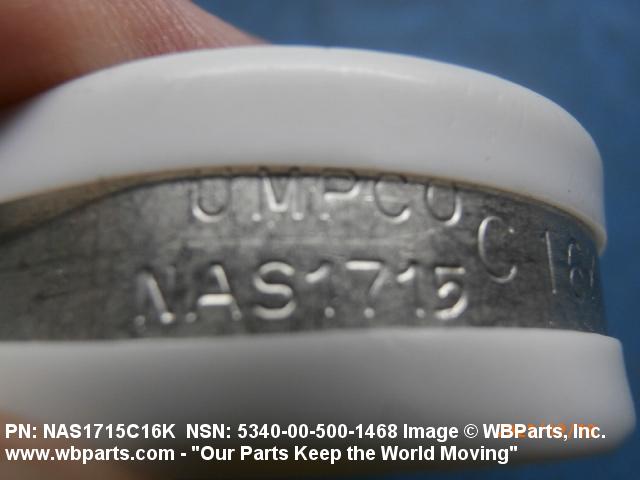

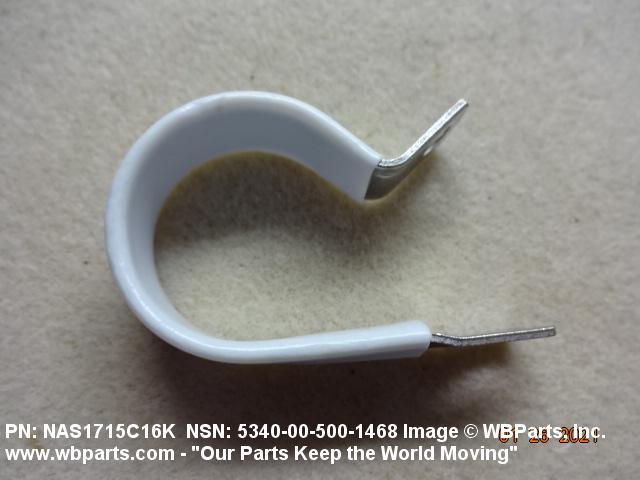

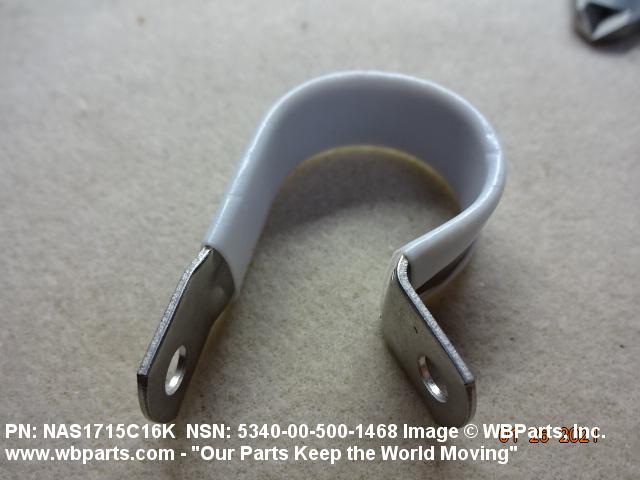

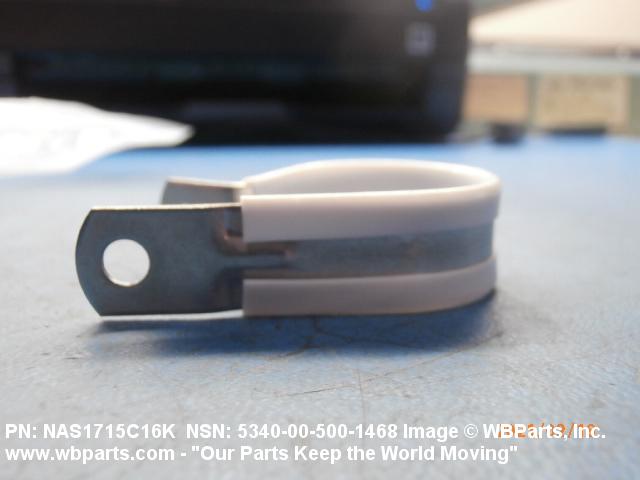

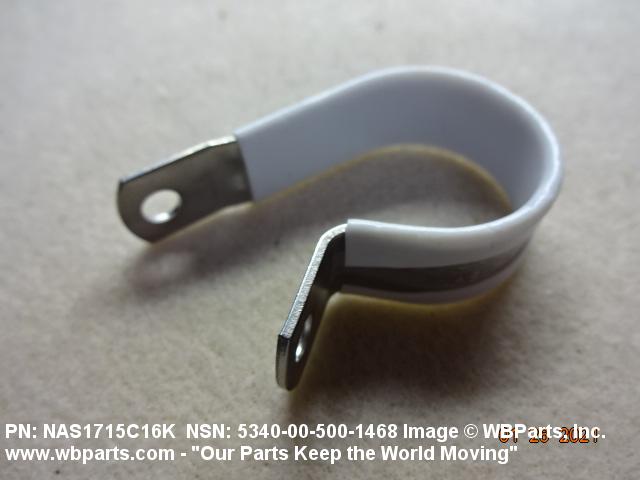

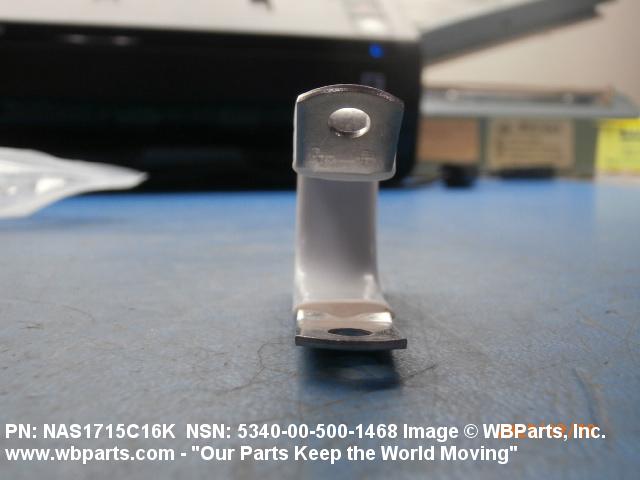

Drawings & Photos | NSN 5340-00-500-1468
Demand History | NSN 5340-00-500-1468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-500-1468 | 2021-02-42 | 20 | United States |
| NAS1715C16K | 2021-01-13 | 14 | United States |
| 5340-00-500-1468 | 2021-01-12 | 20 | United States |
| 5340-00-500-1468 | 2021-01-12 | 20 | United States |
| NAS1715C16K | 2018-10-281 | 27 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-500-1468
Technical Data | NSN 5340-00-500-1468
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 321 BAND ASBESTOS CHRYSOTILE AND COPPER AND PLASTIC POLYTETRAFLUOROETHYLENE CUSHION |
| SURFACE TREATMENT | PASSIVATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

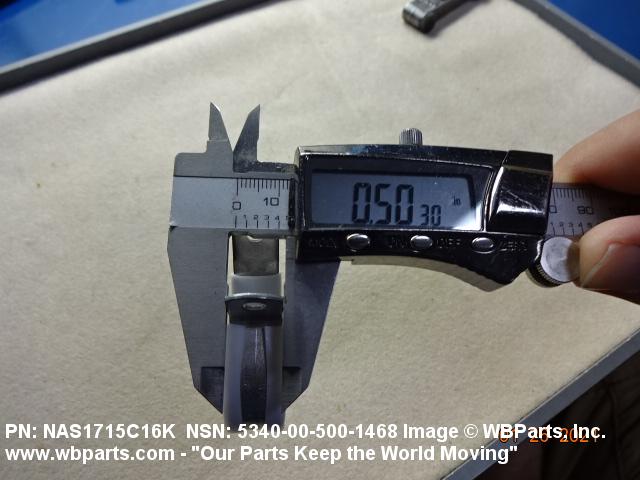

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

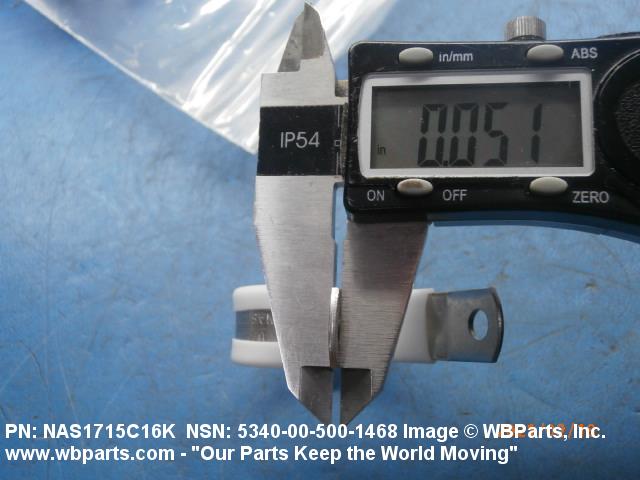

| MATERIAL THICKNESS | 0.051 INCHES NOMINAL |

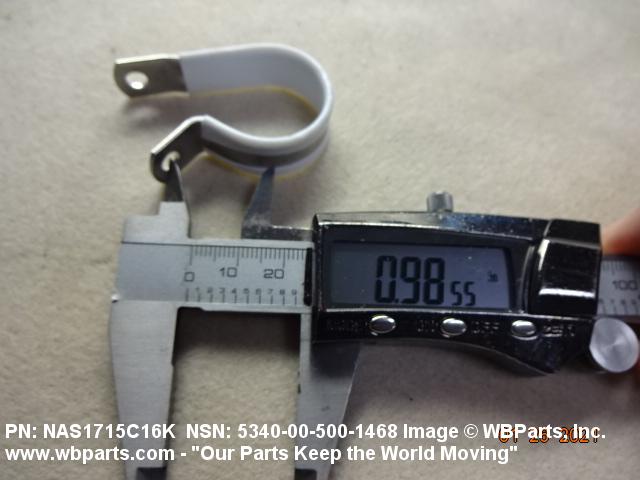

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.975 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |

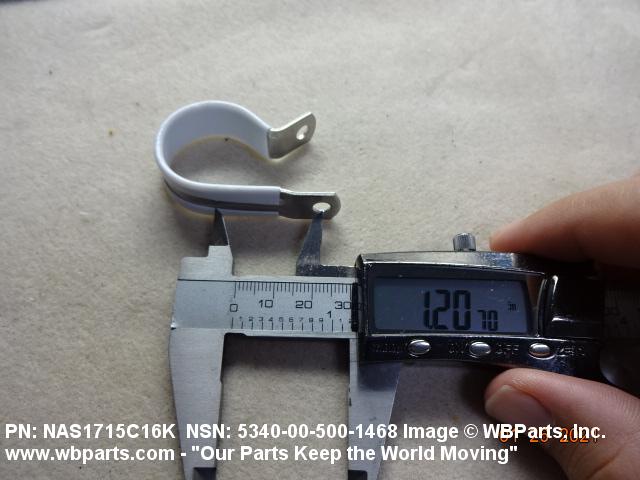

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.194 INCHES MINIMUM AND 1.224 INCHES MAXIMUM |

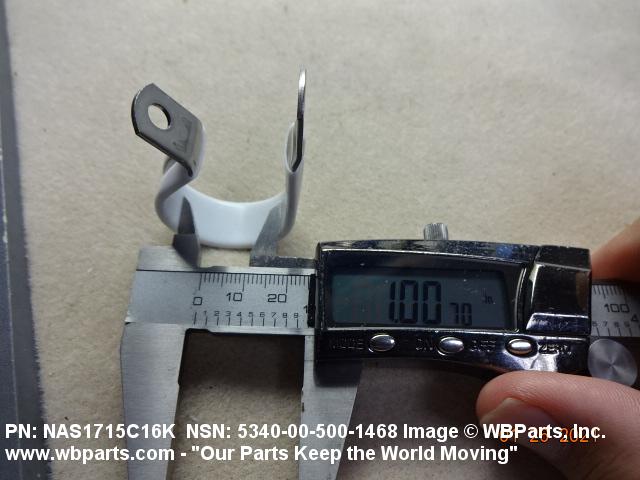

| LOOP INSIDE DIAMETER | 0.985 INCHES MINIMUM AND 1.015 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

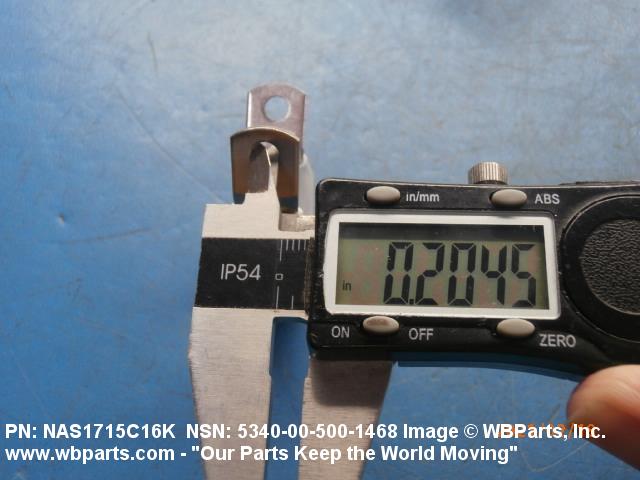

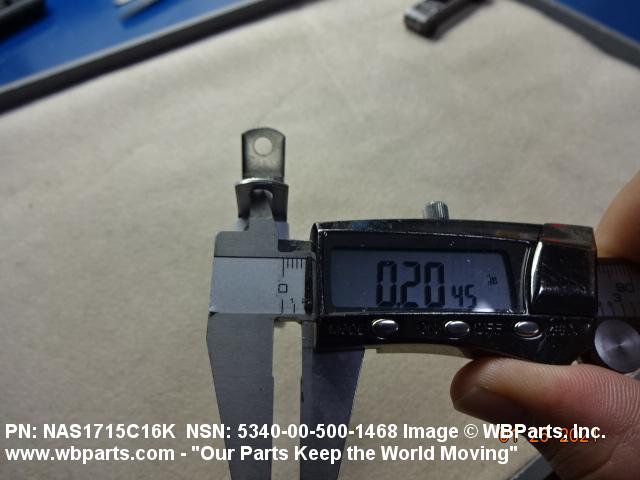

| DIAMETER | 0.204 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1715 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-00-500-1468
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
