NSN 5340-00-489-5238 AR33TYPE1, 00-489-5238, 004895238
Product Details | DOOR HANDLE
5340-00-489-5238 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: AR33TYPE1, 5340-00-489-5238, 00-489-5238, 5340004895238, 004895238
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-489-5238 | 18073 ( HANDLE, DOOR ) |

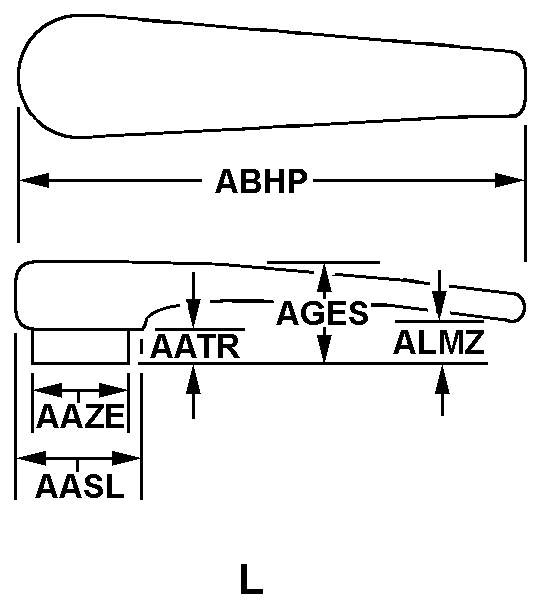

Drawings & Photos | NSN 5340-00-489-5238
Demand History | NSN 5340-00-489-5238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-489-5238 | 2009-08-232 | 2 | Canada |
Cross Reference | NSN 5340-00-489-5238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR33TYPE1 | 80477 | ADAMS RITE AEROSPACE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-489-5238
Technical Data | NSN 5340-00-489-5238
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| STYLE DESIGNATOR | C18 L |
| HEAD DIAMETER | 0.750 INCHES NOMINAL |
| SHANK LENGTH | 0.160 INCHES NOMINAL |
| SHANK DIAMETER | 0.622 INCHES MINIMUM AND 0.628 INCHES MAXIMUM |
| OVERALL LENGTH | 4.440 INCHES NOMINAL |
| HANDLE HEIGHT | 1.100 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.410 INCHES NOMINAL |
| SHAFT ACCOMMODATION STYLE | V2 SQUARE |
| SPECIAL FEATURES | HOLE DRILLED IN HEAD 0.144 IN. DIA BY 0.600 IN. DEEP COUNTERSUNK 82 DEG BY 0.281 IN. DIA! SHANK GROOVE FOR RETRAINING RING 0.579 IN ID BY 0.035 IN. THK |
| MANUFACTURERS CODE | 80477 |
| DESIGN CONTROL REFERENCE | AR33TYPE1 |
Restrictions/Controls & Freight Information | NSN 5340-00-489-5238
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
