NSN 5340-00-489-0982 A166, 00-489-0982, 004890982
Product Details | VENT PLUG
5340-00-489-0982 A ported item with or without external threads. The port(s) may contain a filtering disk or WIRE FABRIC. It is designed to be inserted into an opening in a cylinder, pump, regulator, valve, housing, casing, or the like, to permit the free flow of fluid from or to the atmosphere. Excludes BREATHER.
Part Alternates: A166, 5340-00-489-0982, 00-489-0982, 5340004890982, 004890982
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1970 | 00-489-0982 | 28458 ( PLUG, VENT ) |

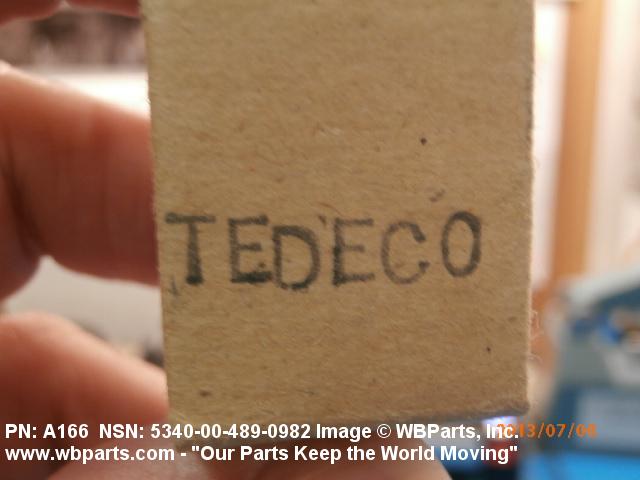

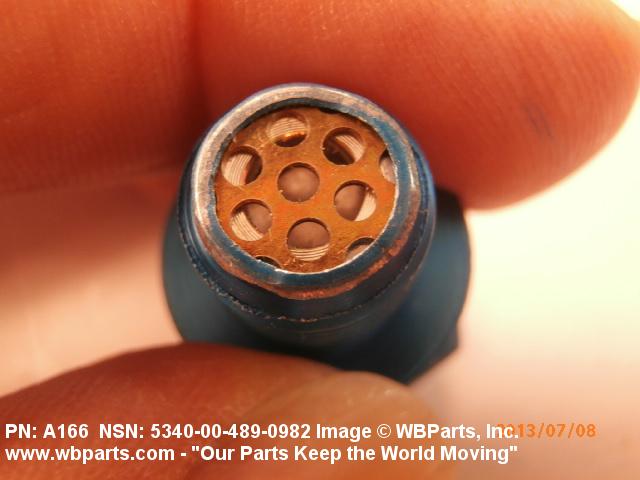

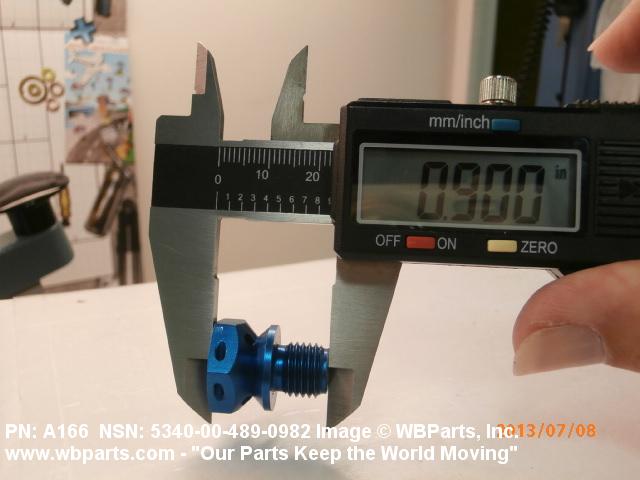

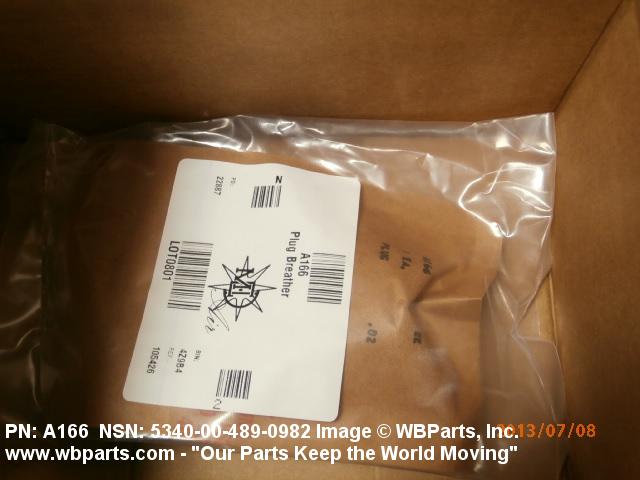

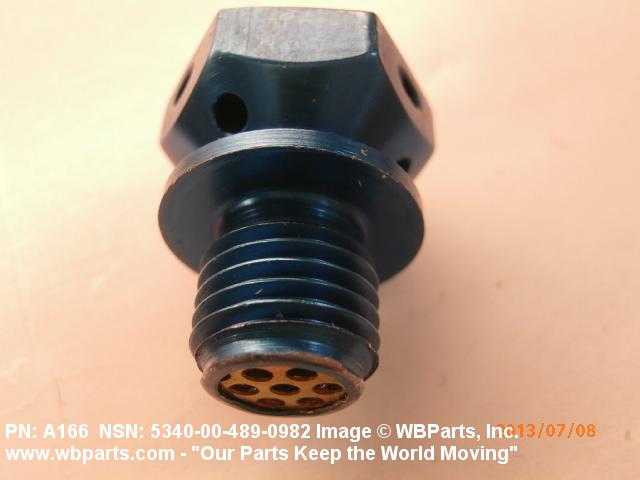

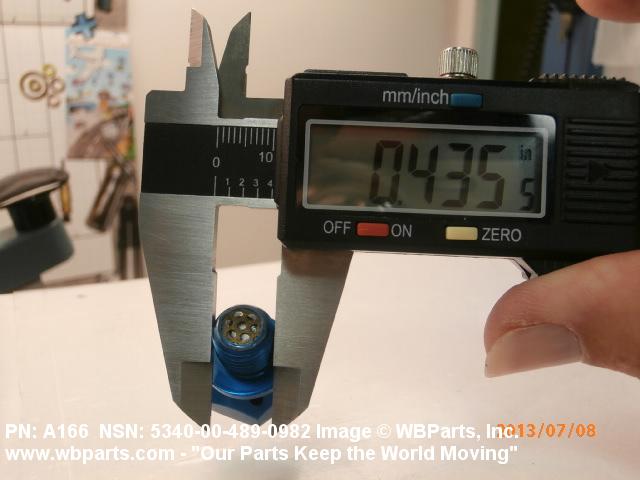

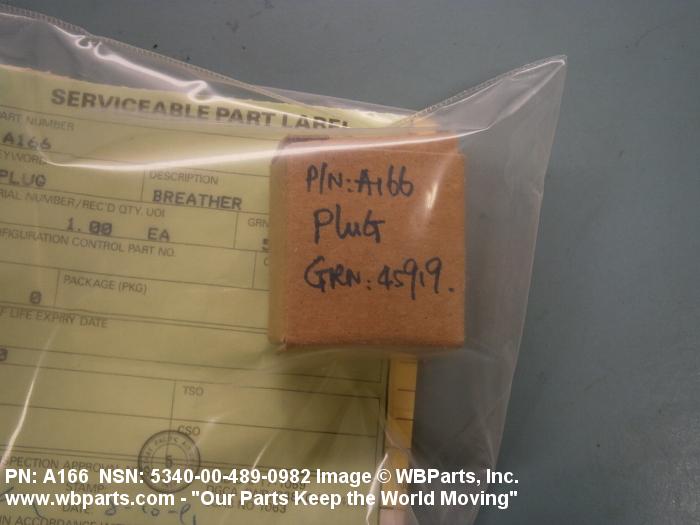

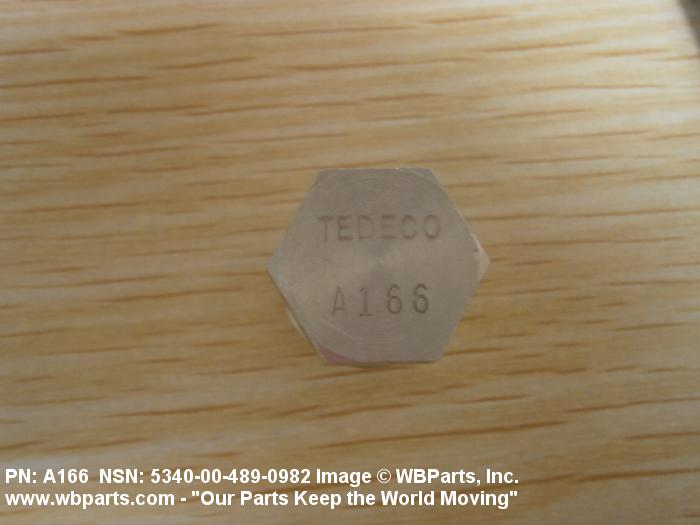

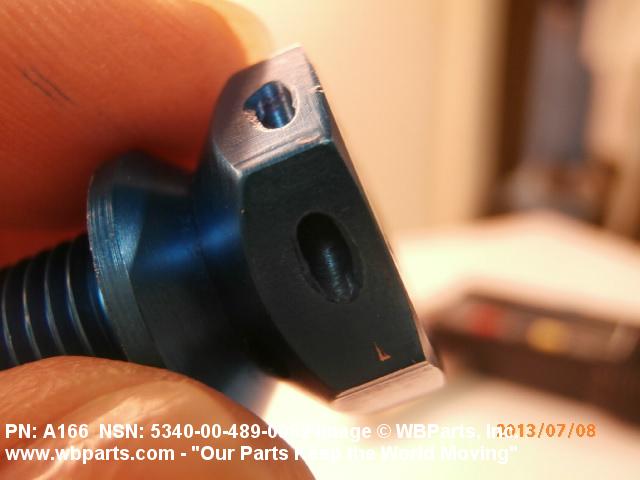

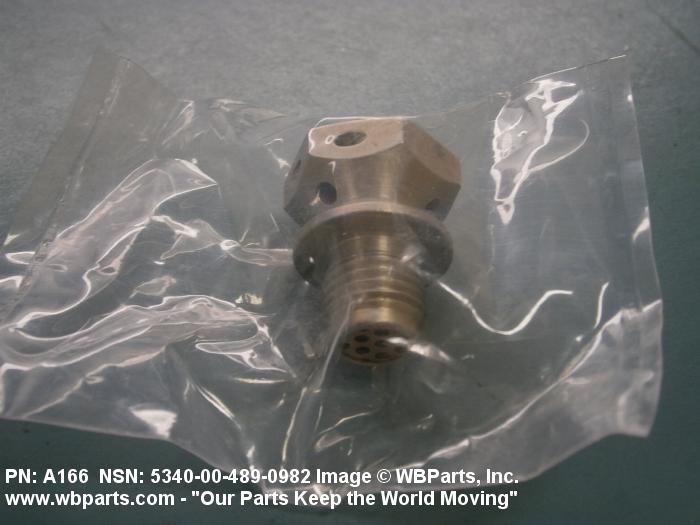

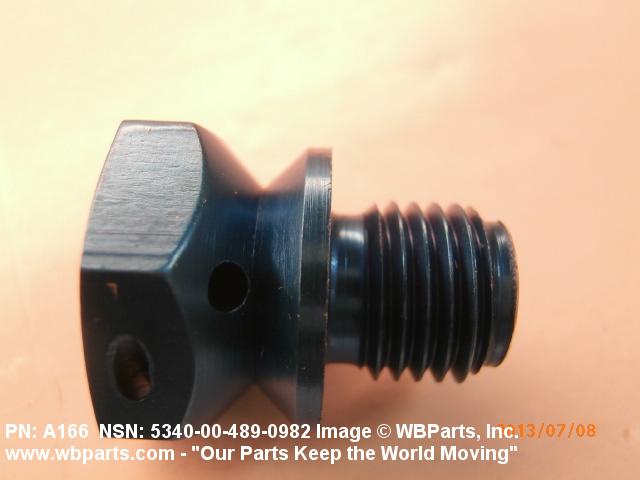

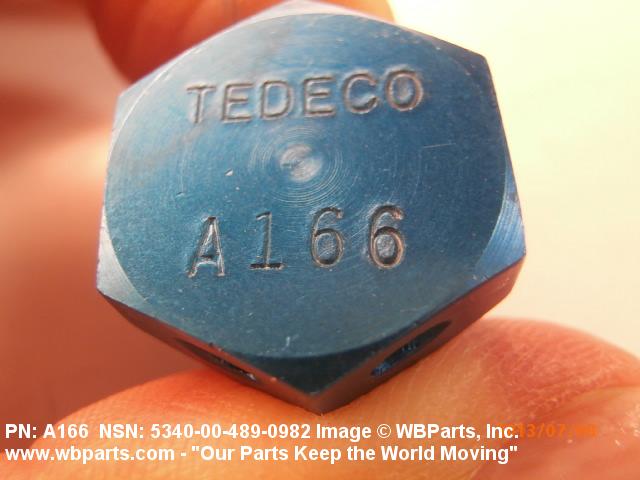

Drawings & Photos | NSN 5340-00-489-0982
Demand History | NSN 5340-00-489-0982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A166 | 2024-04-95 | 8 | DIBBS |
| 5340-00-489-0982 | 2024-03-80 | 8 | DIBBS |
| A166 | 2023-03-88 | 38 | DIBBS |
| A166 | 2023-03-82 | 24 | DIBBS |
| A166 | 2023-02-54 | 33 | DIBBS |
| A166 | 2023-02-52 | 42 | DIBBS |
| A166 | 2022-09-262 | 52 | DIBBS |
| A166 | 2022-07-188 | 14 | DIBBS |
| A166 | 2021-02-40 | 12 | DIBBS |
| A166 | 2021-02-32 | 12 | DIBBS |
| A166 | 2020-11-311 | 12 | DIBBS |
| A166 | 2020-11-309 | 48 | DIBBS |
| A166 | 2020-10-304 | 12 | DIBBS |
| A166 | 2020-10-289 | 48 | DIBBS |
| 5340-00-489-0982 | 2018-07-204 | 66 | DIBBS |
| 5340-00-489-0982 | 2018-07-196 | 66 | DIBBS |
| 5340-00-489-0982 | 2018-05-151 | 15 | DIBBS |
| 5340-00-489-0982 | 2018-05-143 | 15 | DIBBS |
| 5340-00-489-0982 | 2018-01-17 | 85 | DIBBS |
| 5340-00-489-0982 | 2018-01-07 | 85 | DIBBS |
| 5340-00-489-0982 | 2017-11-333 | 16 | DIBBS |
| 5340-00-489-0982 | 2017-11-325 | 90 | DIBBS |
| 5340-00-489-0982 | 2017-10-276 | 35 | DIBBS |
| 5340-00-489-0982 | 2017-09-267 | 35 | DIBBS |
| 5340-00-489-0982 | 2017-04-96 | 49 | DIBBS |
| 5340-00-489-0982 | 2017-04-96 | 1 | DIBBS |
| 5340-00-489-0982 | 2017-03-88 | 49 | DIBBS |
| 5340-00-489-0982 | 2017-03-88 | 1 | DIBBS |
| 5340-00-489-0982 | 2017-02-54 | 53 | DIBBS |
| 5340-00-489-0982 | 2017-01-26 | 40 | DIBBS |
| 5340-00-489-0982 | 2016-11-307 | 26 | DIBBS |
| 5340-00-489-0982 | 2016-10-299 | 26 | DIBBS |
| 5340-00-489-0982 | 2016-10-278 | 10 | DIBBS |
| 5340-00-489-0982 | 2016-08-224 | 10 | DIBBS |
| 5340-00-489-0982 | 2016-08-216 | 10 | DIBBS |
| 5340-00-489-0982 | 2016-01-10 | 33 | DIBBS |
| 5340-00-489-0982 | 2015-09-263 | 24 | DIBBS |
| 5340-00-489-0982 | 2015-07-194 | 19 | DIBBS |
| 5340-00-489-0982 | 2015-07-182 | 19 | DIBBS |
| 5340-00-489-0982 | 2015-06-163 | 16 | DIBBS |
| 5340-00-489-0982 | 2015-06-152 | 16 | DIBBS |
| 5340-00-489-0982 | 2013-07-184 | 1 | us |
| 5340-00-489-0982 | 2013-07-184 | 2 | us |
| 5340-00-489-0982 | 2013-06-156 | 58 | DIBBS |
| 5340-00-489-0982 | 2012-04-114 | 0 | DIBBS |
| 5340-00-489-0982 | 2012-03-61 | 25 | DIBBS |
| 5340-00-489-0982 | 2011-02-33 | 38 | DIBBS |
| 5340-00-489-0982 | 2010-12-347 | 34 | DIBBS |
| 5340-00-489-0982 | 2010-07-209 | 9 | DIBBS |
| 5340-00-489-0982 | 2009-10-303 | 23 | DIBBS |
| 5340-00-489-0982 | 2009-09-244 | 21 | DIBBS |
| 5340-00-489-0982 | 2009-05-141 | 20 | DIBBS |
| 5340-00-489-0982 | 2009-04-120 | 21 | DIBBS |
| 5340-00-489-0982 | 2008-11-324 | 12 | DIBBS |
| 5340-00-489-0982 | 2008-07-210 | 17 | DIBBS |
| 5340-00-489-0982 | 2008-04-119 | 42 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-489-0982
Related Products | NSN 5340-00-489-0982
Technical Data | NSN 5340-00-489-0982
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ALODIZE OR BLUE ANODIZE FSCM 97484 |
| REFINEMENT MEDIUM TYPE | FILTERING |
| REFINEMENT DEVICE TYPE | WIRE FABRIC |

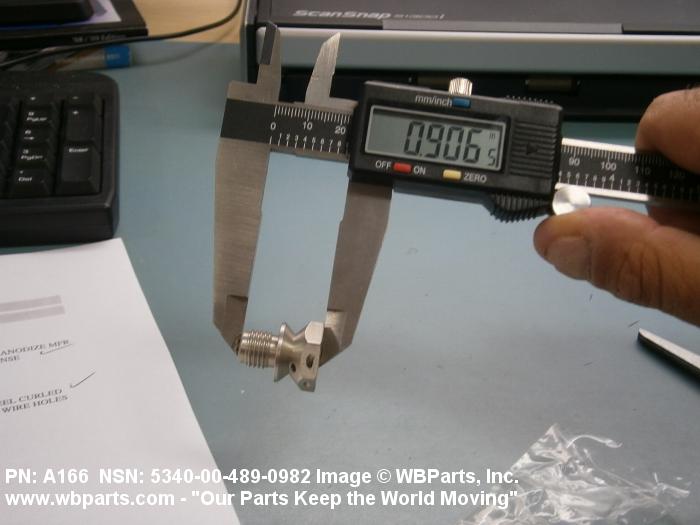

| LENGTH | 0.910 INCHES NOMINAL |
| VENT HOLE QUANTITY | 2 |
| END CONNECTION TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 7/16-20 UNF |
| THREAD CLASS | 3A |

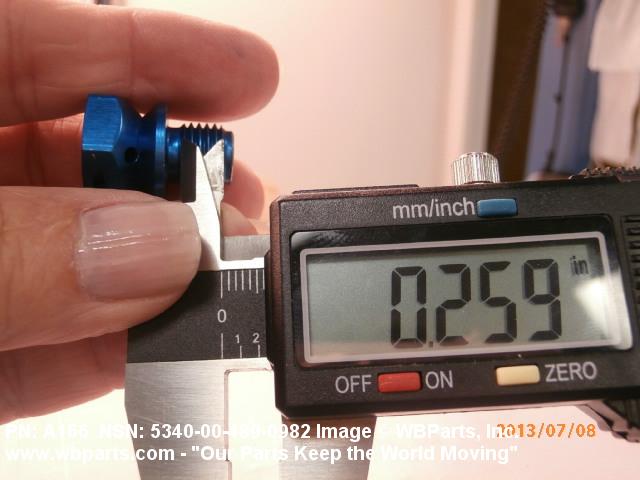

| THREAD LENGTH | 0.255 INCHES NOMINAL |

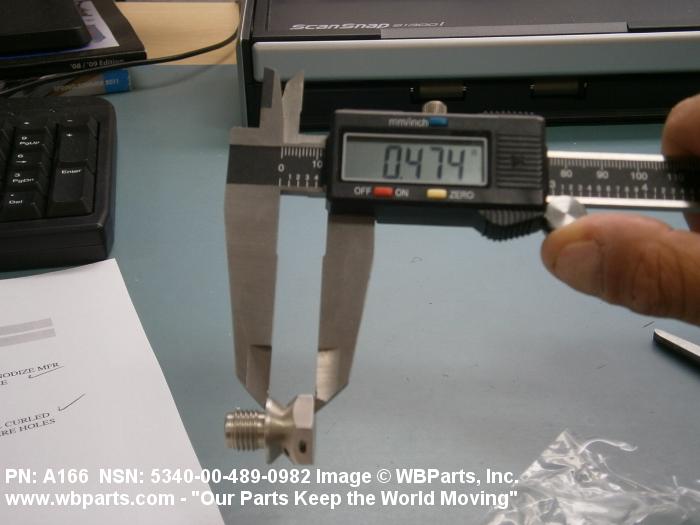

| UNTHREADED END LENGTH | 0.480 INCHES NOMINAL |
| SPECIAL FEATURES | FILTER MEDIA STAINLESS STEEL CURLED WOOL,HEX HEAD W/LOCKING WIRE HOLES AND GASKET |
Restrictions/Controls & Freight Information | NSN 5340-00-489-0982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-489-0982
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
