NSN 5340-00-485-3324 55788, 00-485-3324, 004853324
Product Details | DIRT AND LIQUID DEFLECTOR
5340-00-485-3324 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: 55788, 5340-00-485-3324, 00-485-3324, 5340004853324, 004853324
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-485-3324 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 5340-00-485-3324
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-485-3324
Technical Data | NSN 5340-00-485-3324
| Characteristic | Specifications |
|---|---|

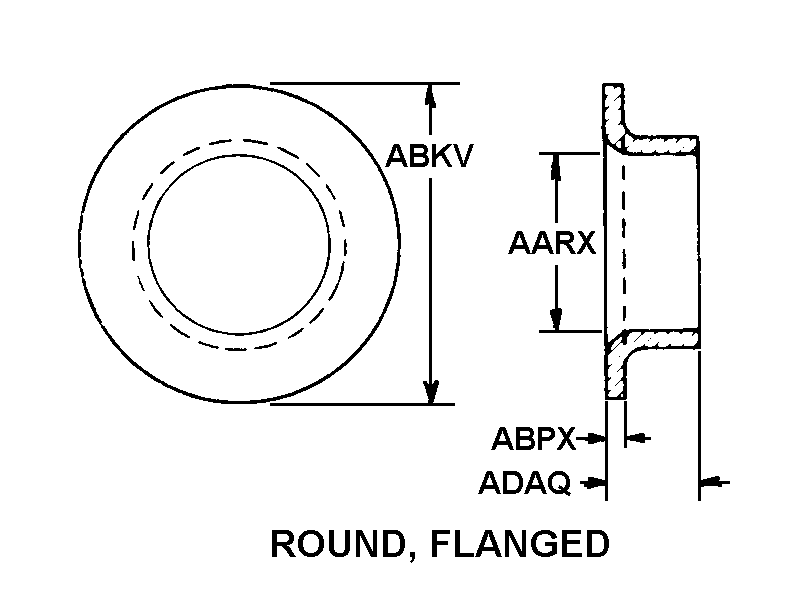

| STYLE DESIGNATOR | 21 ROUND, FLANGED |
| INSIDE DIAMETER | 0.393 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |
| BODY LENGTH | 0.392 INCHES MINIMUM AND 0.396 INCHES MAXIMUM |
| MATERIAL | STEEL, MIL-S-6758, COMP 4130, C4 |
| SPECIAL FEATURES | 8 SLOTS EQUALLY SPACED ON FLANGE,4 LANDS ON BODY |
| III FSC APPLICATION DATA | TURBINE,ACFT COOLING |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 55788 |
Restrictions/Controls & Freight Information | NSN 5340-00-485-3324
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
