NSN 5340-00-484-2236 LS5998C616, LS5998C6-16, 00-484-2236
Product Details | ANGLE BRACKET
5340-00-484-2236 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: LS5998C616, LS5998C6-16, 5340-00-484-2236, 00-484-2236, 5340004842236, 004842236
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1969 | 00-484-2236 | 16900 ( BRACKET, ANGLE ) |

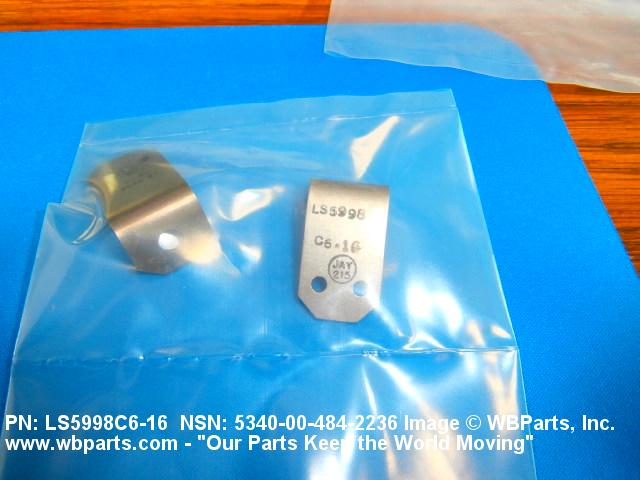

Drawings & Photos | NSN 5340-00-484-2236
Demand History | NSN 5340-00-484-2236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS5998C616 | 2012-04-103 | 2 | United States |
| 5340-00-484-2236 | 2012-04-93 | 2 | US |
| 5340-00-484-2236 | 2012-03-80 | 2 | MANUAL |
| LS5998C6-16 | 2012-03-80 | 2 | US |
| LS5998C616 | 2011-07-192 | 2 | CA |
Cross Reference | NSN 5340-00-484-2236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5998C6-16 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-484-2236
Related Products | NSN 5340-00-484-2236
Technical Data | NSN 5340-00-484-2236
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059,COMP 301,1/4 HARD MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.625 INCHES MINIMUM AND 0.745 INCHES MAXIMUM |
| III SECOND LEG LENGTH | 1.125 INCHES MINIMUM AND 1.245 INCHES MAXIMUM |
| III FIRST LEG THICKNESS | 0.040 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.040 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 109 |
| FIRST LEG WIDTH | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| FIRST LEG END WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 |
| FIRST LEG HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 109 |
| SECOND LEG WIDTH | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| SECOND LEG END WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| SECOND LEG DIAMETER | 0.365 INCHES MINIMUM |
| SECOND LEG HOLE ARRANGEMENT STYLE | 133 |
| SECOND LEG HOLE DIAMETER | 0.135 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.150 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| III HEAT TREATMENT | FULL HARD |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS5998C6-16 |
Restrictions/Controls & Freight Information | NSN 5340-00-484-2236
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-484-2236
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | F | FABRICATE OR ASSEMBLE # (NON-STOCKED ITEMS) National Stock Numbered items fabricated or assembled from raw materials and finished products as the normal method of support. Procurement and stockage of the items are not justified because of low usage or peculiar installation factors. Distinctions between local or centralized fabricate/assemble capability are identified by the Source of Supply Modifier in the Source of Supply Column of the Service Management Data Lists. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
