Product Details | STRAP HINGE
5340-00-452-4758 A hinge whose leaves are greater in dimension transversely to the axis of the hinge pin than they are parallel to the axis of the hinge pin, and whose sides may or may not be tapered along their greatest dimension, from the hinge pin toward a point at their extremity.
Part Alternates: 15DLS2147, 7065895, 5340-00-452-4758, 00-452-4758, 5340004524758, 004524758
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-452-4758 | 06915 ( HINGE, STRAP ) |

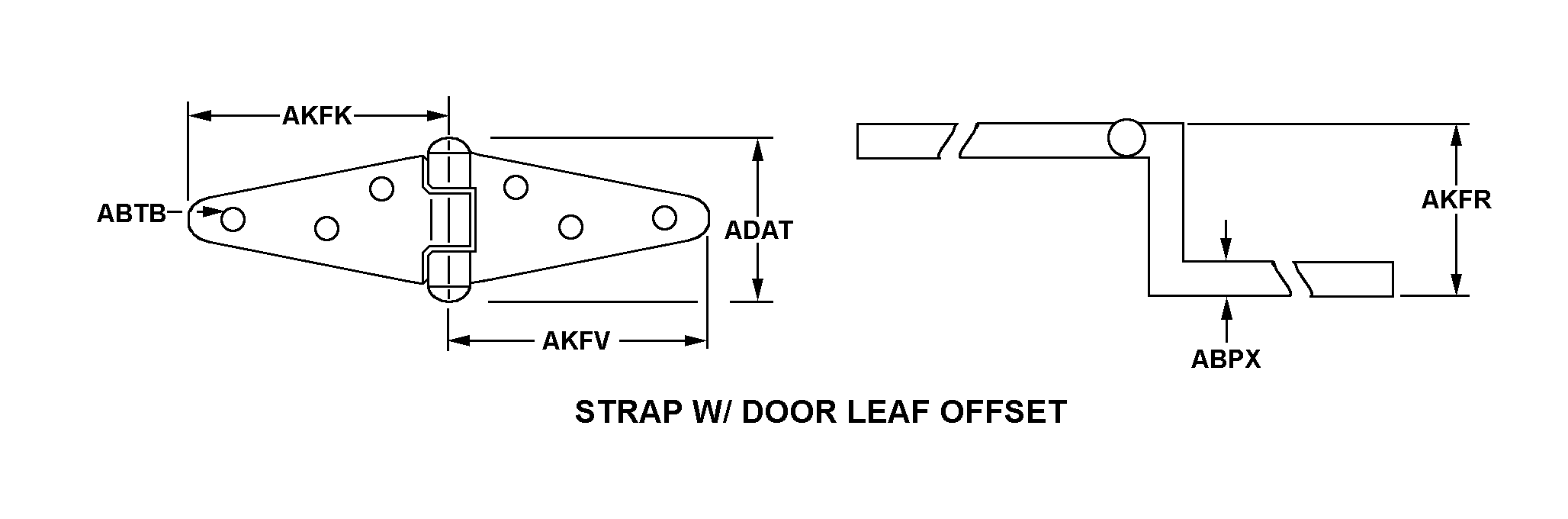

Drawings & Photos | NSN 5340-00-452-4758
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-452-4758
Technical Data | NSN 5340-00-452-4758
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| STYLE DESIGNATOR | 63 STRAP W/DOOR LEAF OFFSET |
| MATERIAL THICKNESS | 0.219 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| BODY WIDTH | 1.750 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 3.125 INCHES NOMINAL |
| DOOR LEAF OFFSET DISTANCE | 0.625 INCHES NOMINAL |
| DEVELOPED DISTANCE FROM PIN CENTER TO OFFSET DOOR LEAF EDGE | 3.000 INCHES NOMINAL |
| PIN TIP STYLE | 6 FLAT BUTTON |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 2 |
| MOUNTING HOLE QUANTITY | ANY ACCEPTABLE |
| PERFORMANCE TYPE | HEAVY DUTY |
| SPECIAL FEATURES | D00R THK RANGE 2.250 IN. TO 2.750 IN. |
