Product Details | DOUBLE ANGLE BRACKET
5340-00-438-7368 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 8448336, 5340-00-438-7368, 00-438-7368, 5340004387368, 004387368
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 NOV 1969 | 00-438-7368 | 20354 ( BRACKET, DOUBLE ANGLE ) |

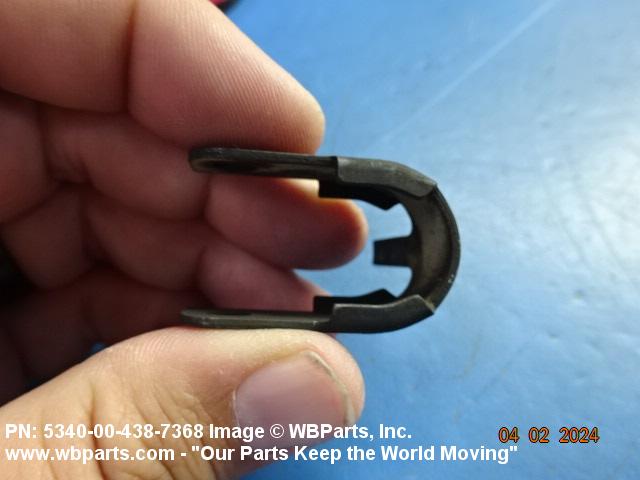

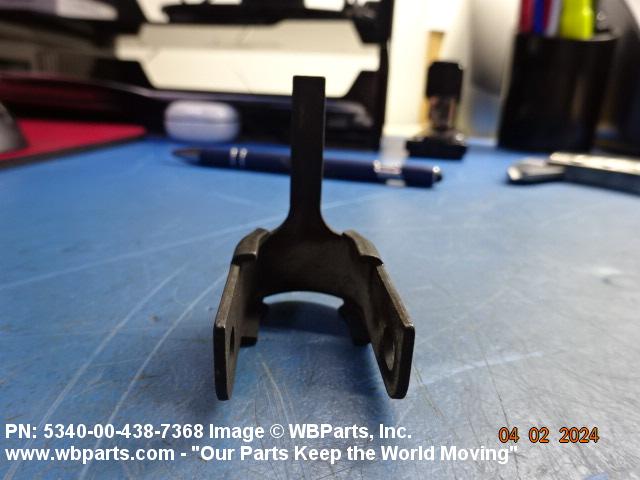

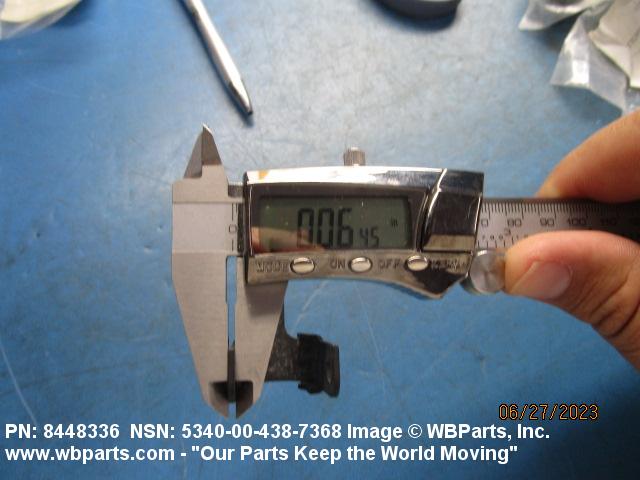

Drawings & Photos | NSN 5340-00-438-7368
Demand History | NSN 5340-00-438-7368
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-438-7368 | 2024-06-169 | 20 | United States |
| 5340-00-438-7368 | 2024-03-84 | 20 | United States |
| 5340-00-438-7368 | 2023-06-158 | 20 | United States |
| 5340-00-438-7368 | 2022-07-210 | 20 | United States |
Cross Reference | NSN 5340-00-438-7368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8448336 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
