NSN 5340-00-405-8836 0N1496344, 0N149634-4, 1502810BL
Product Details | EXTENSION DRAWER SLIDE SECTION
5340-00-405-8836 An item specifically designed for use as a component of a SLIDE, DRAWER, EXTENSION. It may contain ball bearings, rollers, locking device(s), and mounting provisions.
Part Alternates: 0N1496344, 0N149634-4, 1502810BL, 5340-00-405-8836, 00-405-8836, 5340004058836, 004058836
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 APR 1971 | 00-405-8836 | 28415 ( SLIDE SECTION, DRAWER, EXTENSION ) |
Drawings & Photos | NSN 5340-00-405-8836
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-405-8836
Technical Data | NSN 5340-00-405-8836
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/11,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |

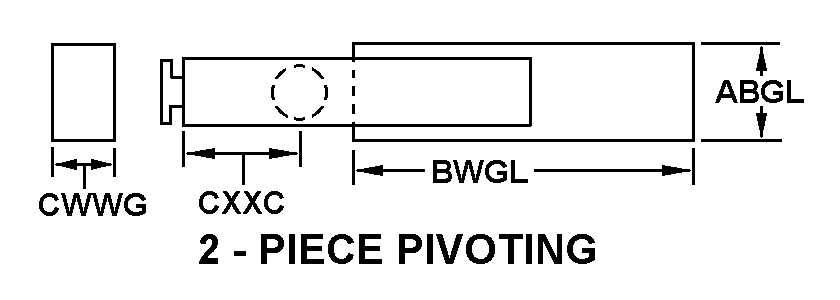

| STYLE DESIGNATOR | M3 2-PIECE PIVOTING |
| WIDTH | 1.380 INCHES NOMINAL |
| SECTION LENGTH | 15.680 INCHES NOMINAL |
| HEIGHT | 1.380 INCHES NOMINAL |
| DISTANCE FROM END TO PIVOT POINT | 8.000 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| SIDE FOR WHICH DESIGNED | LEFT HAND |
| SPECIAL FEATURES | SLIDE-LOCK |
| TEST DATA DOCUMENT | 05236-1502810BL DRAWING |
| MANUFACTURERS CODE | 98230 |
| MFR SOURCE CONTROLLING REFERENCE | 0N149634-4 |
Restrictions/Controls & Freight Information | NSN 5340-00-405-8836
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XN | National Security Agency ATTN: L111 Fort George G. Meade, MD 20755-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
