NSN 5340-00-403-5137 7792143001, 779-2143-001, 00-403-5137
Product Details | LOOP CLAMP
5340-00-403-5137 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 7792143001, 779-2143-001, 5340-00-403-5137, 00-403-5137, 5340004035137, 004035137
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1970 | 00-403-5137 | 17532 ( CLAMP, LOOP ) |

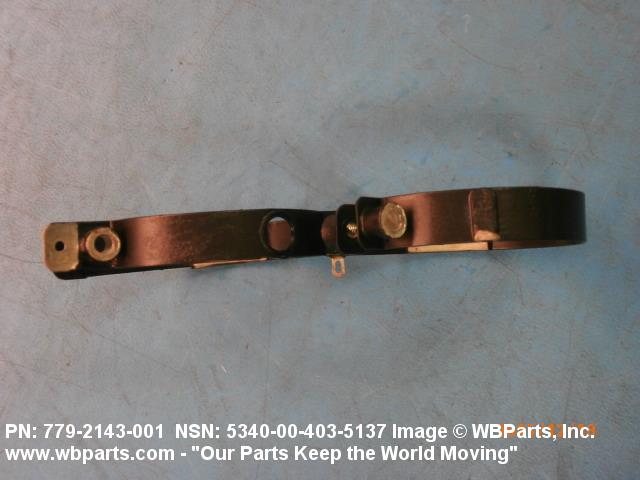

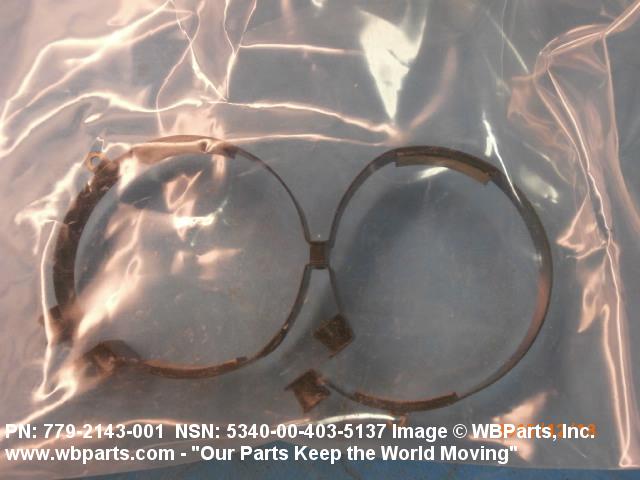

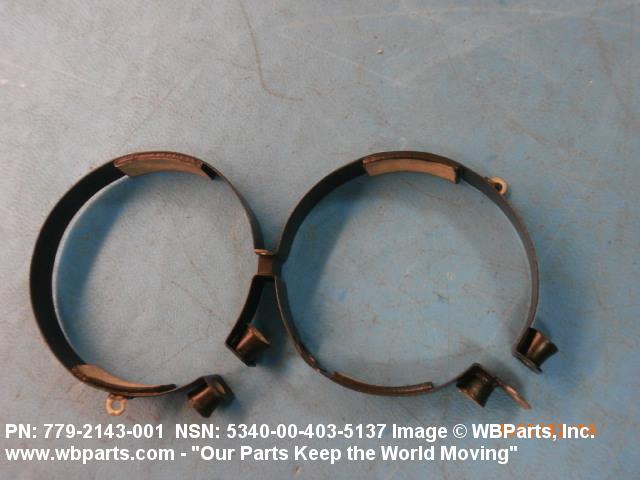

Drawings & Photos | NSN 5340-00-403-5137
Demand History | NSN 5340-00-403-5137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-403-5137 | 2015-12-336 | 2 | Germany |
| 5340-00-403-5137 | 2012-09-262 | 1 | LU |
Cross Reference | NSN 5340-00-403-5137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 779-2143-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-403-5137
Technical Data | NSN 5340-00-403-5137
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 779-2143-001 |
Restrictions/Controls & Freight Information | NSN 5340-00-403-5137
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
