NSN 5340-00-363-8569 N12762PC46, N12763APC15, N21023PC4
Product Details | BRIDGE CLAMP
5340-00-363-8569 A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal.
Part Alternates: N12762PC46, N12763APC15, N21023PC4, N4763PC46, N5763PC46, N6514PC46, N8762REV13PC46, N9763PC46, NX12013PC46, NX14266PC15, 3240935, 5340-00-363-8569, 00-363-8569, 5340003638569, 003638569
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-363-8569 | 11206 ( CLAMP, BRIDGE ) |
Drawings & Photos | NSN 5340-00-363-8569
Cross Reference | NSN 5340-00-363-8569
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3240935 | 24617 | GENERAL MOTORS CORP |
| 3240935 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 3240935 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| N12762PC46 | 24617 | GENERAL MOTORS CORP |
| N12763APC15 | 24617 | GENERAL MOTORS CORP |
| N21023PC4 | 24617 | GENERAL MOTORS CORP |
| N4763PC46 | 24617 | GENERAL MOTORS CORP |
| N5763PC46 | 24617 | GENERAL MOTORS CORP |
| N6514PC46 | 24617 | GENERAL MOTORS CORP |
| N8762REV13PC46 | 24617 | GENERAL MOTORS CORP |
| N9763PC46 | 24617 | GENERAL MOTORS CORP |
| NX12013PC46 | 24617 | GENERAL MOTORS CORP |
| NX14266PC15 | 24617 | GENERAL MOTORS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-363-8569
Related Products | NSN 5340-00-363-8569
Technical Data | NSN 5340-00-363-8569
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

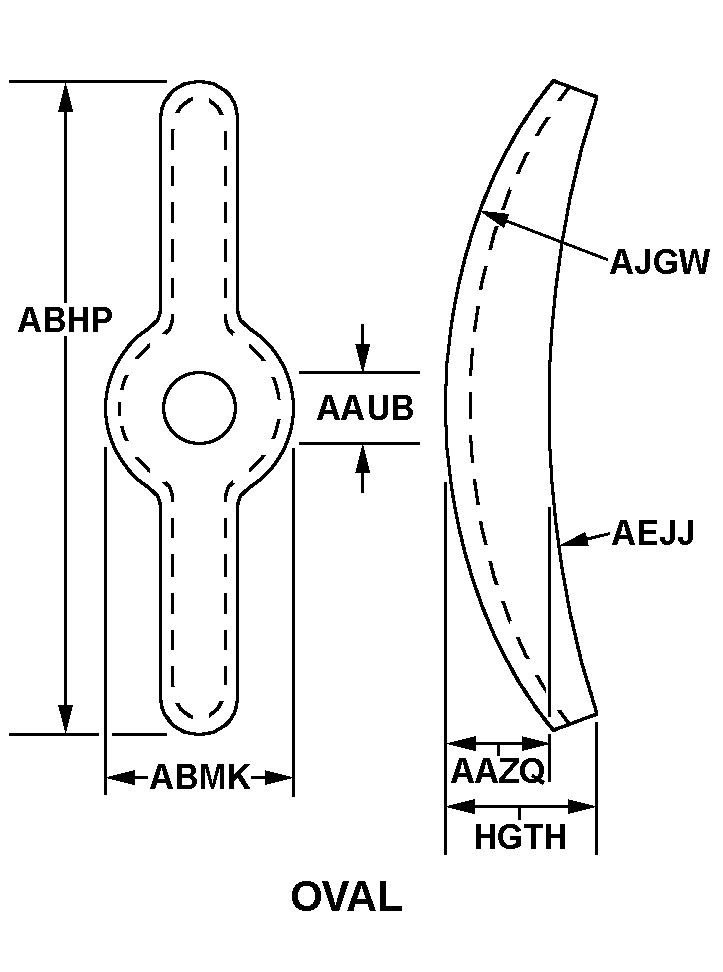

| STYLE DESIGNATOR | B6 OVAL |
| HOLE DIAMETER | 0.386 INCHES NOMINAL |
| HOLE DEPTH | 0.503 INCHES NOMINAL |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.626 INCHES NOMINAL |
| INSIDE RADIUS | ANY ACCEPTABLE |
| OUTSIDE RADIUS | ANY ACCEPTABLE |
| HEIGHT | 1.563 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-363-8569
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-363-8569
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
