NSN 5340-00-352-0324 NAS1716D30K, 00-352-0324, 003520324
Product Details | RETAINING STRAP
5340-00-352-0324 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: NAS1716D30K, 5340-00-352-0324, 00-352-0324, 5340003520324, 003520324
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 1974 | 00-352-0324 | 05072 ( STRAP, RETAINING ) |

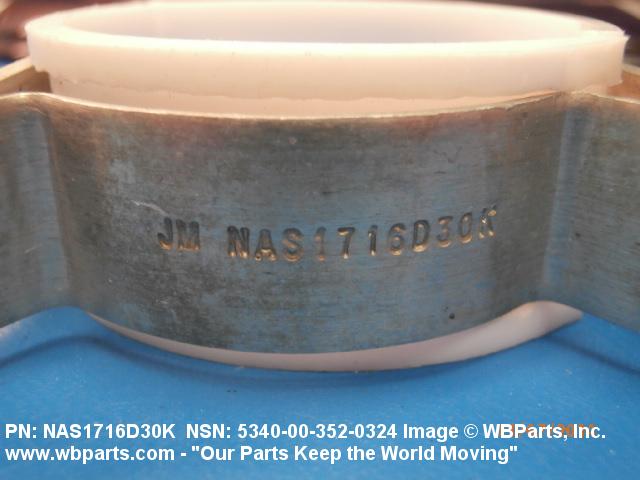

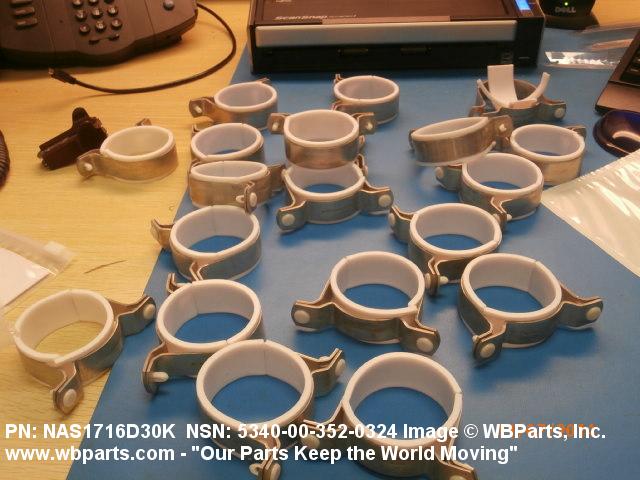

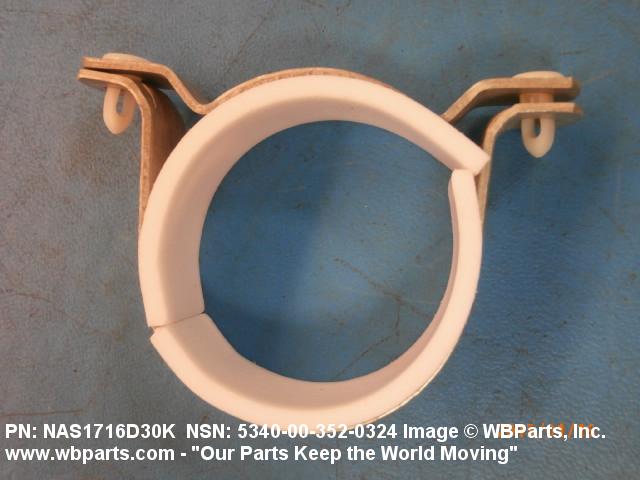

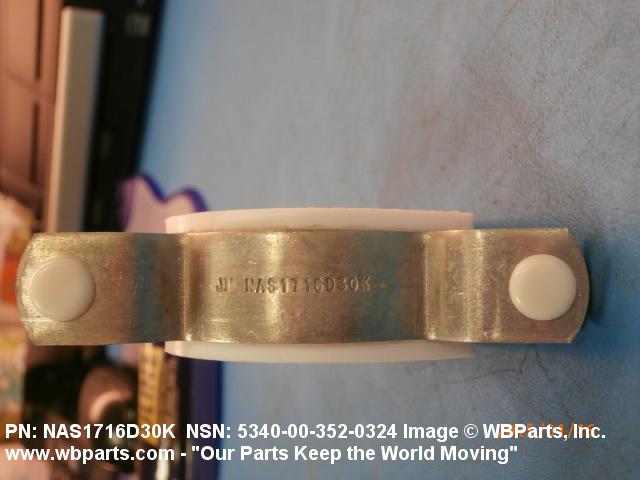

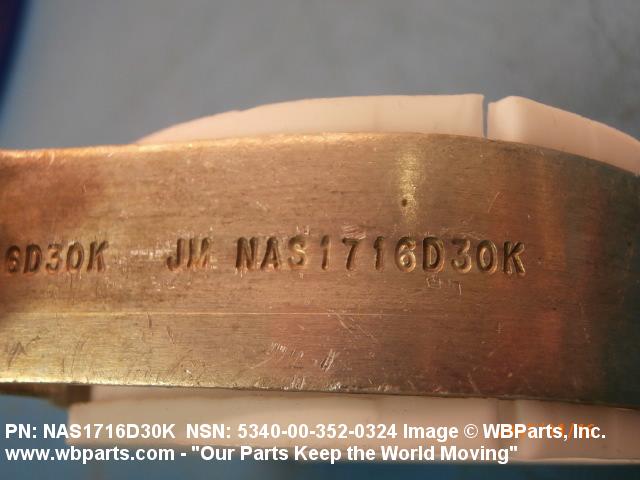

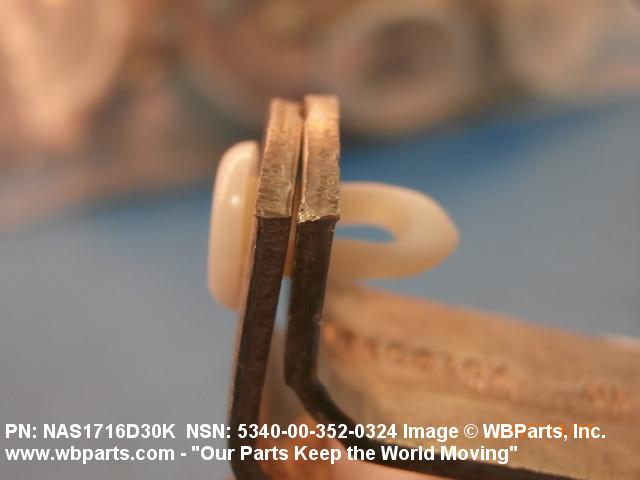

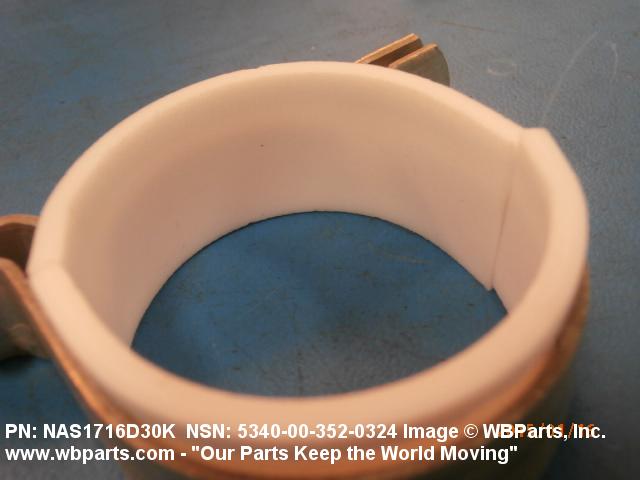

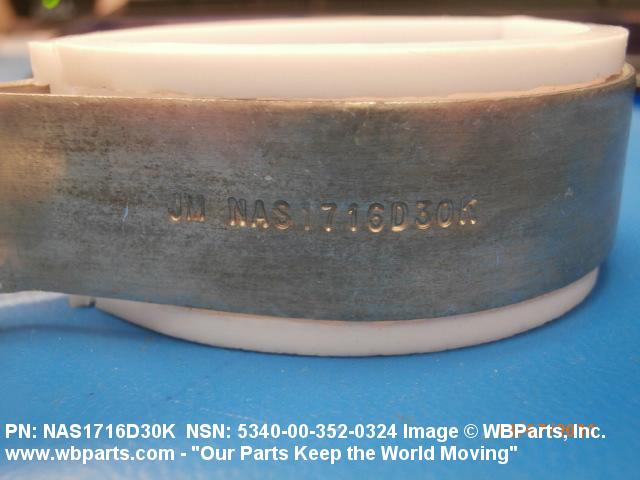

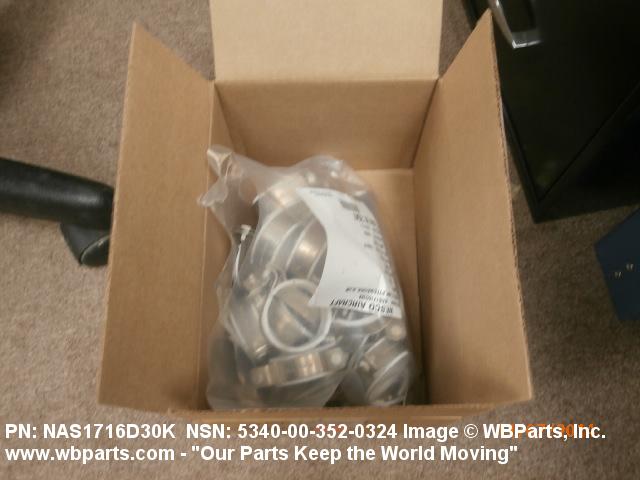

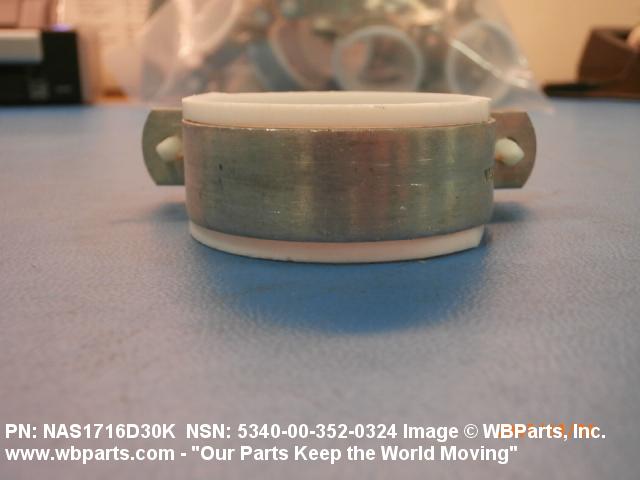

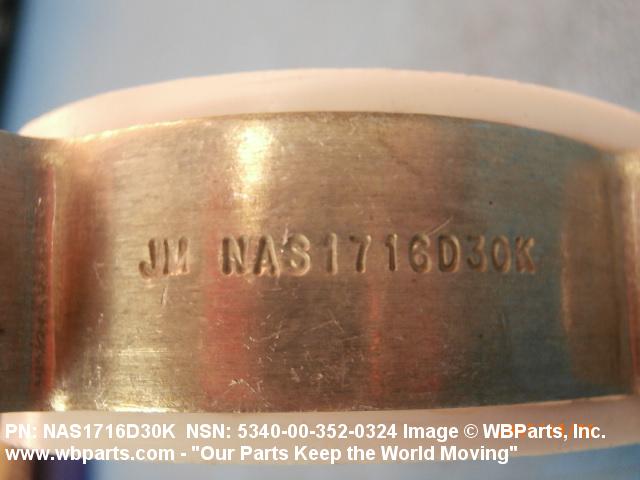

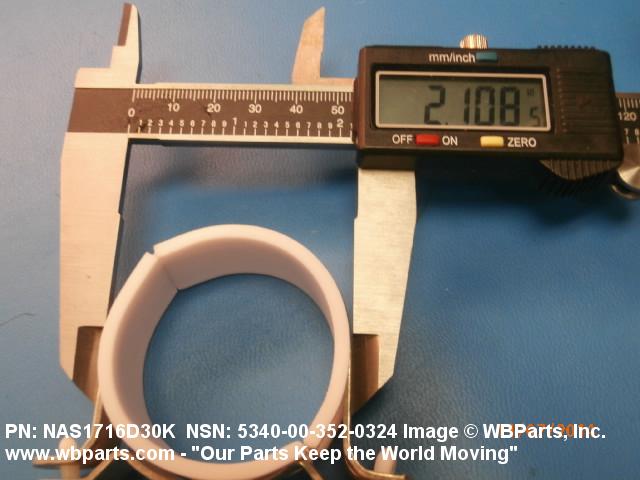

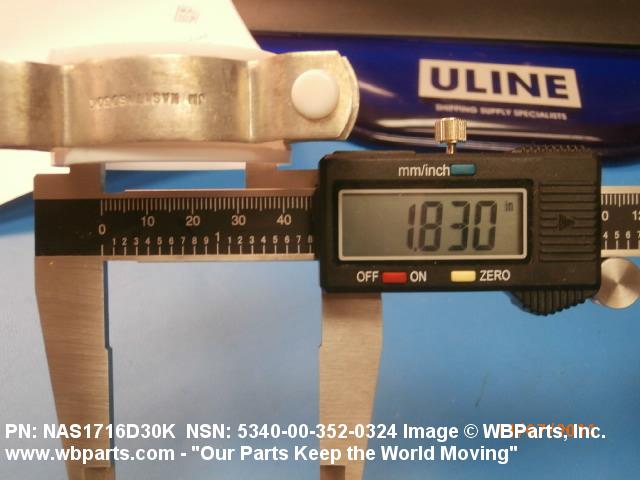

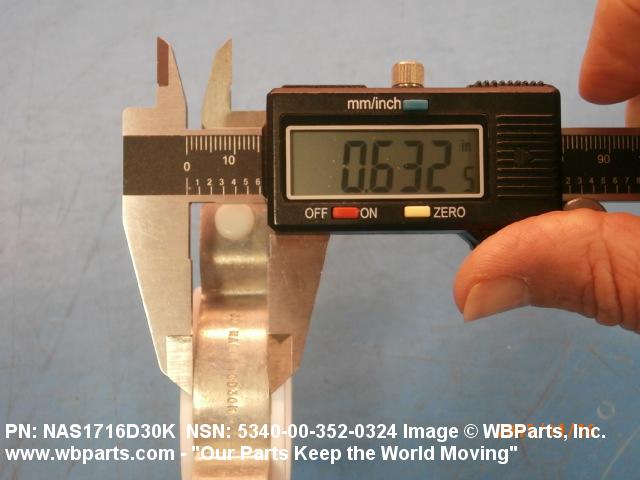

Drawings & Photos | NSN 5340-00-352-0324
Demand History | NSN 5340-00-352-0324
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1716D30K | 2015-01-06 | 20 | United States |
| NAS1716D30K | 2014-09-246 | 20 | United States |
Cross Reference | NSN 5340-00-352-0324
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1716D30K | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-352-0324
Technical Data | NSN 5340-00-352-0324
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY QQ-A-250/5 ALLOY ALCLAD 2024-T4 OR T42 |
| STYLE DESIGNATOR | A21 SADDLE ARCH |

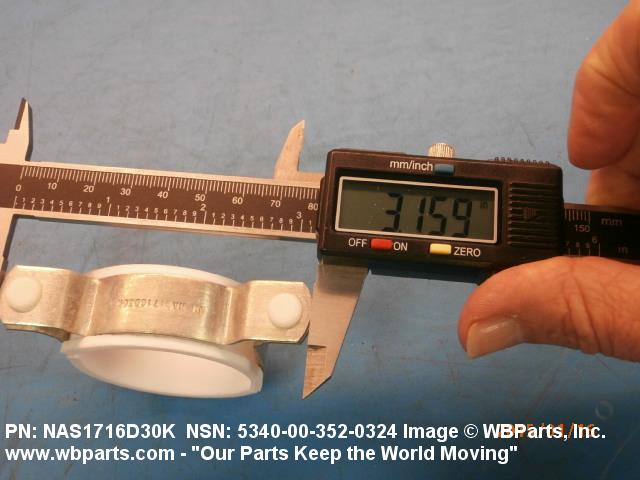

| OVERALL LENGTH | 3.149 INCHES MINIMUM AND 3.179 INCHES MAXIMUM |
| OVERALL WIDTH | 0.620 INCHES NOMINAL |

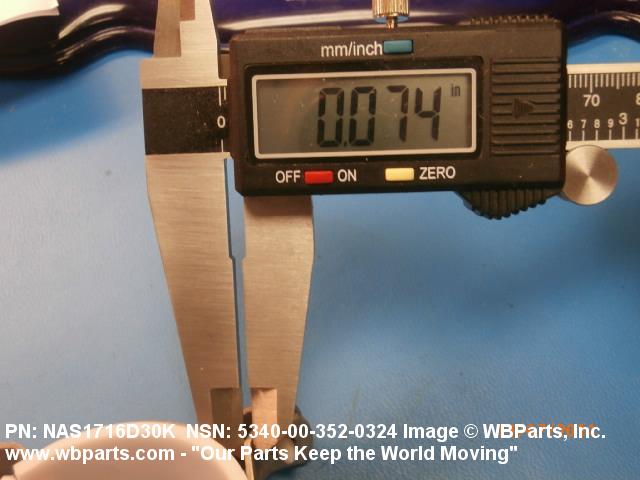

| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.649 INCHES MINIMUM AND 2.679 INCHES MAXIMUM |
| MOUNTING HOLE SIZE | 0.204 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 1.985 INCHES MINIMUM AND 2.015 INCHES MAXIMUM |

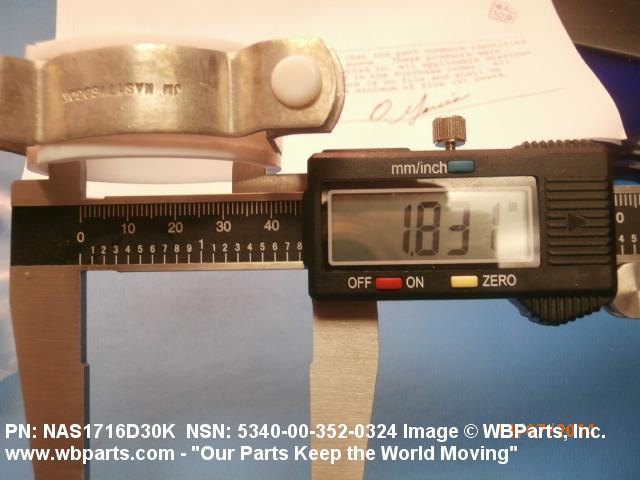

| INSIDE DIAMETER/ARCH LENGTH | 1.860 INCHES MINIMUM AND 1.890 INCHES MAXIMUM |
| CUSHION | INCLUDED |
| CUSHIONING MATERIAL | PLASTIC, AMS 3651 |
| MOUNTING PAD | NOT INCLUDED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1716 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-00-352-0324
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
