NSN 5340-00-325-1548 S369WH14, S714WH14, BACC10BH14RW
Product Details | LOOP CLAMP

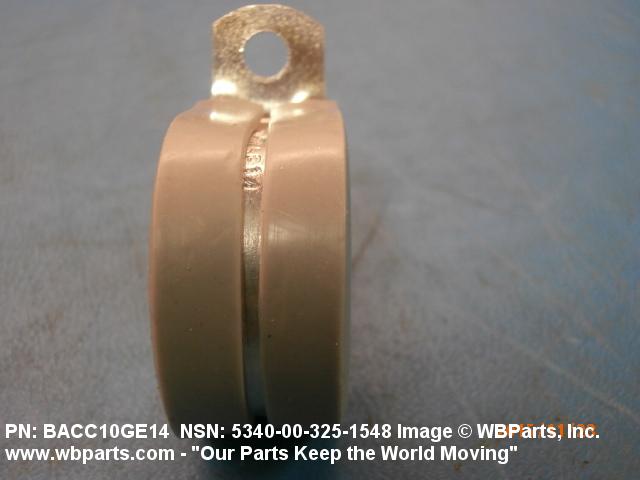

5340-00-325-1548 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: S369WH14, S714WH14, BACC10BH14RW, BACC10GE14, JM44LC13WS14R, TA12C32WS14, TA4C81WS14, 400WCS14, 509S14, 5340-00-325-1548, 00-325-1548, 5340003251548, 003251548
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-325-1548 | 17532 ( CLAMP, LOOP ) |

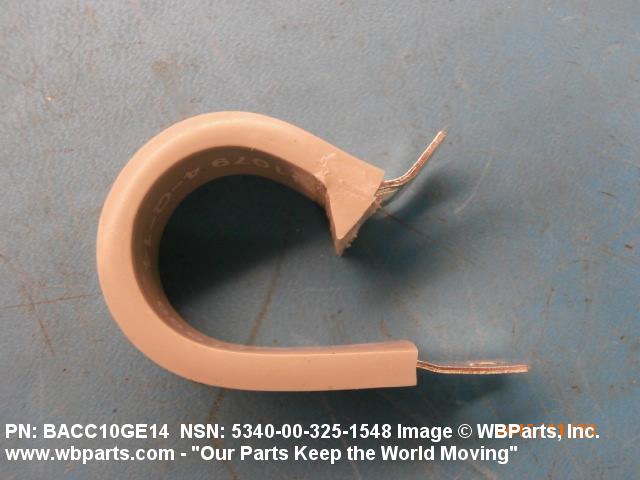

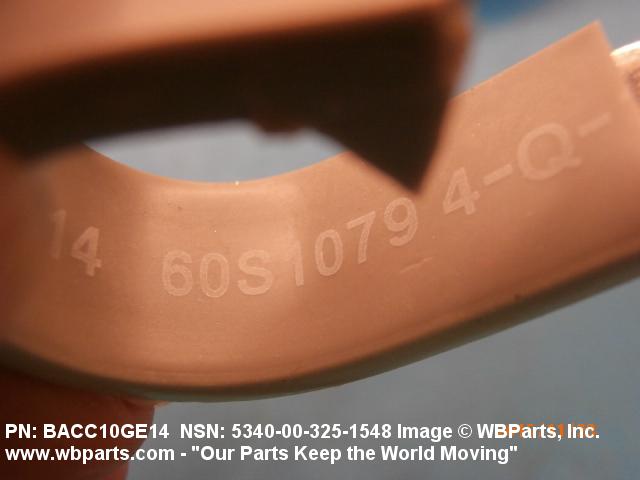

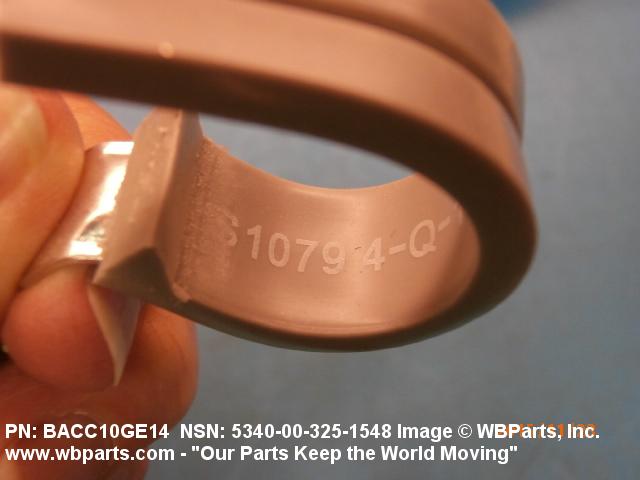

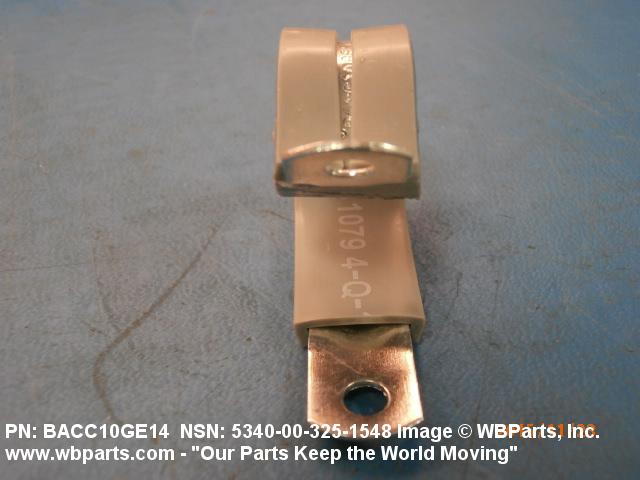

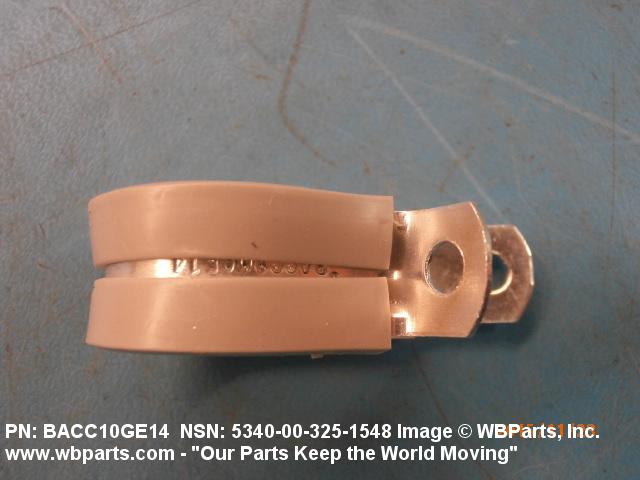

Drawings & Photos | NSN 5340-00-325-1548
Demand History | NSN 5340-00-325-1548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-325-1548 | 2021-08-236 | 120 | Malaysia |
| 400WCS14 | 2021-06-162 | 20 | Malaysia |
| 400WCS14 | 2021-06-159 | 20 | Malaysia |
| 400WCS14 | 2019-07-209 | 1583 | DIBBS |
| 509S14 | 2019-07-209 | 1583 | DIBBS |
| BACC10BH14RW | 2019-07-209 | 1583 | DIBBS |
| JM44LC13WS14R | 2019-07-209 | 1583 | DIBBS |
| S714WH14 | 2019-07-209 | 1583 | DIBBS |
| TA12C32WS14 | 2019-07-209 | 1583 | DIBBS |
| TA4C81WS14 | 2019-07-209 | 1583 | DIBBS |
| 5340-00-325-1548 | 2015-09-260 | 4 | Malaysia |
| 5340-00-325-1548 | 2013-08-223 | 2076 | DIBBS |
Cross Reference | NSN 5340-00-325-1548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 400WCS14 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| 509S14 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| BACC10BH14RW | 81205 | THE BOEING COMPANY DBA BOEING |
| BACC10GE14 | 81205 | THE BOEING COMPANY DBA BOEING |
| JM44LC13WS14R | 22175 | J & M PRODUCTS, INC. |
| S369WH14 | 18076 | UMPCO, INC. |
| S714WH14 | 18076 | UMPCO, INC. |
| TA12C32WS14 | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
| TA4C81WS14 | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-325-1548
Related Products | NSN 5340-00-325-1548
Technical Data | NSN 5340-00-325-1548
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1020 BAND RUBBER SILICONE CLASS Q CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC ALL MATERIAL RESPONSES BAND D6-54312-1 FSCM 81205 MFR REF SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | CADMIUM BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

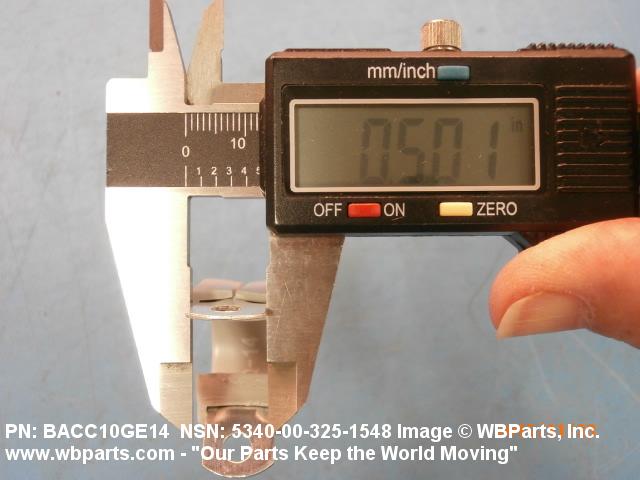

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

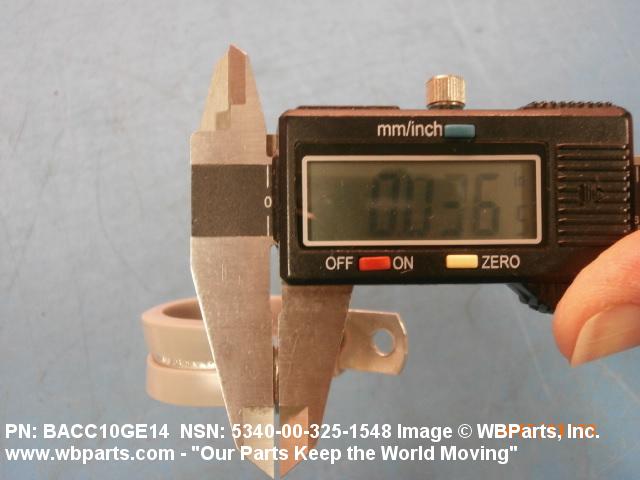

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

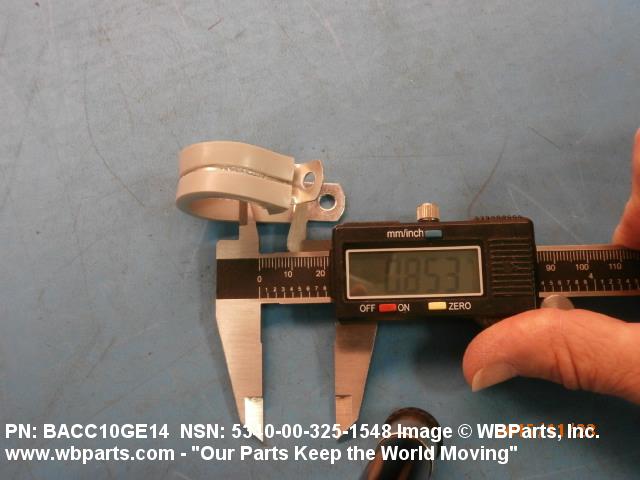

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.842 INCHES NOMINAL |

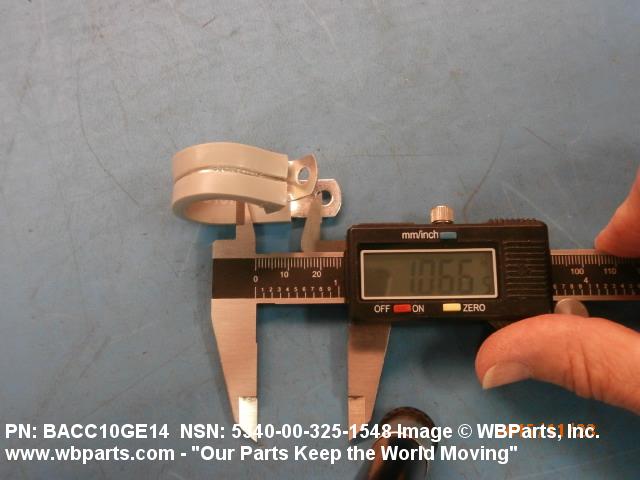

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.060 INCHES NOMINAL |

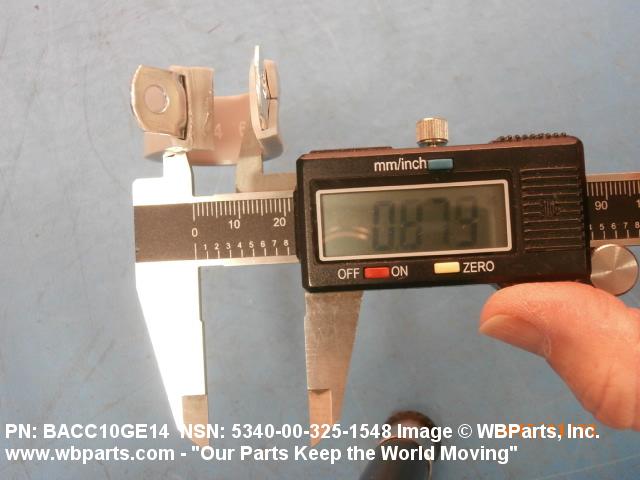

| LOOP INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

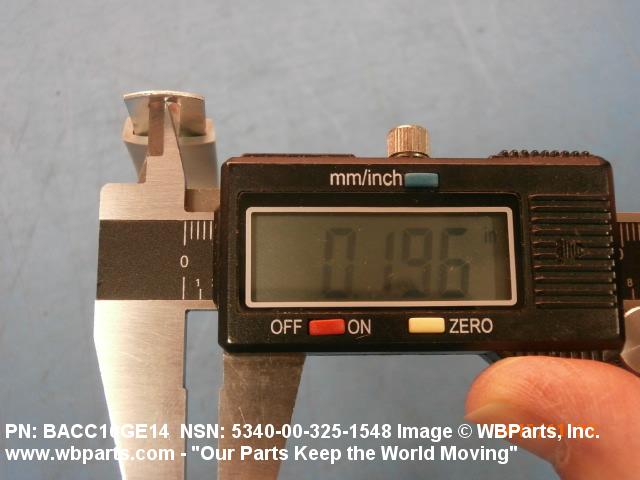

| DIAMETER | 0.194 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT |
| SPECIFICATION/STANDARD DATA | 81205-BACC10GE MANUFACTURERS SPECIFICATION |
| III END ITEM IDENTIFICATION | W/S:AIRCRAFT, STRATOLIFTER C-135; ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135,B-52H); ENGINE, AIRCRAFT, J-57 ALL MODELS (C-135, EC-135, B-52); AIRCRAFT, STRATOFORTRESS B-52; JOINT STARTS TARGET RADAR SYSTEM; ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); ENGINE, AIRCRAFT, F101-GE-102 (B-1); ENINGE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); AIRCRAFT, HERCULES C-130; E-3A AWACS |
| MANUFACTURERS CODE | 81205 |

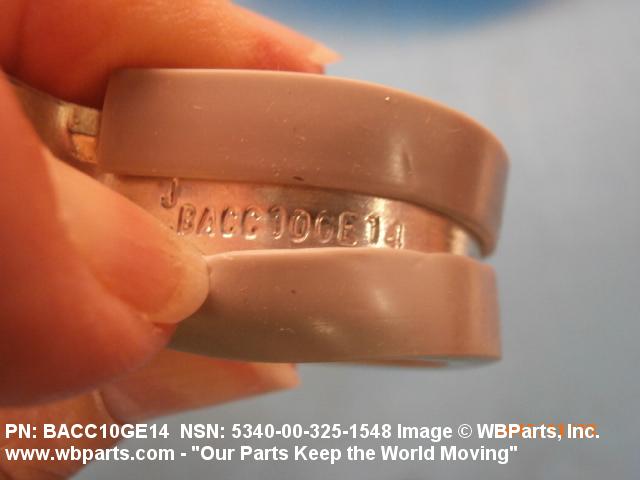

| MFR SOURCE CONTROLLING REFERENCE | BACC10GE14 |
Restrictions/Controls & Freight Information | NSN 5340-00-325-1548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-325-1548
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
