NSN 5340-00-324-1449 D8000065, 8000065, 8150287
Product Details | DUST AND MOISTURE SEAL BOOT
5340-00-324-1449 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: D8000065, 8000065, 8150287, 5340-00-324-1449, 00-324-1449, 5340003241449, 003241449
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-324-1449 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

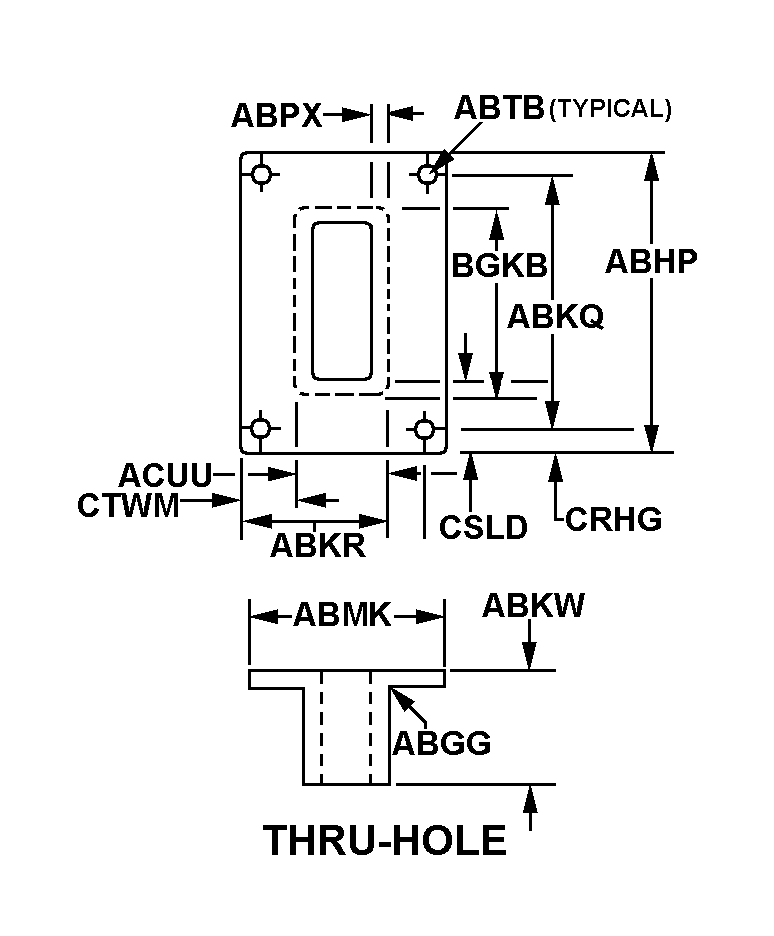

Drawings & Photos | NSN 5340-00-324-1449
Cross Reference | NSN 5340-00-324-1449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8000065 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8150287 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| 8150287 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8150287 | 19200 | US ARMY ARDEC RDECOM |
| 8150287 | 64609 | BANNER MACHINE COMPANY, INC. |
| 8150287 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| D8000065 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-324-1449
Technical Data | NSN 5340-00-324-1449
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A41 THRU-HOLE |
| RADIUS | 0.062 INCHES MAXIMUM |
| OVERALL LENGTH | 23.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 22.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 14.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.625 INCHES NOMINAL |
| OVERALL WIDTH | 16.875 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.228 INCHES NOMINAL |
| BASE WIDTH | 14.750 INCHES NOMINAL |
| BASE OVERALL LENGTH | 12.250 INCHES NOMINAL |
| FIRST DISTANCE FROM MOUNTING HOLE CENTER TO BASE EDGE | 0.875 INCHES NOMINAL |
| DISTANCE FROM INSIDE OPENING TO BASE EDGE | 0.940 INCHES NOMINAL |
| SECOND DISTANCE FROM MOUNTING HOLE CENTER TO BASE EDGE | 0.375 INCHES NOMINAL |
| MATERIAL | RUBBER BODY |
Restrictions/Controls & Freight Information | NSN 5340-00-324-1449
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
