NSN 5340-00-321-5977 8364254, 00-321-5977, 003215977
Product Details | FRICTION CATCH
5340-00-321-5977 A nonpositive fastening device consisting of (1) a SPRING ACTUATED BALL, BOLT, PLUNGER, DOUBLE BEVEL LATCH, or the like, which is designed to be inserted and retained by compression of the spring, in a recess or STRIKE, CATCH. It may include the STRIKE, CATCH or (2) a two piece item consisting of a STUD, FRICTION CATCH and a RECEPTACLE, FRICTION CATCH STUD. The items are designed to position a door, cover, panel, or the like, in a fixed position and are released by normal pull. The items do not have provisions such as a knob, handle, or lever to actuate the bolt or plunger. Excludes CATCH MAGNETIC.
Part Alternates: 8364254, 5340-00-321-5977, 00-321-5977, 5340003215977, 003215977
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-321-5977 | 06627 ( CATCH, FRICTION ) |
Drawings & Photos | NSN 5340-00-321-5977
Cross Reference | NSN 5340-00-321-5977
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8364254 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-321-5977
Technical Data | NSN 5340-00-321-5977
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

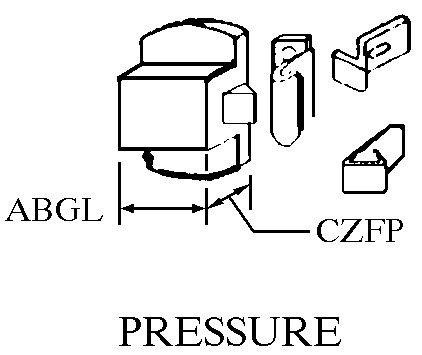

| STYLE DESIGNATOR | A7 PRESSURE |
| WIDTH | 0.520 INCHES NOMINAL |
| THICKNESS | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | HOLES FOUR 0.281 IN. DIA |
Restrictions/Controls & Freight Information | NSN 5340-00-321-5977
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
