NSN 5340-00-308-6043 187294R1, 3855H60, 73239
Product Details | ACCESS COVER
5340-00-308-6043 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 187294R1, 3855H60, 73239, 5340-00-308-6043, 00-308-6043, 5340003086043, 003086043
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-308-6043 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-308-6043
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-308-6043
Technical Data | NSN 5340-00-308-6043
| Characteristic | Specifications |
|---|---|

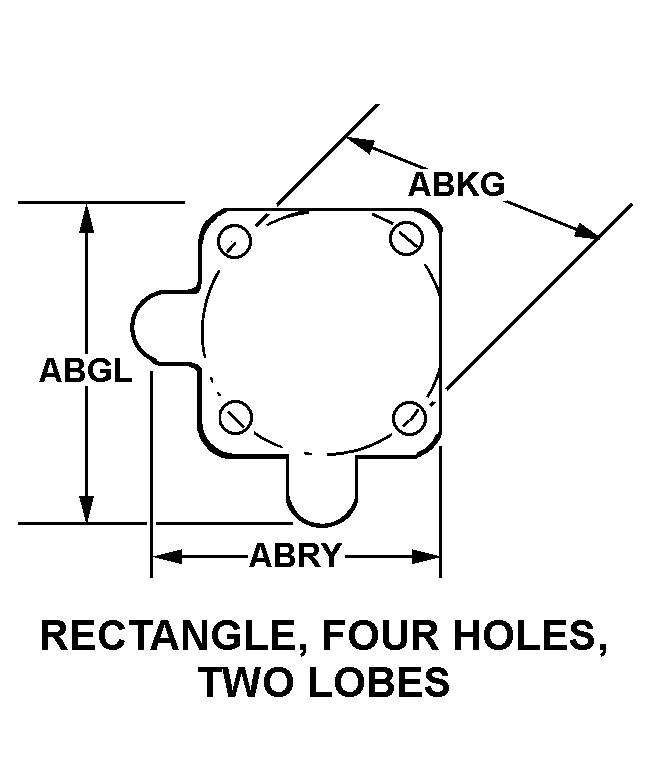

| PERIPHERAL SHAPE STYLE | 70 RECTANGLE, FOUR HOLES, TWO LOBES |
| WIDTH | 4.187 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 5.081 INCHES NOMINAL |
| LENGTH | 4.500 INCHES NOMINAL |
| CORNER RADIUS | 0.375 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 6 SQUARE OR RECTANGULAR RECESS |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| INSIDE WIDTH | 3.187 INCHES NOMINAL |
| INSIDE LENGTH | 3.500 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.125 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.156 INCHES NOMINAL |
| BODY THICKNESS | 0.187 INCHES NOMINAL |
| MATERIAL | IRON CAST |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.406 INCHES NOMINAL |
| SPECIAL FEATURES | THD HOLE FOR LUBRICATION FITTING |
Restrictions/Controls & Freight Information | NSN 5340-00-308-6043
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
