NSN 5340-00-298-1536 A219803224A, A2198-032-24A, A21980323
Product Details | SPLIT TUBULAR CLIP
5340-00-298-1536 A tubular item of resilient metallic material, split along its entire length and having a flange at one end, usually with projecting arms or prongs extending from the body. It is designed to be inserted into a hole in a panel and held in place by spring tension. It is used to retain unthreaded items such as a pin or a rivet.
Part Alternates: A219803224A, A2198-032-24A, A21980323, A2198-032-3, NAS48013, NAS480-13, 5340-00-298-1536, 00-298-1536, 5340002981536, 002981536
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-1536 | 19770 ( CLIP, SPLIT TUBULAR ) |

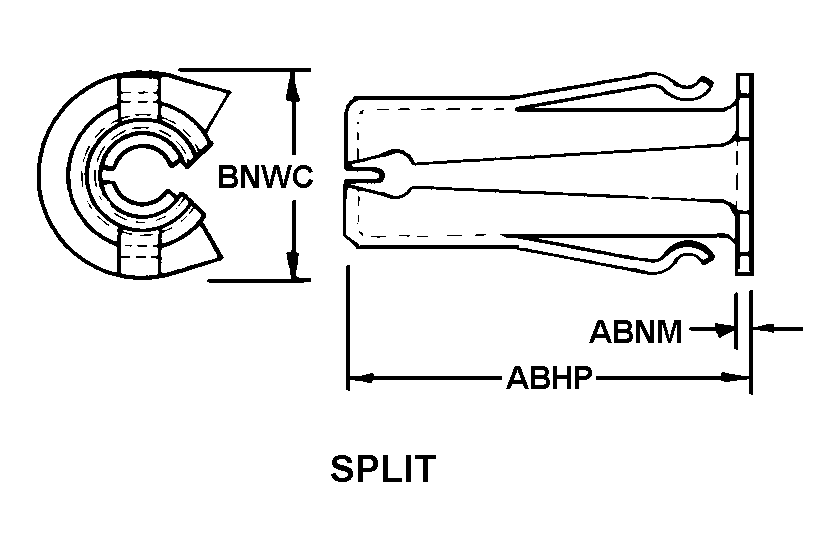

Drawings & Photos | NSN 5340-00-298-1536
Demand History | NSN 5340-00-298-1536
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-298-1536 | 2017-06-178 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-298-1536
Technical Data | NSN 5340-00-298-1536
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM AND ZINC |
| STYLE DESIGNATOR | D1 SPLIT |
| OVERALL LENGTH | 0.468 INCHES NOMINAL |
| THICKNESS | 0.012 INCHES NOMINAL |
| DISTANCE ACROSS FLANGE | 0.312 INCHES NOMINAL |
| PANEL THICKNESS ACCOMMODATED | 0.030 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| SHANK SIZE ACCOMMODATED | 0.187 INCHES NOMINAL |
| PANEL HOLE SIZE FOR WHICH DESIGNED | 0.228 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS480 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-00-298-1536
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-298-1536
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
