NSN 5340-00-291-5353 MS21919DG2, MS21919WDG2, AS21919WDG02

Product Details | LOOP CLAMP

5340-00-291-5353 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919DG2, MS21919WDG2, AS21919WDG02, AS21919WDG2, JM44LC33WD2, 10117325 , 2822624, 4116200061, 4116200-061, 5340-00-291-5353, 00-291-5353, 5340002915353, 002915353

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-291-5353	17532 ( CLAMP, LOOP )

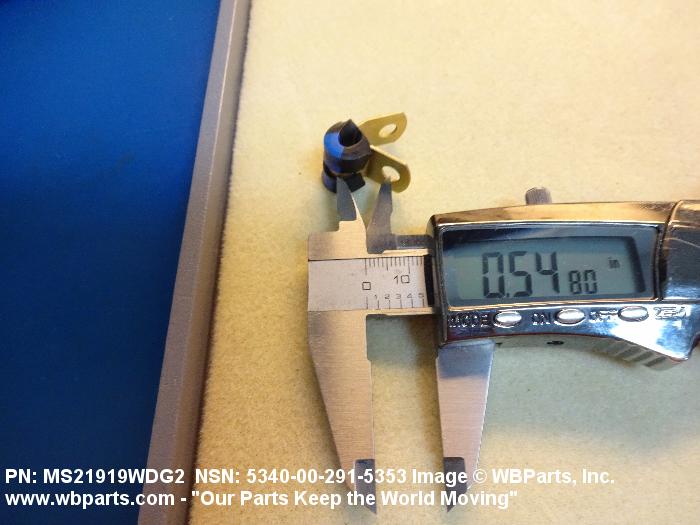

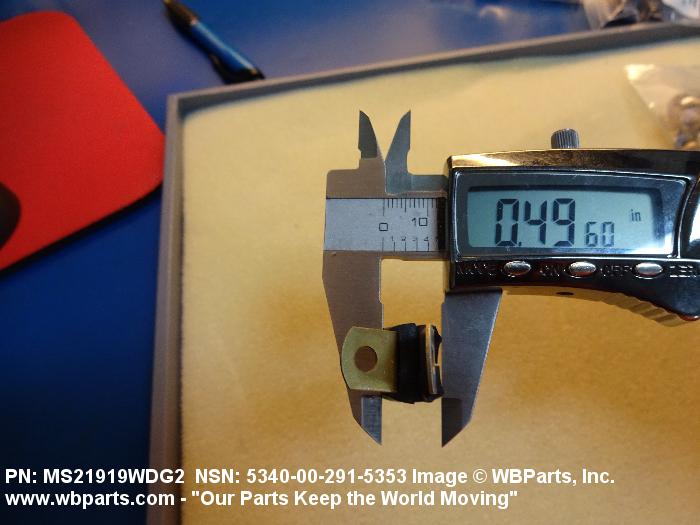

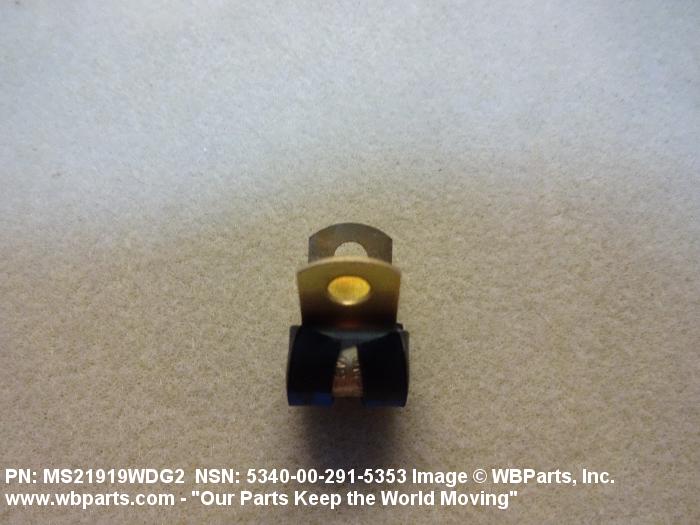

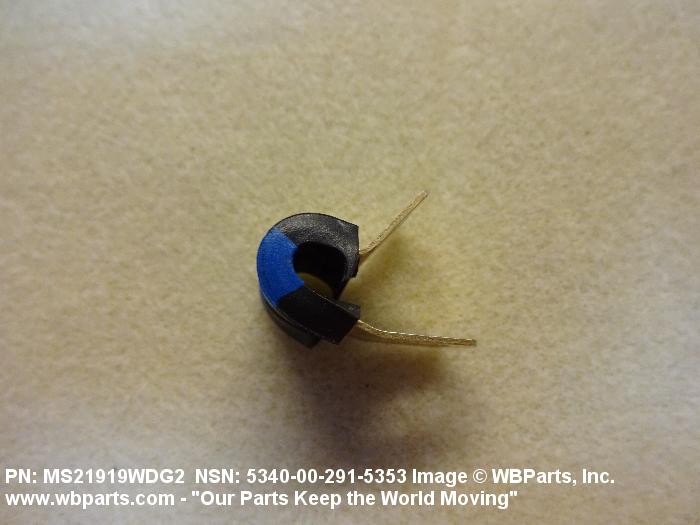

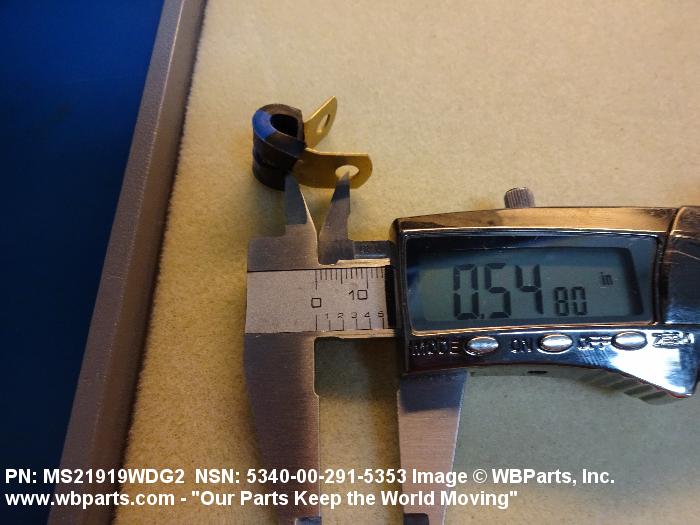

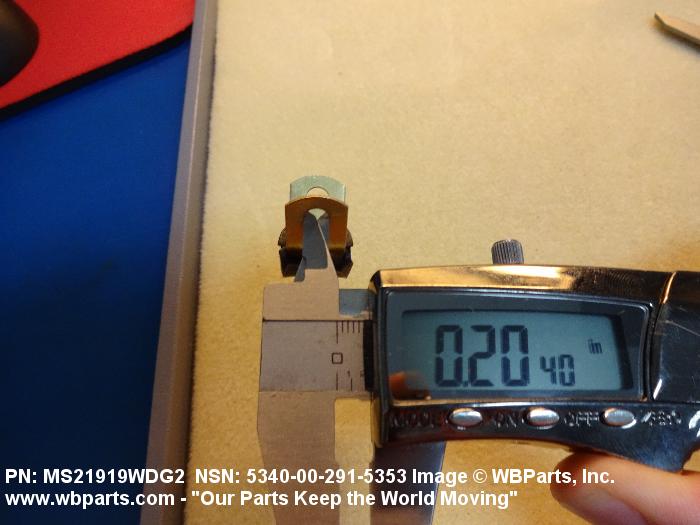

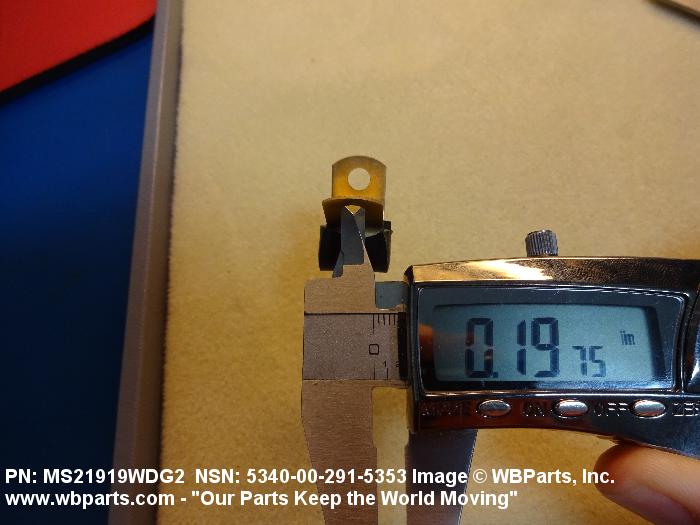

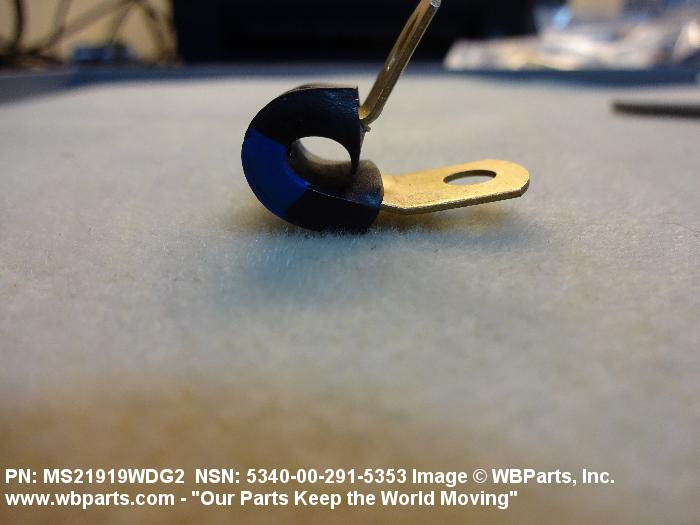

Drawings & Photos | NSN 5340-00-291-5353

Part Number	Request Date	QTY	Origin
AS21919WDG02	2024-11-319	300	United States
5340-00-291-5353	2024-04-92	10	United States
AS21919WDG02	2024-03-67	10	United States
AS21919WDG02	2023-12-349	1	United States
MS21919WDG2	2023-11-314	113	us
MS21919WDG2	2023-10-296	80	United States
5340-00-291-5353	2022-08-241	18898	DIBBS
5340-00-291-5353	2022-07-206	5592	DIBBS
5340-00-291-5353	2022-07-195	5592	DIBBS
5340-00-291-5353	2022-03-79	5833	DIBBS
5340-00-291-5353	2021-09-252	13444	DIBBS
5340-00-291-5353	2021-04-116	9001	DIBBS
5340-00-291-5353	2021-04-105	9001	DIBBS
5340-00-291-5353	2020-03-77	1	DIBBS-RFPs
AS21919WDG2	2019-11-315	11	United States
MS21919WDG2	2019-09-248	250	Sri Lanka
AS21919WDG02	2019-02-42	30	Lebanon
MS21919WDG2	2018-09-257	150	United States
5340-00-291-5353	2018-09-250	150	US
5340-00-291-5353	2017-12-354	2	Malaysia
5340-00-291-5353	2017-08-216	4	Malaysia
5340-00-291-5353	2017-05-128	2	Malaysia
5340-00-291-5353	2017-05-128	2	Malaysia
5340-00-291-5353	2017-02-38	12	Malaysia
AS21919WDG02	2017-01-13	12	Malaysia
5340-00-291-5353	2017-01-13	12	Malaysia
5340-00-291-5353	2017-01-04	20151	DIBBS
5340-00-291-5353	2016-12-342	2	Malaysia
5340-00-291-5353	2016-12-340	2	Malaysia
5340-00-291-5353	2016-11-329	17481	DIBBS
5340-00-291-5353	2016-08-236	100	us
5340-00-291-5353	2016-06-161	13328	DIBBS
MS21919WDG2	2015-10-296	1000	United States
5340-00-291-5353	2015-06-165	25136	DIBBS
5340-00-291-5353	2015-06-156	50	US
MS21919WDG2	2014-09-267	8	US
5340-00-291-5353	2014-08-215	16414	DIBBS
MS21919WDG2	2014-07-209	100	CA
5340-00-291-5353	2014-06-181	1	DIBBS
5340-00-291-5353	2014-06-168	1	DIBBS
5340-00-291-5353	2014-06-167	2891	DIBBS
5340-00-291-5353	2014-06-155	2891	DIBBS
5340-00-291-5353	2013-08-224	180	United States
MS21919WDG2	2013-08-224	180	us
5340-00-291-5353	2013-07-204	31	us
MS21919DG2	2013-04-101	31	us
MS21919DG2	2013-02-42	13246	US
MS21919DG2	2013-01-28	50	US
MS21919WDG2	2012-11-310	66
AS21919WDG2	2012-06-166	1	US
5340-00-291-5353	2012-05-132	8	US
5340-00-291-5353	2011-12-364	570	United States
MS21919WDG2	2011-05-126	1779	US
5340-00-291-5353	2010-07-190	10	US
5340-00-291-5353	2010-01-19	2	United States
MS21919WDG2	2009-10-280	2	United States
5340-00-291-5353	2009-07-208	20	US
MS21919WDG2	2009-01-26	50	US
AS21919WDG02	2008-12-352	50	US
MS21919DG2	2008-12-350	40	US
AS21919WDG02	2008-05-136	500	US

Cross Reference | NSN 5340-00-291-5353

Part Number	Cage Code	Manufacturer
2822624	001JK	EMBRAER S/A
2822624	FB459	EMBRAER AVIATION INTERNATIONAL
2822624	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
4116200-061	05869	RAYTHEON COMPANY DBA RAYTHEON
AS21919WDG02	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21919WDG2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
JM44LC33WD2	22175	J & M PRODUCTS, INC.
MS21919DG2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919WDG2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-291-5353

Compare

Related Products | NSN 5340-00-291-5353

5340-00-291-5355, 5340-00-291-5358, 5340-00-291-5361, 5340-00-291-5366, 5340-00-291-5367

Technical Data | NSN 5340-00-291-5353

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BAND RUBBER CUSHION
STYLE DESIGNATOR	A5 OFFSET MOUNT
OVERALL WIDTH	0.497 INCHES NOMINAL
MATERIAL THICKNESS	0.318 INCHES MINIMUM AND 0.323 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.360 INCHES NOMINAL
DISTANCE FROM LOOP CENTER TO TONGUE END	0.548 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.110 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	ANY ACCEPTABLE
SPECIAL FEATURES	FURNISHED WITH WEDGE
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND A CLASS
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21919WDG2

Restrictions/Controls & Freight Information | NSN 5340-00-291-5353

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-291-5353

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	HL	TG:TH-1H SUPT HELICOPTER
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
