NSN 5340-00-290-7607 HC110B, 00-290-7607, 002907607
Product Details | CLAMPING CATCH
5340-00-290-7607 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Part Alternates: HC110B, 5340-00-290-7607, 00-290-7607, 5340002907607, 002907607
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 SEP 1973 | 00-290-7607 | 26525 ( CATCH, CLAMPING ) |
Drawings & Photos | NSN 5340-00-290-7607
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-290-7607
Technical Data | NSN 5340-00-290-7607
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

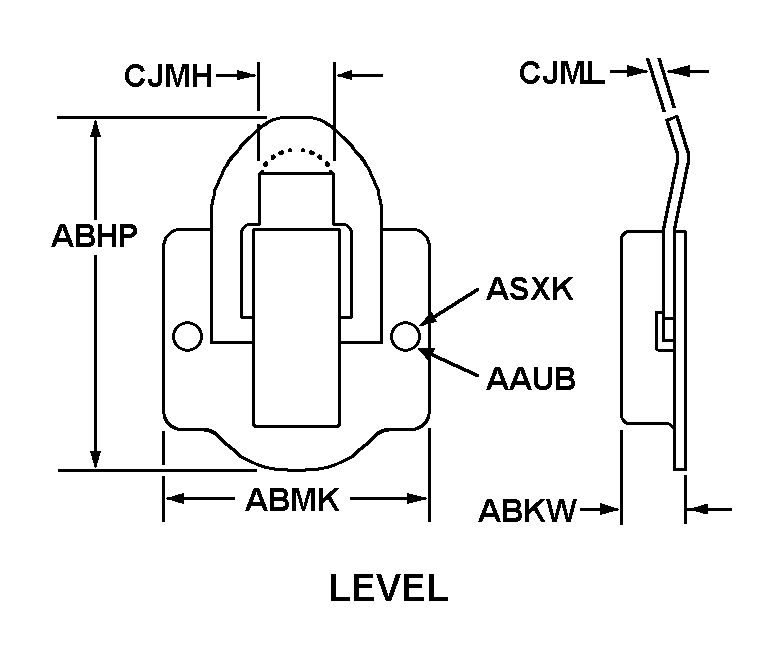

| STYLE DESIGNATOR | B9 LEVER |
| HOLE DIAMETER | 0.143 INCHES NOMINAL |
| HOLE QUANTITY | 2 |
| CATCH STRIKE STYLE | R3 SURFACE |
| OVERALL LENGTH | 1.250 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |
| SURFACE HOLE DIAMETER | 0.143 INCHES NOMINAL |
| HEIGHT | 0.203 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| SURFACE HOLE QUANTITY | 2 |
| MANUFACTURERS CODE | 98003 |
| DESIGN CONTROL REFERENCE | HC110B |
Restrictions/Controls & Freight Information | NSN 5340-00-290-7607
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
