Product Details | LOOP CLAMP

5340-00-290-3612 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: 7393, 739-3, 5340-00-290-3612, 00-290-3612, 5340002903612, 002903612

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-290-3612

Drawings & Photos | NSN 5340-00-290-3612


Cross Reference | NSN 5340-00-290-3612

Part Number Cage Code Manufacturer
739-3 83930 TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-290-3612

Technical Data | NSN 5340-00-290-3612

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024 BAND RUBBER SYNTHETIC CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-362 FED SPEC SINGLE MATERIAL RESPONSE BAND

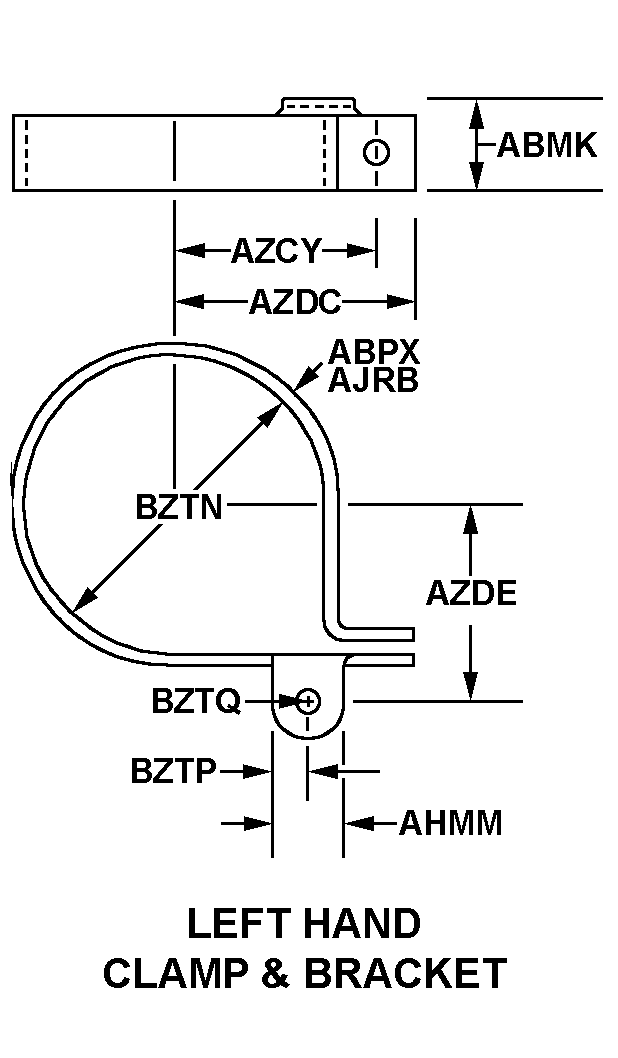

STYLE DESIGNATOR A15A LEFT HAND CLAMP AND BRACKET
OVERALL WIDTH 0.500 INCHES NOMINAL
MATERIAL THICKNESS 0.040 INCHES NOMINAL
LUG WIDTH 0.469 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE 0.422 INCHES NOMINAL
DISTANCE FROM LOOP CENTER TO TONGUE END 0.641 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE 0.453 INCHES NOMINAL
LOOP INSIDE DIAMETER 0.188 INCHES NOMINAL
DISTANCE FROM OUTER EDGE OF LUG TO HOLE CENTER 0.234 INCHES NOMINAL
LUG HOLE DIAMETER 0.173 INCHES NOMINAL
TONGUE HOLE TYPE ROUND, UNTHREADED
DIAMETER 0.173 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5340-00-290-3612

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-00-290-3612

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
