NSN 5340-00-286-9421 MS21919WDG13, AS21919WDG13, TA1718WD13X

Product Details | LOOP CLAMP

5340-00-286-9421 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919WDG13, AS21919WDG13, TA1718WD13X, 10117315, 2091401-15, 3696440116 , 821VN0623, 5340-00-286-9421, 00-286-9421, 5340002869421, 002869421, 209140115

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-286-9421	17532 ( CLAMP, LOOP )

Drawings & Photos | NSN 5340-00-286-9421

Part Number	Request Date	QTY	Origin
AS21919WDG13	2024-11-319	10	United States
AS21919WDG13	2023-12-340	8	United States
5340-00-286-9421	2022-03-87	460	US
5340-00-286-9421	2021-12-363	13893	DIBBS
5340-00-286-9421	2020-11-314	9464	DIBBS
5340-00-286-9421	2020-11-306	9464	DIBBS
5340-00-286-9421	2020-01-13	160	Taiwan
MS21919WDG13	2019-09-248	250	Sri Lanka
MS21919WDG13	2019-02-32	50	United States
5340-00-286-9421	2019-01-23	33	India
5340-00-286-9421	2019-01-06	10019	DIBBS
5340-00-286-9421	2018-10-277	5369	DIBBS
5340-00-286-9421	2018-08-241	1848	DIBBS
5340-00-286-9421	2017-11-334	20818	DIBBS
MS21919WDG13	2017-10-298	50	us
5340-00-286-9421	2017-10-298	5000	DIBBS
5340-00-286-9421	2017-10-292	5000	DIBBS
5340-00-286-9421	2017-06-180	480	DIBBS
AS21919WDG13	2016-12-354	48	United States
AS21919WDG13	2016-11-334	100	United States
5340-00-286-9421	2015-11-305	1	DIBBS
5340-00-286-9421	2015-10-289	50	DIBBS
5340-00-286-9421	2015-10-287	50	DIBBS
5340-00-286-9421	2015-10-277	50	DIBBS
5340-00-286-9421	2015-09-273	50	DIBBS
MS21919WDG13	2015-08-224	100	Egypt
5340-00-286-9421	2015-07-208	20	DIBBS
5340-00-286-9421	2015-07-197	20	DIBBS
5340-00-286-9421	2015-05-146	10	DIBBS
5340-00-286-9421	2015-05-134	10	DIBBS
5340-00-286-9421	2015-04-117	4	DIBBS
5340-00-286-9421	2015-04-106	4	DIBBS
5340-00-286-9421	2015-04-93	17	DIBBS
5340-00-286-9421	2015-03-82	17	DIBBS
5340-00-286-9421	2014-12-346	10	DIBBS
5340-00-286-9421	2014-12-335	10	DIBBS
5340-00-286-9421	2014-10-293	2	DIBBS
5340-00-286-9421	2014-10-282	2	DIBBS
5340-00-286-9421	2014-08-217	11	DIBBS
5340-00-286-9421	2014-07-198	926	DIBBS
5340-00-286-9421	2014-05-149	1	DIBBS
5340-00-286-9421	2014-05-149	183	DIBBS
AS21919WDG13	2013-06-162	3	United States
MS21919WDG13	2012-11-310	50
5340-00-286-9421	2012-04-114	2	MANUAL
MS21919WDG13	2012-04-114	2	Taiwan
MS21919WDG13	2012-04-111	25	United States
5340-00-286-9421	2011-03-68	4582	MANUAL
MS21919WDG13	2011-02-41	14	Italy
MS21919WDG13	2010-09-272	39	United States
5340-00-286-9421	2010-09-254	25	US
5340-00-286-9421	2009-04-118	3	US
5340-00-286-9421	2009-02-50	100	China
AS21919WDG13	2008-05-136	500	US
MS21919WDG13	2007-12-352	25	United States

Cross Reference | NSN 5340-00-286-9421

Part Number	Cage Code	Manufacturer
2091401-15	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
3696440116	B0897	FN HERSTAL SA
821VN0623	A0199	OTO MELARA SPA
AS21919WDG13	0ZBE8	TRIMAN INDUSTRIES INC
AS21919WDG13	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21919WDG13	0178B	INDRA SISTEMAS SA - ARANJUEZ
MS21919WDG13	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TA1718WD13X	84971	KIRKHILL-TA CO. DBA TA DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-286-9421

Compare

Related Products | NSN 5340-00-286-9421

5340-00-286-9422, 5340-00-286-9423, 5340-00-286-9424, 5340-00-286-9425, 5340-00-286-9426

Technical Data | NSN 5340-00-286-9421

Characteristic	Specifications
MATERIAL	RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CHROMATE BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	M1L-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT

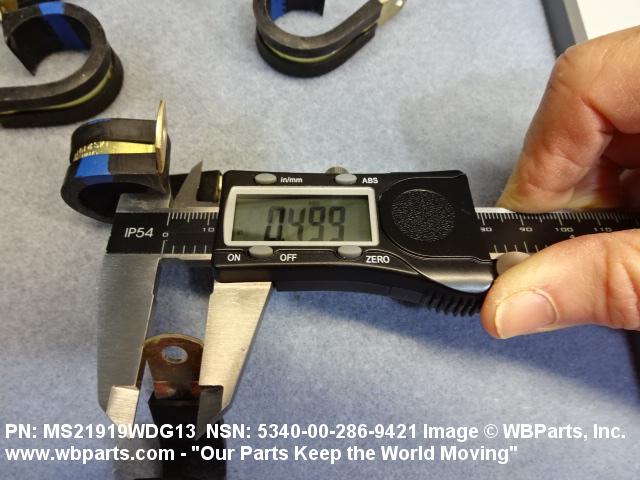

OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM

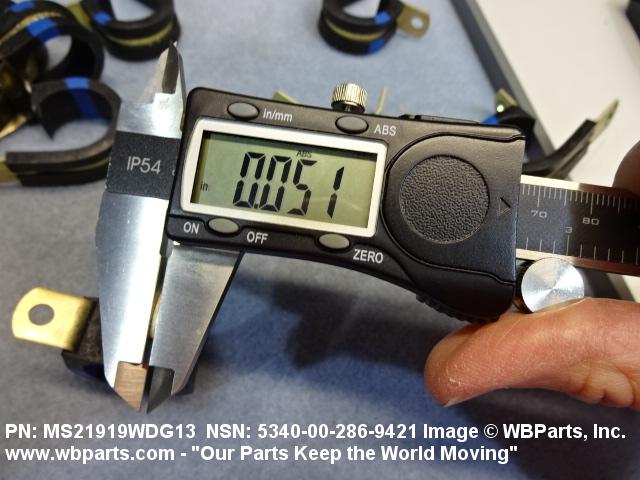

MATERIAL THICKNESS	0.050 INCHES NOMINAL

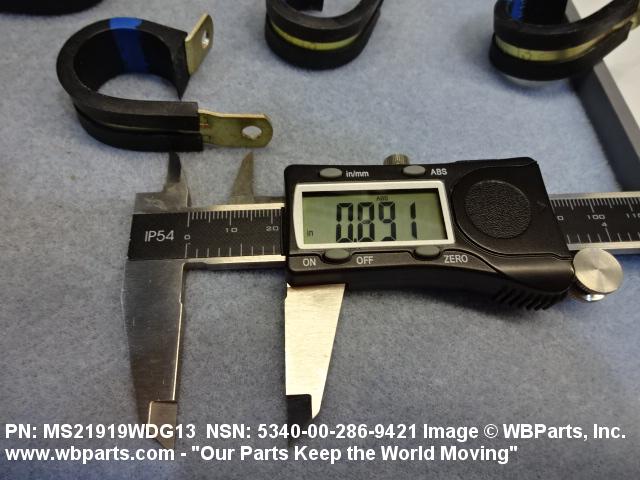

CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.862 INCHES MINIMUM AND 0.892 INCHES MAXIMUM

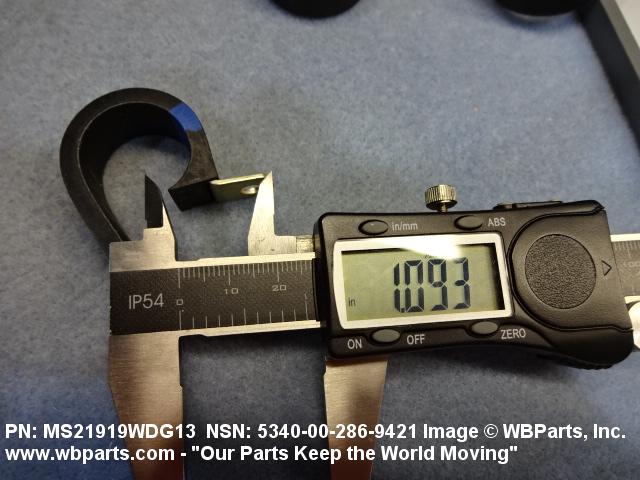

DISTANCE FROM LOOP CENTER TO TONGUE END	1.095 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.798 INCHES MINIMUM AND 0.828 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED

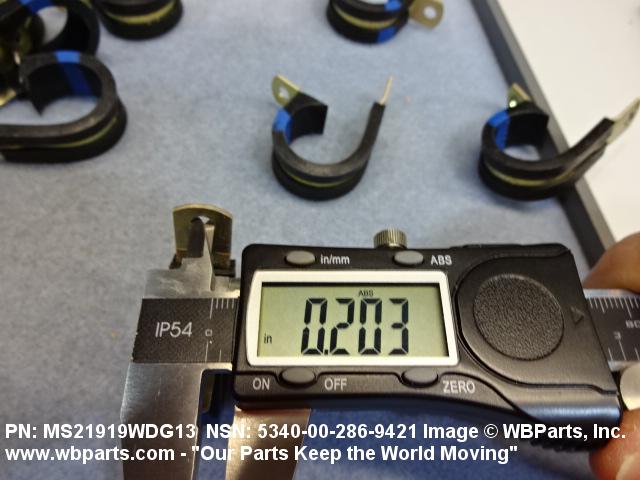

DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
SPECIAL FEATURES	WEDGE TYPE CUSHION CONSTRUCTION
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND A CLASS
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY SPECIAL FEATURES

Restrictions/Controls & Freight Information | NSN 5340-00-286-9421

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-286-9421

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
