NSN 5340-00-251-7971 MS357911, MS35791-1, CD1205K3 1-2
Product Details | BAIL HANDLE
5340-00-251-7971 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: MS357911, MS35791-1, CD1205K3 1-2, CD1205K312, 1205, 1205K312, 1205K3-1-2, 5585734HPIECE87, 5340-00-251-7971, 00-251-7971, 5340002517971, 002517971
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-251-7971 | 20353 ( HANDLE, BAIL ) |

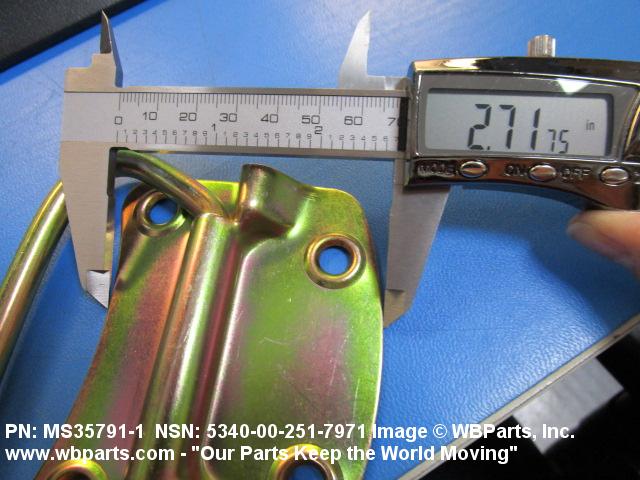

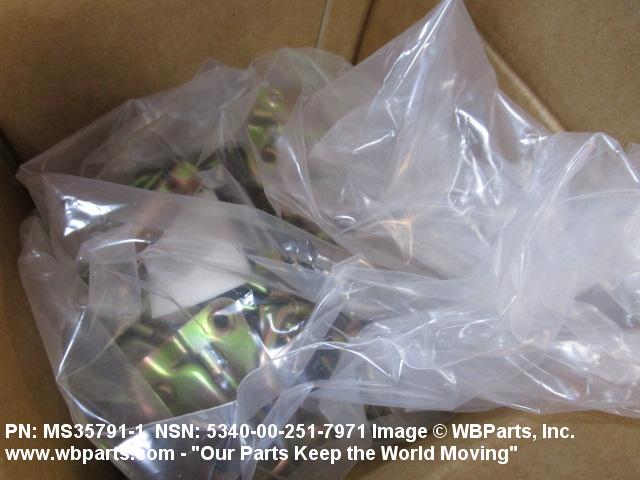

Drawings & Photos | NSN 5340-00-251-7971
Demand History | NSN 5340-00-251-7971
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-251-7971 | 2023-09-256 | 50 | US |
| 5340-00-251-7971 | 2022-12-355 | 1000 | US |
| 5340-00-251-7971 | 2022-12-350 | 500 | US |
| 5340-00-251-7971 | 2022-12-350 | 9000 | US |
| 5340-00-251-7971 | 2021-05-124 | 130 | us |
| MS357911 | 2021-03-84 | 18 | United States |
| 5340-00-251-7971 | 2020-10-288 | 100 | US |
| 5340-00-251-7971 | 2020-01-20 | 6449 | DIBBS |
| MS357911 | 2019-03-78 | 8 | United States |
| 5340-00-251-7971 | 2018-05-150 | 3404 | DIBBS |
| 5340-00-251-7971 | 2017-09-262 | 1 | DIBBS-KIT |
| MS35791-1 | 2017-09-262 | 1 | |
| 5340-00-251-7971 | 2016-11-314 | 3700 | DIBBS |
| 5340-00-251-7971 | 2016-11-306 | 3700 | DIBBS |
| 5340-00-251-7971 | 2016-01-05 | 6 | US |
| 5340-00-251-7971 | 2015-10-301 | 3770 | DIBBS |
| MS357911 | 2014-07-203 | 814 | US |
| 5340-00-251-7971 | 2013-10-289 | 2546 | DIBBS |
| MS357911 | 2013-05-149 | 6 | US |
| 5340-00-251-7971 | 2012-06-181 | 1659 | DIBBS |
| 5340-00-251-7971 | 2012-06-163 | 4000 | DIBBS |
| 5340-00-251-7971 | 2012-01-20 | 3785 | DIBBS |
| 5340-00-251-7971 | 2011-10-287 | 1916 | DIBBS |
| 5340-00-251-7971 | 2011-10-278 | 1752 | DIBBS |
| 5340-00-251-7971 | 2011-04-112 | 2000 | US |
| 5340-00-251-7971 | 2011-04-111 | 1000 | US |
| 5340-00-251-7971 | 2010-12-350 | 1788 | DIBBS |
| 5340-00-251-7971 | 2010-10-302 | 2252 | DIBBS |
| 5340-00-251-7971 | 2009-08-230 | 1072 | us |
| 5340-00-251-7971 | 2008-12-350 | 2800 | DIBBS |
Cross Reference | NSN 5340-00-251-7971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1205 | 87541 | STANLEY HARDWARE CO INC |
| 1205K3-1-2 | 14557 | STANLEY WORKS THE |
| 5585734HPIECE87 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| CD1205K3 1-2 | 14557 | STANLEY WORKS THE |
| MS35791-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35791-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-251-7971
Related Products | NSN 5340-00-251-7971
Technical Data | NSN 5340-00-251-7971
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

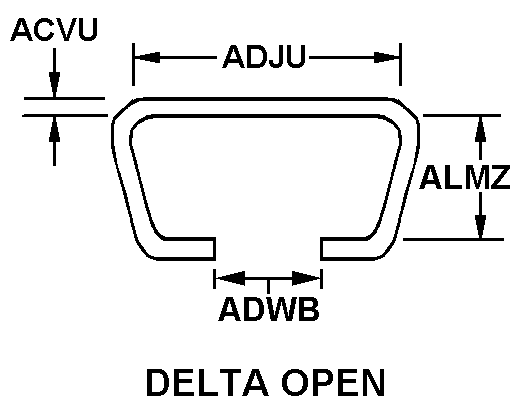

| STYLE DESIGNATOR | A15 DELTA OPEN |

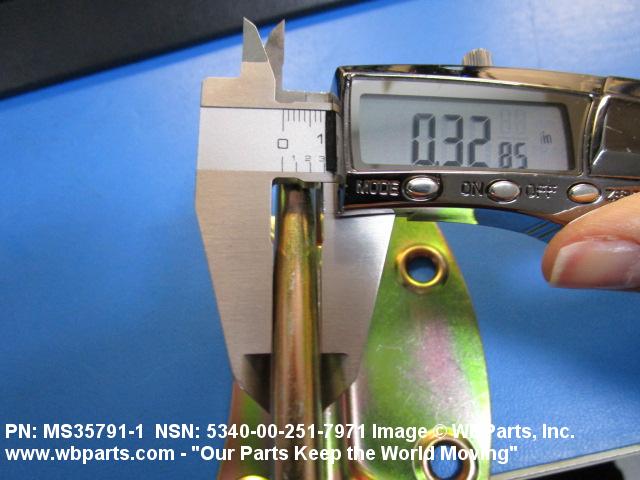

| STOCK DIAMETER | 0.340 INCHES NOMINAL |

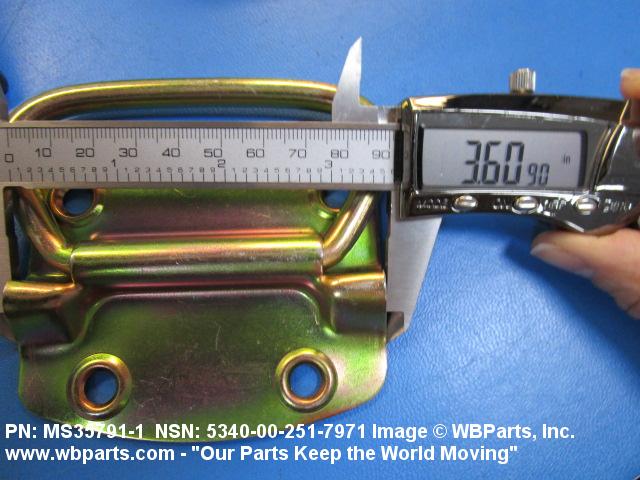

| INSIDE LENGTH | 3.620 INCHES NOMINAL |
| DISTANCE BETWEEN ENDS | 2.750 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.410 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |
| MOUNTING PLATE STYLE | R2 FLAT |
| HOLE DIAMETER | 0.193 INCHES NOMINAL |
| PLATE WIDTH | 2.940 INCHES NOMINAL |
| PLATE LENGTH | 3.620 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | W/S: AIRCRAFT, EAGLE F-15; HELICOPTER, MH-53E; DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP); HELICOPTER, USCG SEARCH AND RESCUE, HH-60J; HELICOPTER, ADVANCE ATTACK, AH-1W; HELICOPTER SEARCH AND RESCUE, HH-60H; SUPPORT EQUIPMENT, B-1 AIRCRAFT; HELICOPTER, CARRIER BASED ASW, SH-60F; SUPPORT EQUIPMENT (SE), B-2 BOMBER; AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02M JUL83) (AN/UYQ-3A) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35791-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-251-7971
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | Y | Personnel services, Military Service Records, files, or other information subject to the Privacy Act of 1974. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-251-7971
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
